Back panel, M4300 series full 10G models
Model M4300-16X

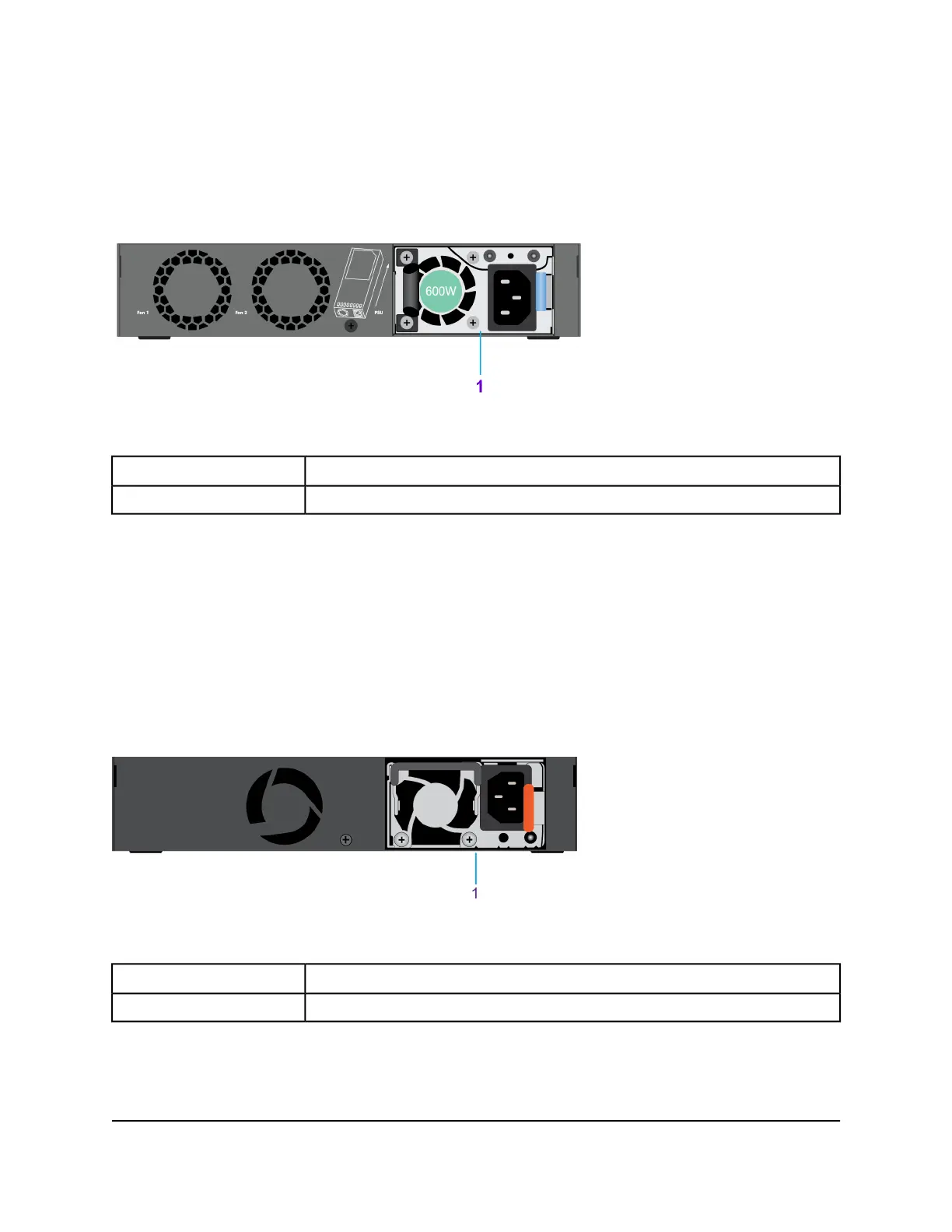

The following figure illustrates the back panel of half-width model M4300-16X.
Figure 5. Back panel model M4300-16X
DescriptionNumber
PSU with AC connector1
From left to right, the back panel of model M4300-16X provides the following
components:
•
Fixed fans for front-to-back air flow.
•
Modular bay in which either an APS299W or APS600W power supply unit (PSU) is
installed.
Model M4300-8X8F
The following figure illustrates the back panel of half-width model M4300-8X8F.
Figure 6. Back panel model M4300-8X8F
DescriptionNumber
PSU with AC connector1
Hardware Installation Guide19Hardware Overview
M4300 Intelligent Edge Series Fully Managed Stackable Switches
