Hardware descriptions, M4300 series full
10G models
This section describes the switch hardware features for the following full 10G models:
•
M4300-16X. Switch model with sixteen 10G PoE+ copper ports
•
M4300-8X8F. Switch model with eight 10G copper ports and eight 10G fiber ports
•
M4300-12X12F. Switch model with twelve 10G copper ports and twelve 10G fiber
ports
•
M4300-24X24F. Switch model with twenty-four 10G copper ports and twenty-four
10G fiber ports
Front panel, M4300 series full 10G models
The full 10G models provide either a port configuration of sixteen independent
10GBASE-T autosensing ports or a port configuration of eight, twelve, or twenty-four
independent 10GBASE-T autosensing ports and eight, twelve, or twenty-four
independent 10GBASE-X SFP+ ports.
Model M4300-16X

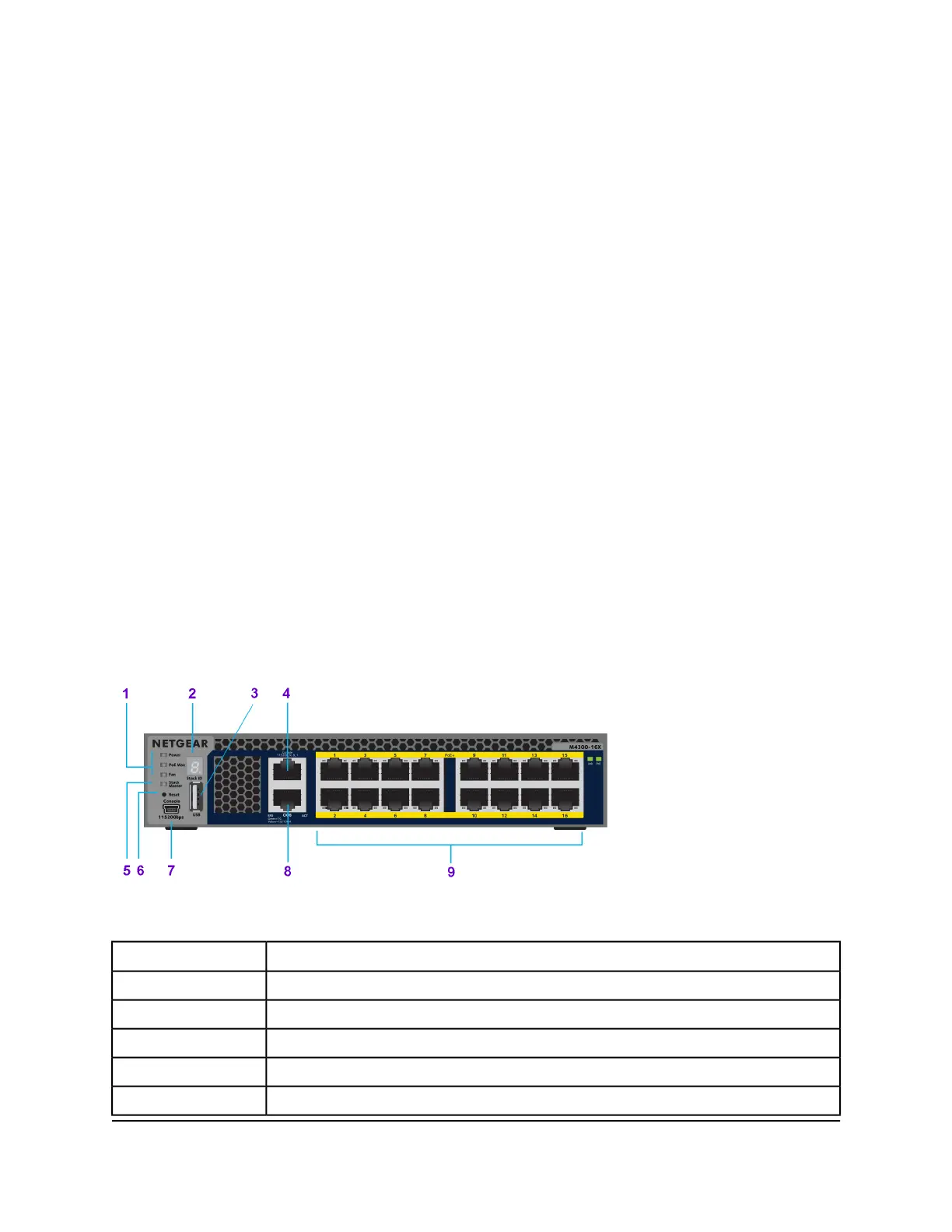

The following figure illustrates the front panel of half-width model M4300-16X.
Figure 1. Front panel model M4300-16X
DescriptionNumber
Power, PoE Max, and Fan LEDs1
Stack ID LED2
USB port3
RJ-45 RS232 console port4
Stack Master LED5
Hardware Installation Guide15Hardware Overview
M4300 Intelligent Edge Series Fully Managed Stackable Switches
