DescriptionNumber
Reset button6
Mini USB console port7
OOB port with port LEDs8
10GBASE-T PoE+ ports, each with two port LEDs. The left port LED indicates the
link status. The right port LED indicates the PoE status.
9
Model M4300-8X8F

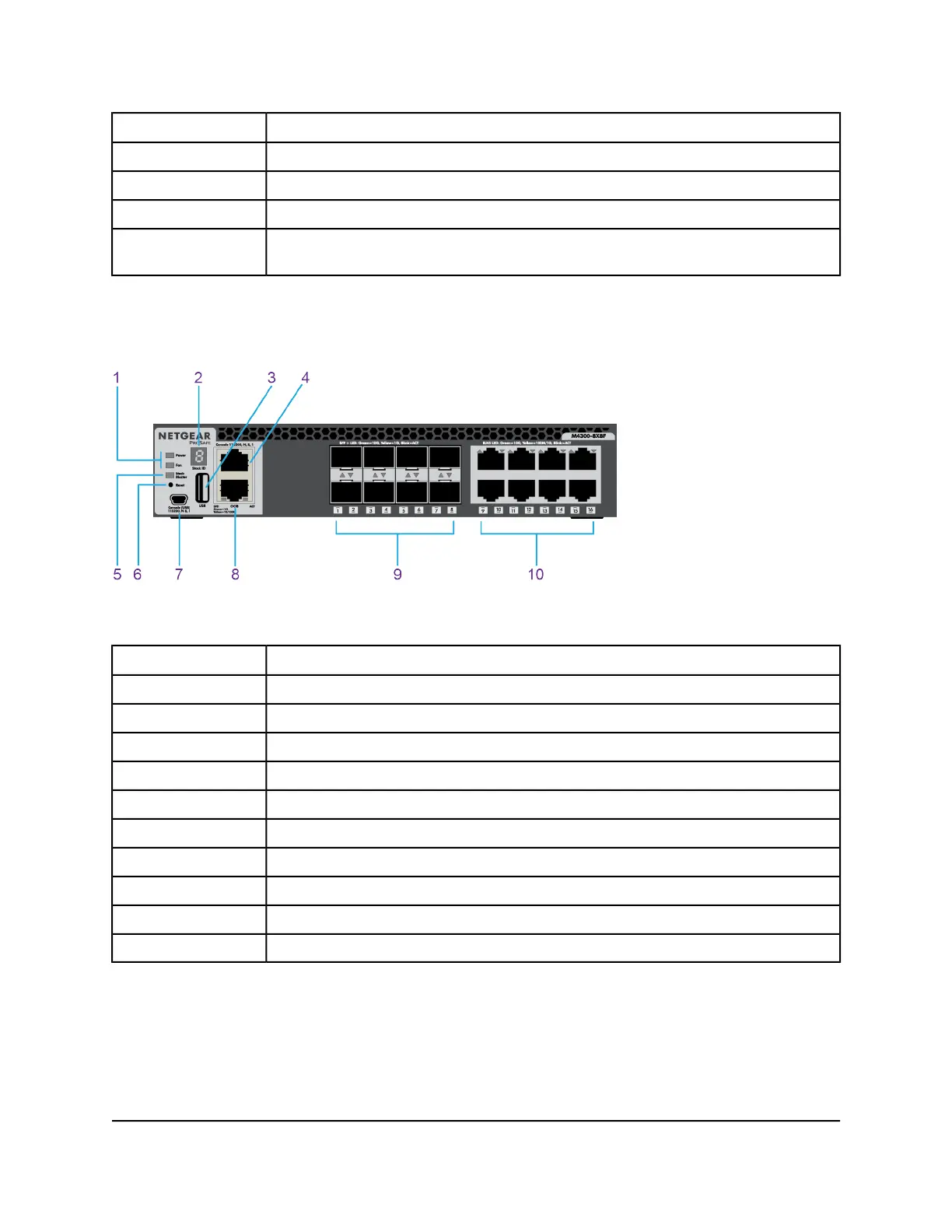

The following figure illustrates the front panel of half-width model M4300-8X8F.
Figure 2. Front panel model M4300-8X8F
DescriptionNumber
Power and Fan LEDs1
Stack ID LED2
USB port3
RJ-45 RS232 console port4
Stack Master LED5
Reset button6
Mini USB console port7
OOB port with port LEDs8
10GBASE-X SFP+ ports, each with a port LED9
10GBASE-T ports, each with a port LED10
Hardware Installation Guide16Hardware Overview
