Hardware descriptions, M4300 series 1G
models with 10G uplinks
This section describes the switch hardware features for the following 1G models with
10G uplinks:
•
M4300-28G. Switch model with twenty-four 1G copper ports, two 10G copper ports,
and two 10G fiber ports
•
M4300-28G-POE+. Switch model with twenty-four 1G copper PoE+ ports, two 10G
copper ports, and two 10G fiber ports
•
M4300-52G. Switch model with forty-eight 1G copper ports, two 10G copper ports,
and two 10G fiber ports
•
M4300-52G-POE+. Switch model with forty-eight 1G copper PoE+ ports, two 10G
copper ports, and two 10G fiber ports
Front panel, M4300 series 1G models with 10G uplinks
The 1G models with 10G uplinks provide twenty-four or forty-eight 1000BASE-T
autosensing ports (depending on the model, either regular, non-PoE, ports or PoE+
ports), two dedicated 10GBASE-T ports, and two dedicated 10GBASE-X SFP+ ports.

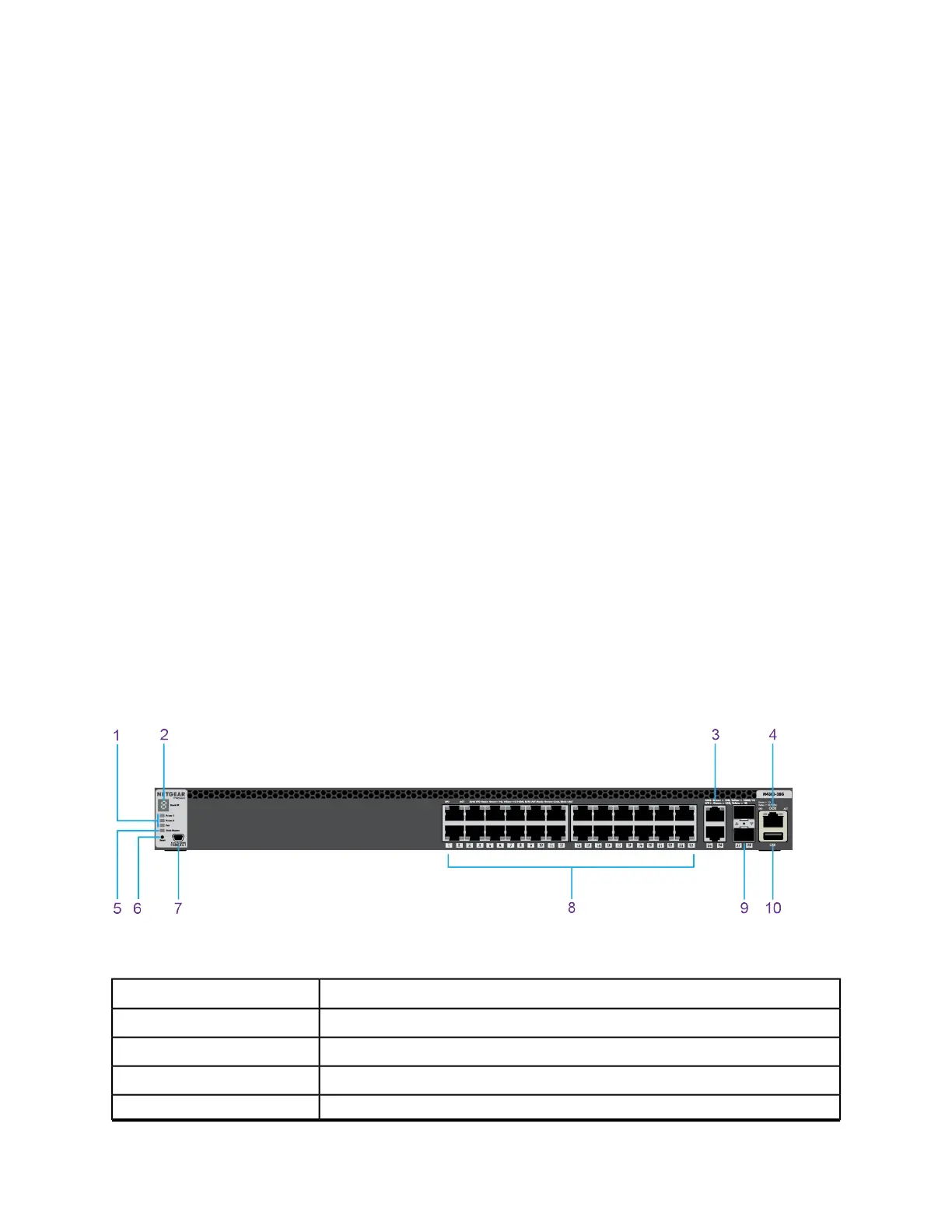

The following figure illustrates the front panel of full-width model M4300-28G.
Model M4300-28G
Figure 9. Front panel model M4300-28G
DescriptionNumber
Power 1, Power 2, and Fan LEDs1
Stack ID LED2
10GBASE-T ports, each with a port LED3
OOB port with port LEDs4
Hardware Installation Guide23Hardware Overview
M4300 Intelligent Edge Series Fully Managed Stackable Switches
