Hardware descriptions, M4300 series full
10G models with RJ45/SFP+ combo ports
This section describes the switch hardware features for the following models:
•
M4300-24X. Switch model with twenty copper RJ45 ports and four 10G RJ45/SFP+
combo ports in a half-width chassis
•
M4300-24XF. Switch model with twenty-two fiber SFP+ ports and two 10G
RJ45/SFP+ combo ports in a half-width chassis
•
M4300-48X. Switch model with forty-four copper RJ45 ports and four 10G
RJ45/SFP+ combo ports in a full-width chassis
•
M4300-48XF. Switch model with forty-six fiber SFP+ ports and two 10G RJ45/SFP+
combo ports in a full-width chassis
Front panel, M4300 series full 10G models with RJ45/SFP+
combo ports
The full 10G models with RJ45/SFP+ combo ports provide either a port configuration
of twenty or forty-four independent 10GBASE-T autosensing ports and four 10G
RJ45/SFP+ combo ports or a port configuration of twenty-two or forty-six independent
10GBASE-X SFP+ ports and two 10G RJ45/SFP+ combo ports.
Model M4300-24X

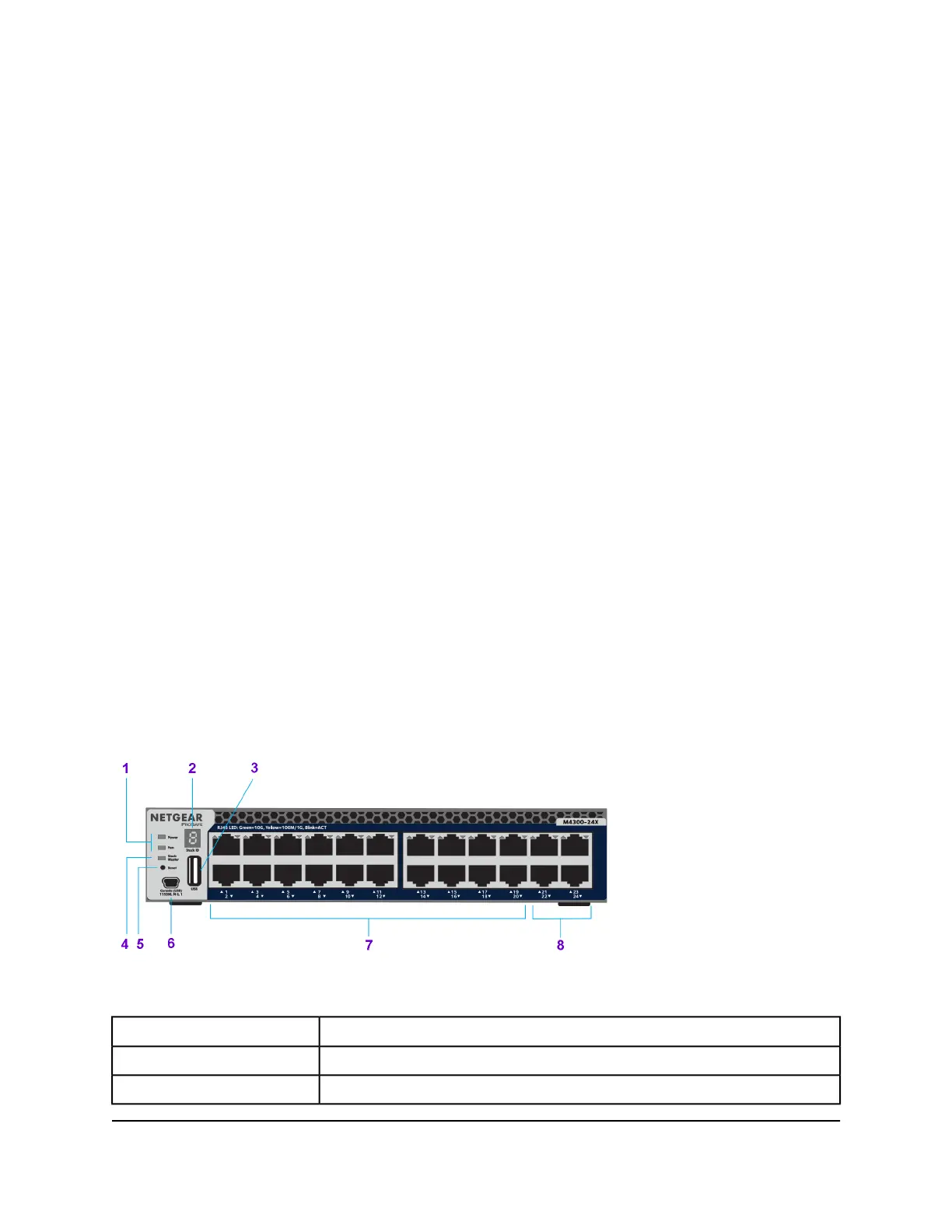

The following figure illustrates the front panel of half-width model M4300-24X.
Figure 15. Front panel model M4300-24X
FigureNumber
Power and Fan LEDs1
Stack ID LED2
Hardware Installation Guide31Hardware Overview
M4300 Intelligent Edge Series Fully Managed Stackable Switches
