FigureNumber
USB port3
Stack Master LED4
Reset button5
Mini USB console port6
10GBASE-T ports, each with a port LED7
10GBASE-T RJ-45 combo ports (21, 22, 23, and 24), each with a port LED
(the corresponding 10GBASE-X SFP+ combo ports are on the back panel)
8
Model M4300-24XF

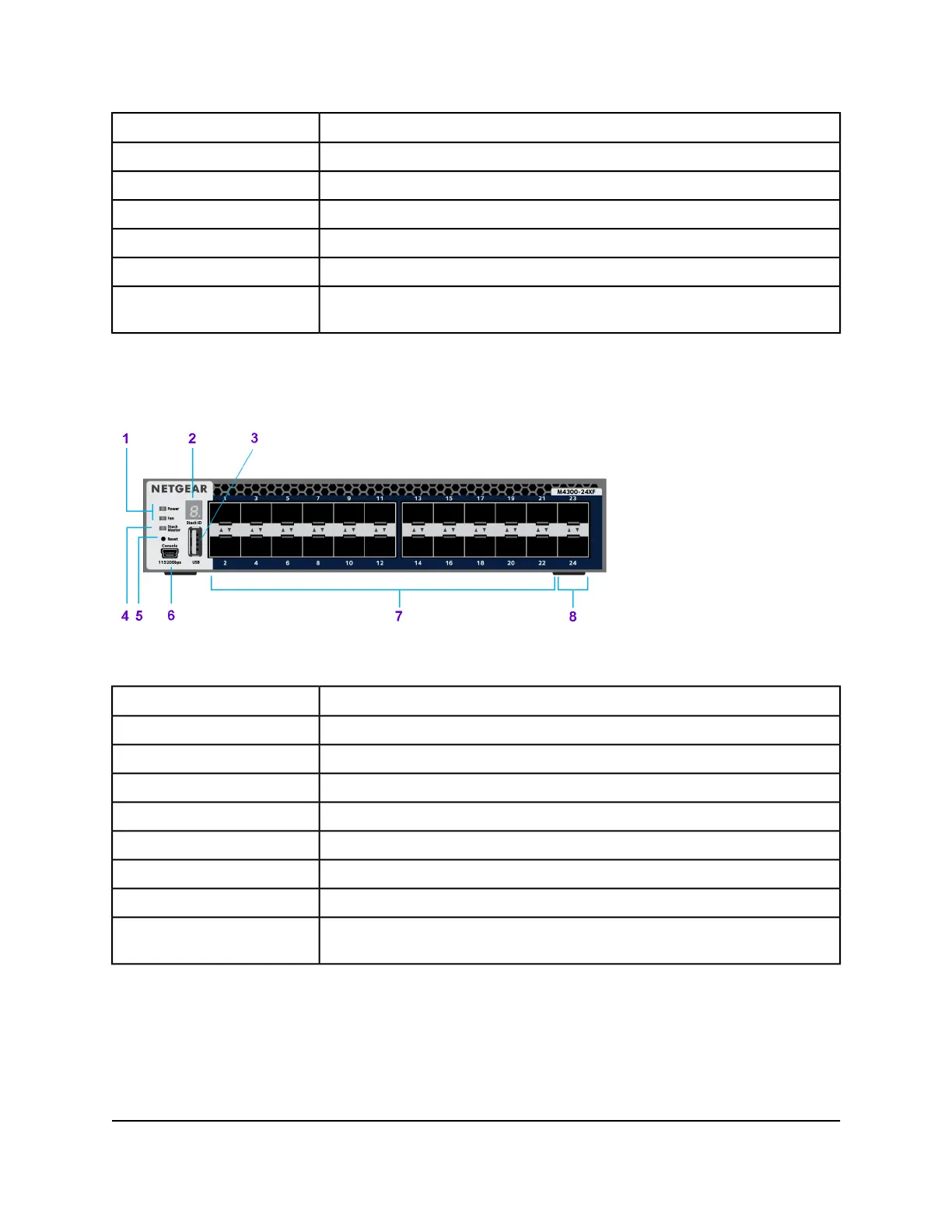

The following figure illustrates the front panel of half-width model M4300-24XF.
Figure 16. Front panel model M4300-24XF
FigureNumber
Power and Fan LEDs1
Stack ID LED2
USB port3
Stack Master LED4
Reset button5
Mini USB console port6
10GBASE-X SFP+ ports, each with a port LED7
10GBASE-X SFP+ combo ports (23 and 24), each with a port LED (the
corresponding 10GBASE-T RJ-45 combo ports are on the back panel)
8
Hardware Installation Guide32Hardware Overview
M4300 Intelligent Edge Series Fully Managed Stackable Switches
