Model M4300-48X

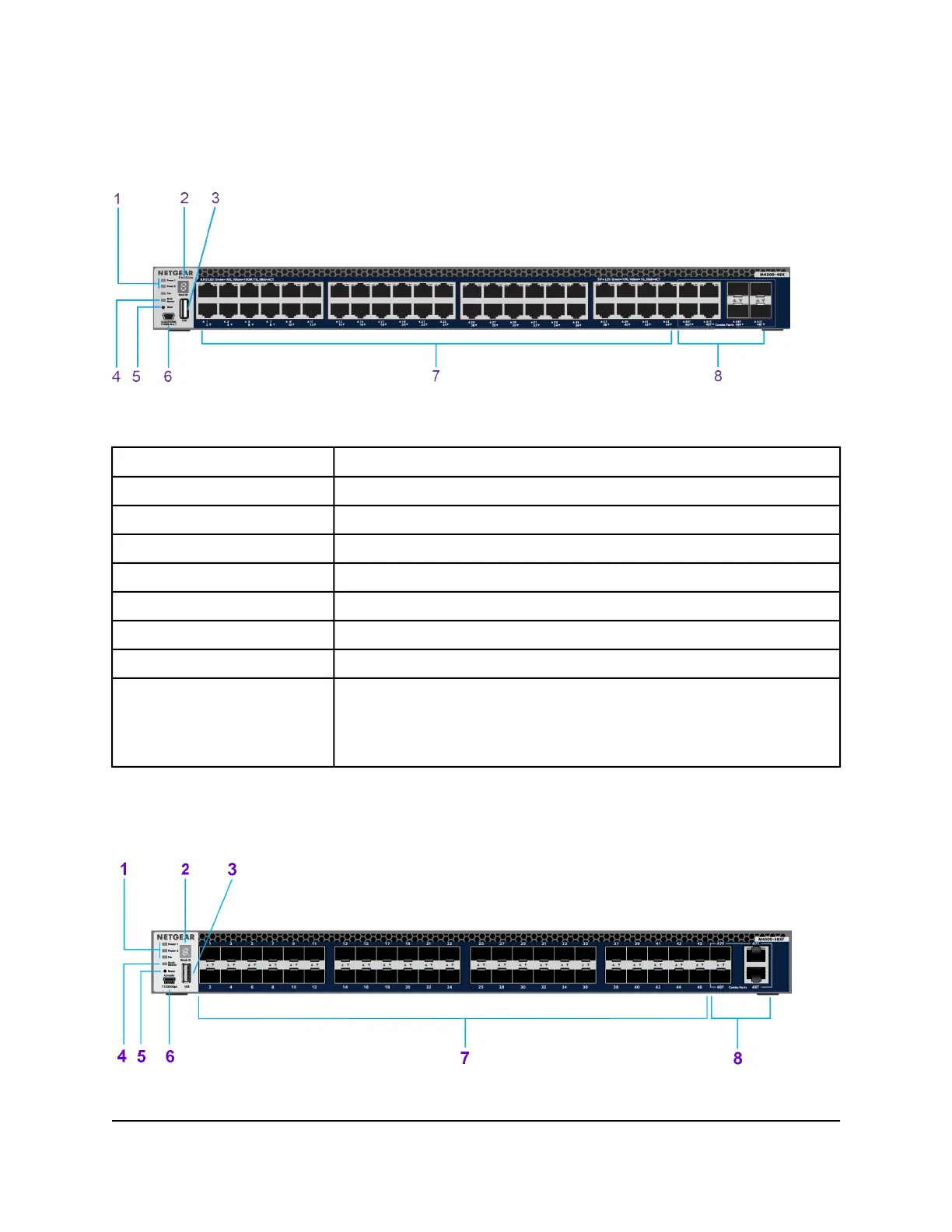

The following figure illustrates the front panel of full-width model M4300-48X.
Figure 17. Front panel model M4300-48X
DescriptionNumber
Power 1, Power 2, and Fan LEDs1
Stack ID LED2
USB port3
Stack Master LED4
Reset button5
Mini USB console port6
10GBASE-T ports, each with a port LED7
Combo ports, each with a port LED:8
Ports 45T, 46T, 47T, and 48T are 10GBASE-T ports
Ports 45F, 46F, 47F, and 48F 10GBASE-X SFP+ ports
Model M4300-48XF
The following figure illustrates the front panel of full-width model M4300-48XF.
Figure 18. Front panel model M4300-48XF
Hardware Installation Guide33Hardware Overview
