DescriptionNumber
Stack Master LED5
Reset button6
Mini USB console port7
1000BASE-T ports, each with a port LED8
10GBASE-X SFP+ ports, each with a port LED9
USB port10
Model M4300-28G-POE+
Model M4300-28G-POE+ supports PoE+ on ports 1 through 24. The following figure

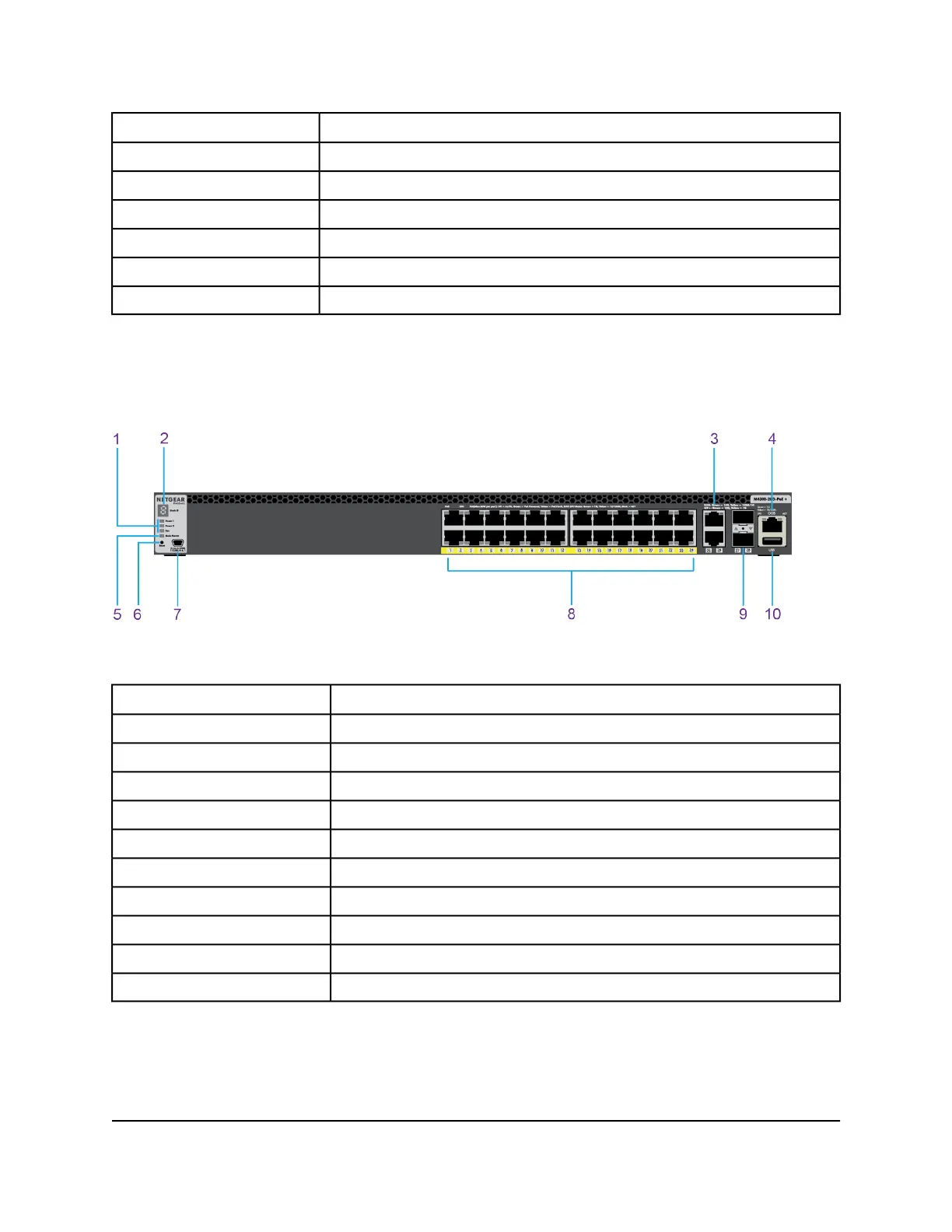

illustrates the front panel of full-width model M4300-28G-POE+.
Figure 10. Front panel model M4300-28G-POE+
DescriptionNumber
Power 1, Power 2, and Fan LEDs1
Stack ID LED2
10GBASE-T ports, each with a port LED3
OOB port with port LEDs4
Stack Master LED5
Reset button6
Mini USB console port7
1000BASE-T PoE+ ports, each with two port LEDs8
10GBASE-X SFP+ ports, each with a port LED9
USB port10
