Model M4300-52G
The following figure illustrates the front panel of full-width model M4300-52G.

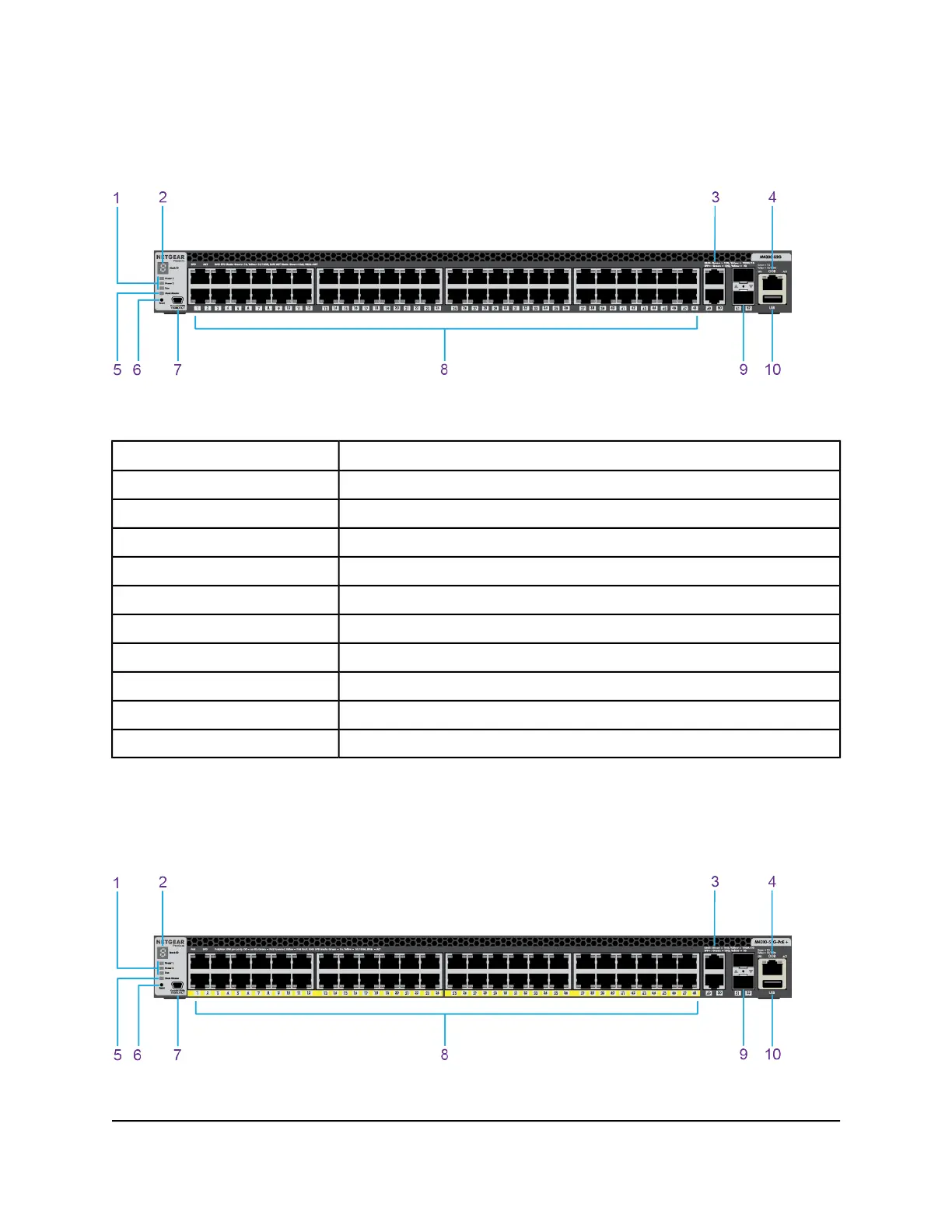

Figure 11. Front panel model M4300-52G
DescriptionNumber
Power 1, Power 2, and Fan LEDs1
Stack ID LED2
10GBASE-T ports, each with a port LED3
OOB port with port LEDs4
Stack Master LED5
Reset button6
Mini USB console port7
1000BASE-T ports, each with a port LED8
10GBASE-X SFP+ ports, each with a port LED9
USB port10
Model M4300-52G-POE+
Model M4300-52G-POE+ supports PoE+ on ports 1 through 48. The following figure
illustrates the front panel of full-width model M4300-52G-POE+.
Figure 12. Front panel model M4300-52G-POE+
