Model M4300-12X12F

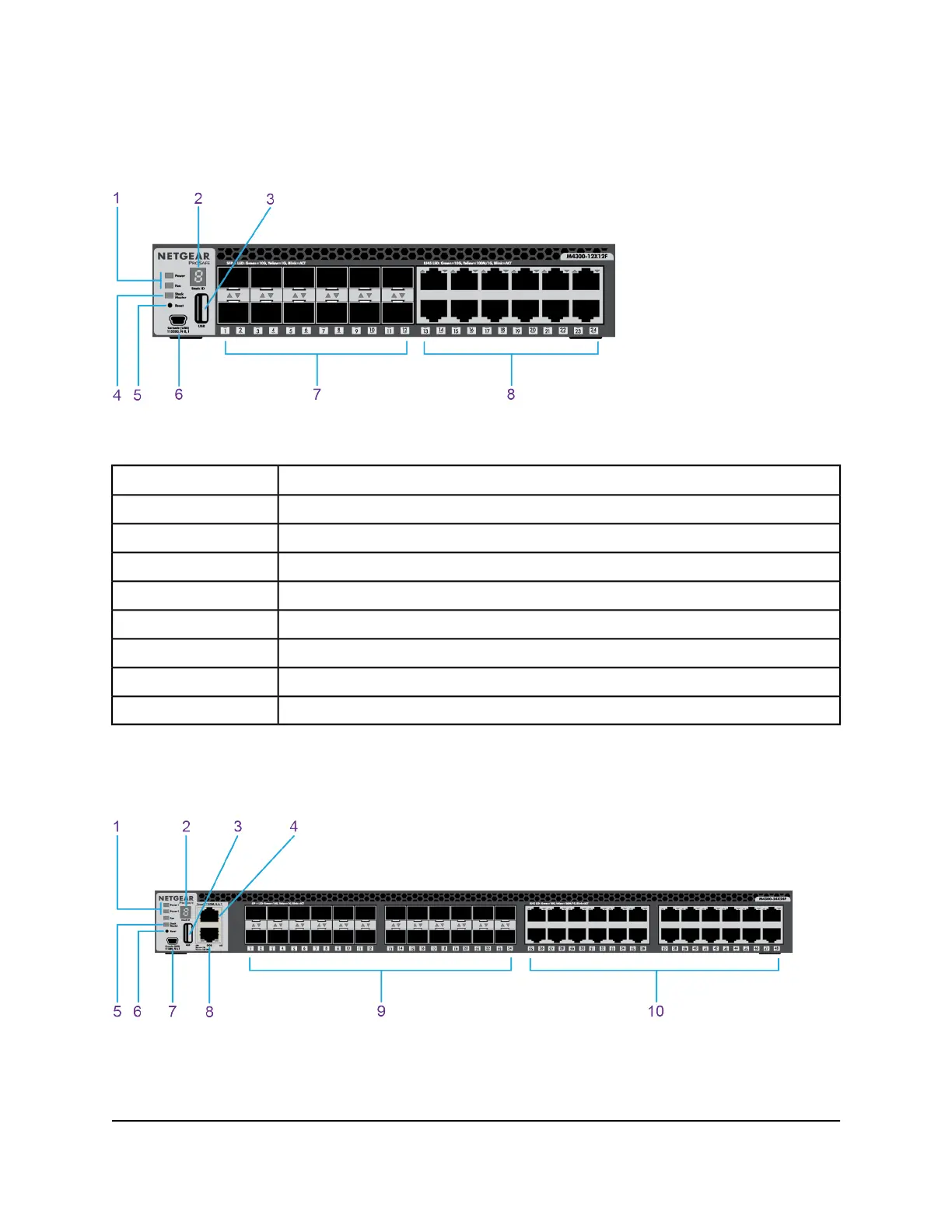

The following figure illustrates the front panel of half-width model M4300-12X12F.
Figure 3. Front panel model M4300-12X12F
DescriptionNumber
Power and Fan LEDs1
Stack ID LED2
USB port3
Stack Master LED4
Reset button5
Mini USB console port6
10GBASE-X SFP+ ports, each with a port LED7
10GBASE-T ports, each with a port LED8
Model M4300-24X24F
The following figure illustrates the front panel of full-width model M4300-24X24F.
Figure 4. Front panel model M4300-24X24F
Hardware Installation Guide17Hardware Overview
M4300 Intelligent Edge Series Fully Managed Stackable Switches
