Model M4300-52G-POE+

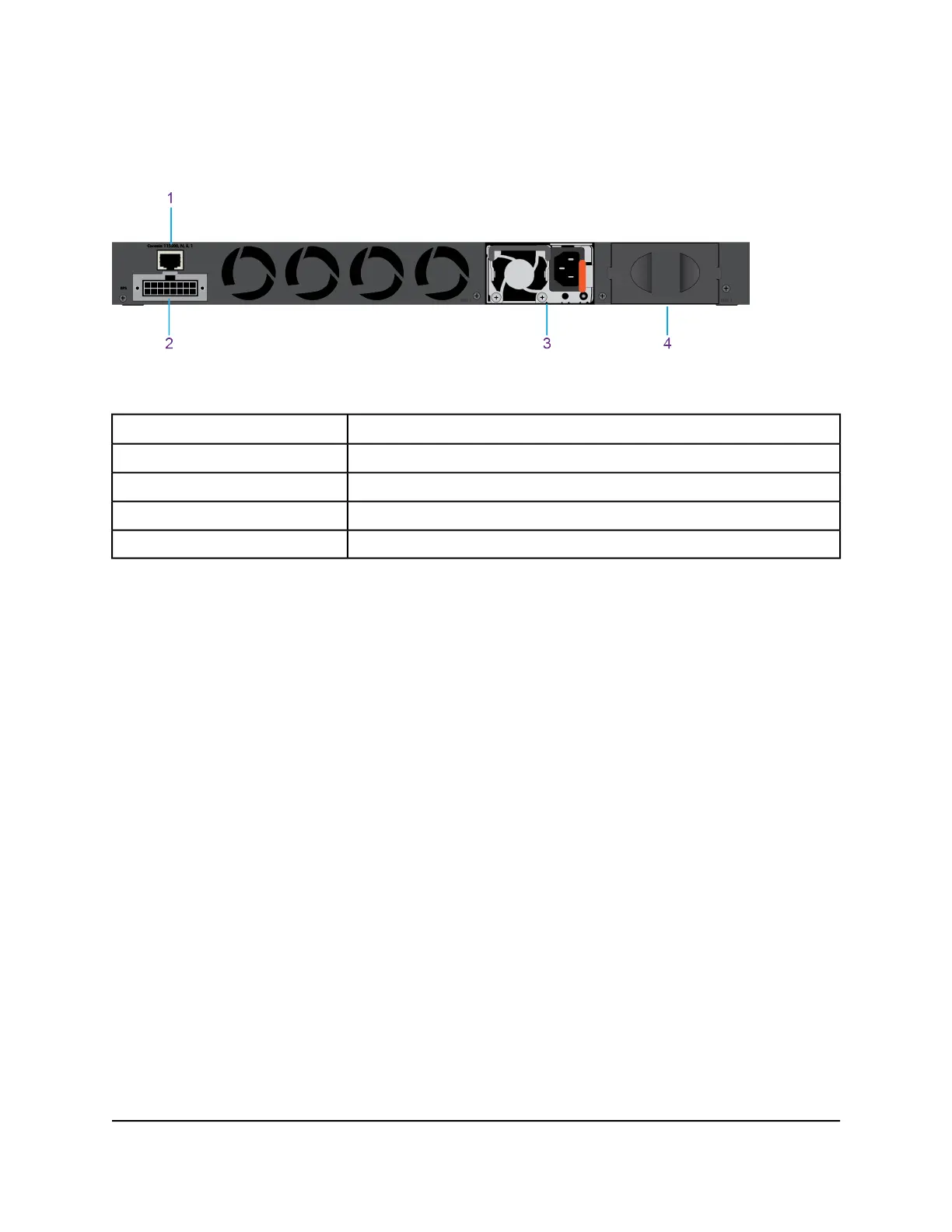

The following figure illustrates the back panel of full-width model M4300-52G-POE+.
Figure 14. Back panel model M4300-52G-POE+
DescriptionNumber
RJ-45 RS232 console port1
RPS interface2
PSU1 with AC connector3
Bay for PSU24
From left to right, the back panel of model M4300-52G-POE+ provides the following
components:
•
One RJ-45 RS232 (115200, N, 8, 1) console port.
•
One redundant power supply (RPS) interface.
•
Fixed fans for front-to-back air flow.
•
Modular bay in which an APS550W power supply unit (PSU) or APS1000W PSU is
installed, depending on the product ordered.
•
Second modular bay for an optional second PSU.
Hardware Installation Guide28Hardware Overview
