Model M4300-24XF
The following figure illustrates the back panel of half-width model M4300-24XF.

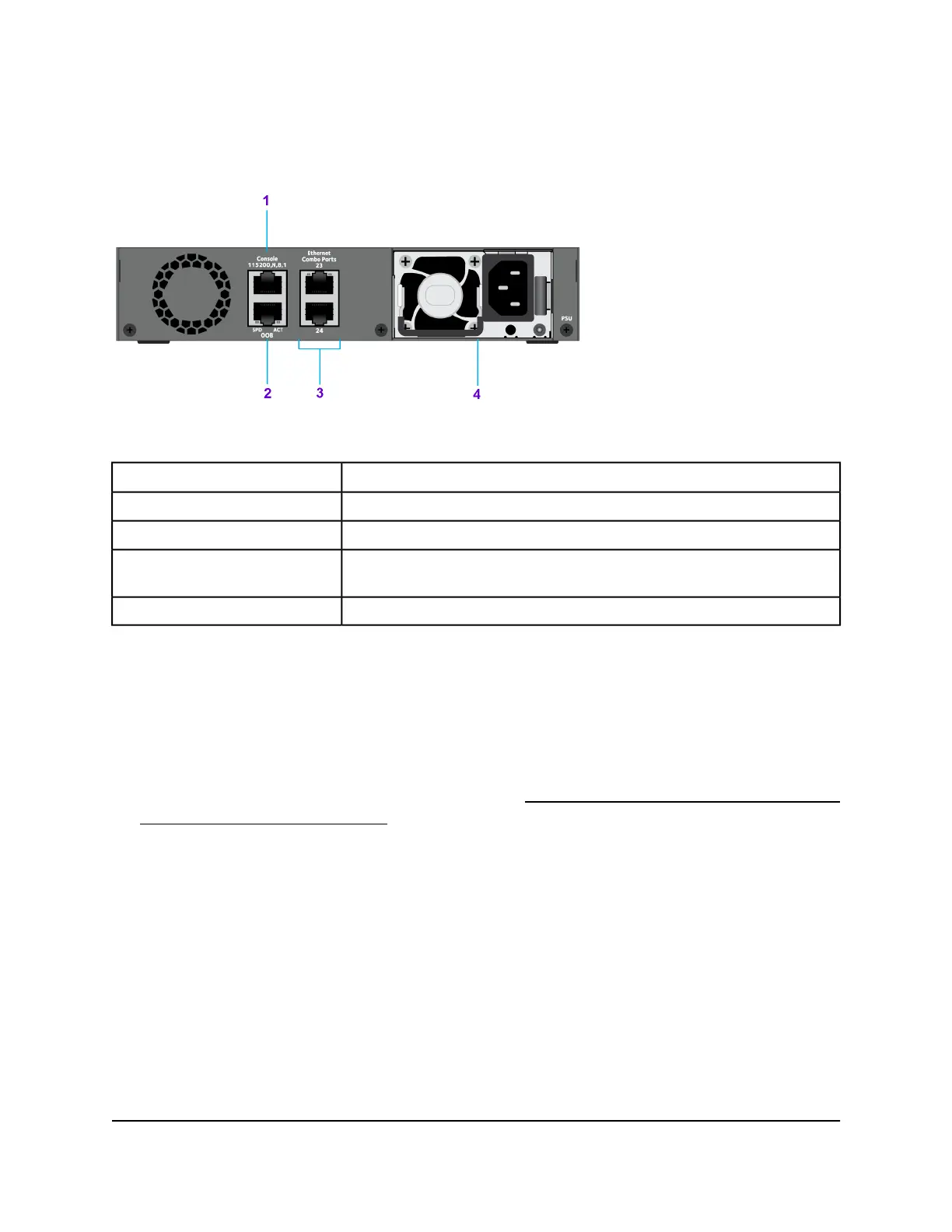

Figure 20. Back panel model M4300-24XF
DescriptionNumber
RJ-45 RS232 console port1
OOB port with port LEDs2
10GBASE-T RJ-45 combo ports (23 and 24), each with a port LED (the
corresponding 10GBASE-X SFP+ combo ports are on the front panel)
3
PSU with AC connector4
From left to right, the back panel of model M4300-24XF provides the following
components:
•
Fixed fan for front-to-back air flow.
•
One RJ-45 RS232 (115200, N, 8, 1) console port.
•
One out-of-band (OOB) 1G Ethernet port with a left LED that indicates the speed
and a right LED that indicates the activity (see LEDs, M4300X series full 10G models
with RJ45/SFP+ combo ports on page 38).
•
Two combo 10GBASE-T RJ-45 ports.
•
Modular bay in which an APS250W power supply unit (PSU) is installed.
Hardware Installation Guide36Hardware Overview
M4300 Intelligent Edge Series Fully Managed Stackable Switches
