NETGEAR M4300 Intelligent Edge Series User Manual

2. Insert the PSU into the power module bay, and gently push the PSU into the bay
until the latch locks.
WARNING: When inserting the PSU, do not use unnecessary force. Doing so can
damage the connectors on the rear of the PSU and on the midplane.

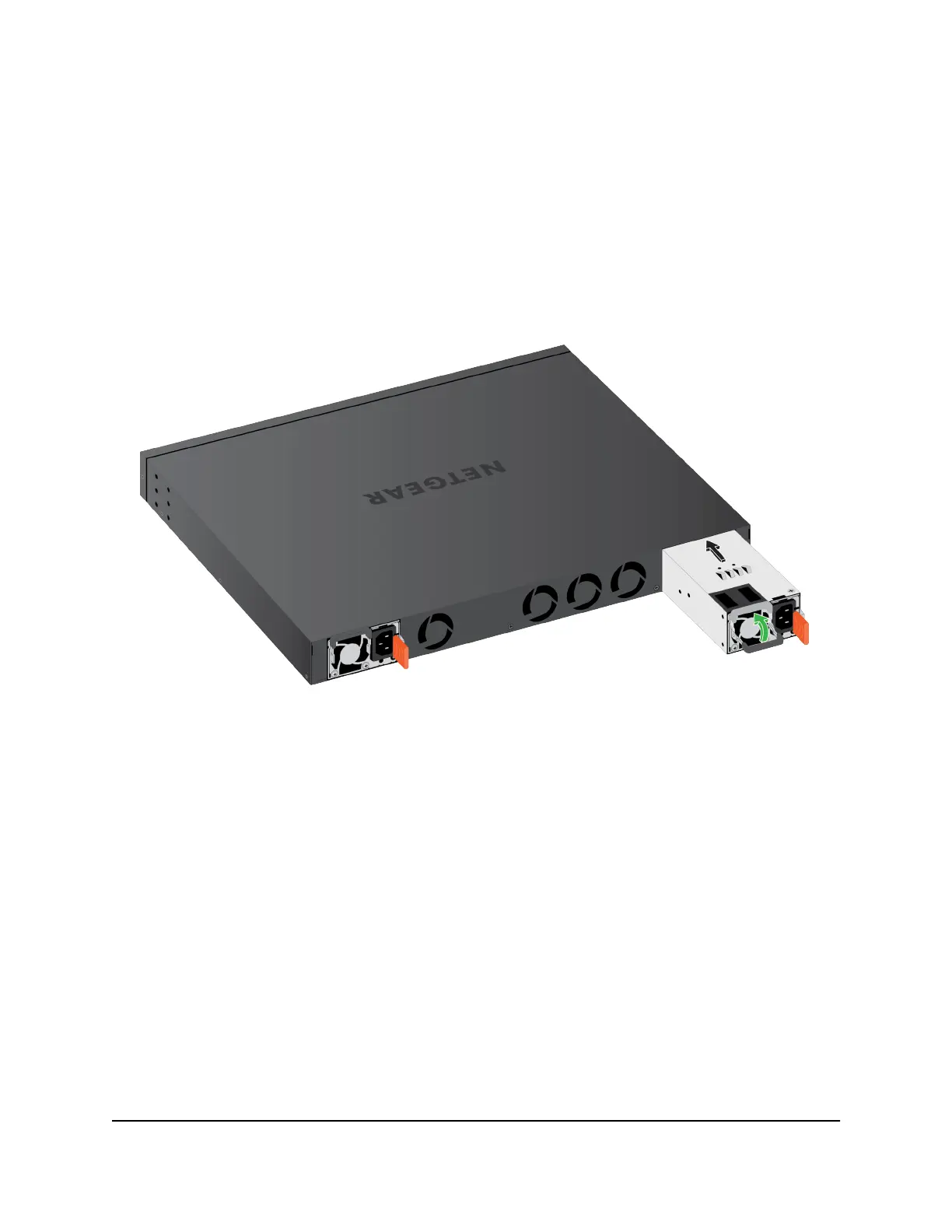

The following figure shows model M4300-24X24F. However, you install a second
PSU in models M4300-28G, M4300-28G-POE+, M4300-48X, M4300-48XF,
M4300-52G, and M4300-52G-POE+ in the same manner.
3.
Connect the end of the power cord to the power receptacle on the PSU.
4. Plug the AC power cord into a power source such as a wall socket or power strip.
When you install a second PSU and apply power, the Power 2 LED on the switch
front panel lights. If the Power 2 LED does not light, check that the power cord is
plugged in correctly and that the power source is good.
Optional Step 7: Connect a redundant
power supply to model M4300-52G-POE+
This procedure is optional for model M4300-52G-POE+ only, which can support an
optional RPS5412 external redundant power supply (RPS). That is, model
M4300-52G-POE+ can support two internal power supply units (PSUs) and an external
RPS.
Hardware Installation Guide59Installation
M4300 Intelligent Edge Series Fully Managed Stackable Switches

NETGEAR M4300 Intelligent Edge Series Specifications

General

Switch Type	Managed
Form Factor	Rack-mountable
Layer 3 Features	Static routing, RIP, OSPF, VRRP
Model	NETGEAR M4300 Intelligent Edge Series
Ports	Varies by model
PoE	Available on some models
Stacking	Yes
Redundancy	Redundant power supplies (on some models)
Management	Web-based, CLI, SNMP
Switching Capacity	Varies by model
Forwarding Rate	Varies by model
Jumbo Frame Support	Yes
Layer 2 Features	VLAN, STP, RSTP, MSTP
Security Features	ACL, 802.1X
Dimensions	Varies by model (see documentation)
Weight	Varies by model (see documentation)
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Power Supply	Internal
Warranty	Lifetime
