Two dedicated 10GBASE-X SFP+ ports, each with a combined speed and activity
LED (see LEDs, M4300 series 1G models with 10G uplinks on page 29):
- On model M4300-28 and model M4300-28G-POE+, these are port numbers 27
and 28.
- On model M4300-52G and model M4300-52G-POE+, these are port numbers
51 and 52.
•
One out-of-band (OOB) 1G Ethernet port with a left LED that indicates the speed
and a right LED that indicates the activity (see LEDs, M4300 series 1G models with
10G uplinks on page 29).
•
One USB 2.0 port.
Back panel, 4300 series 1G models with 10G uplinks
Models M4300-28G, M4300-28G-POE+, and M4300-52G
The following figure illustrates the back panel of full-width models M4300-28G,
M4300-28G-POE+, and M4300-52G.

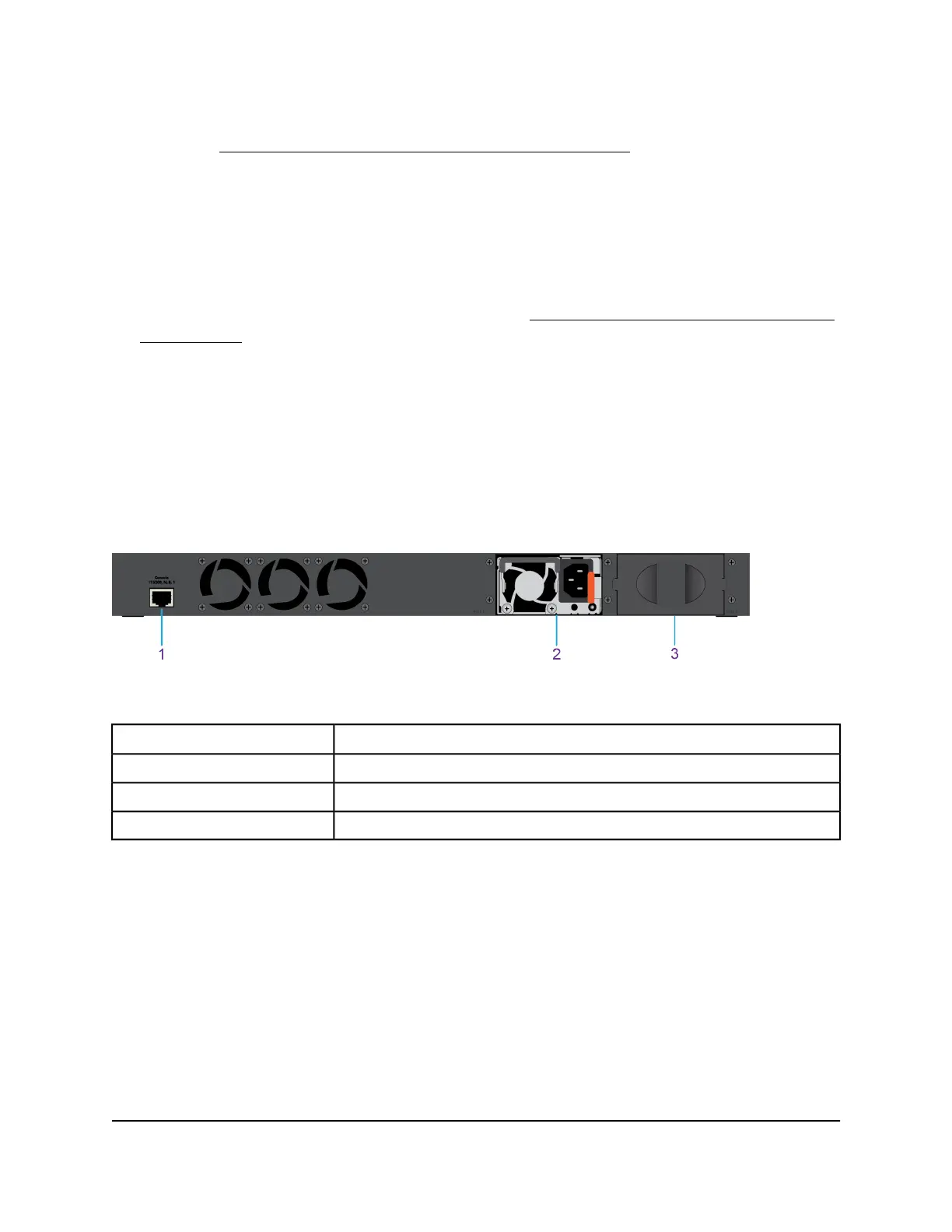

Figure 13. Back panel models M4300-28G, M4300-28G-POE+, and M4300-52G
DescriptionNumber
RJ-45 RS232 console port1
PSU1 with AC connector2
Bay for PSU23
From left to right, the back panel of models M4300-28G, M4300-28G-POE+, and
M4300-52G provides the following components:
•
One RJ-45 RS232 (115200, N, 8, 1) console port.
•
Fixed fans for front-to-back air flow.
•
Modular bay in which for model M4300-28G and model M4300-52G an APS150W
power supply unit (PSU) is installed. For model M4300-28G-POE+, an APS550W
PSU or APS1000W PSU is installed, depending on the product ordered.
•
Second modular bay for an optional second PSU.
Hardware Installation Guide27Hardware Overview
M4300 Intelligent Edge Series Fully Managed Stackable Switches

NETGEAR M4300 Intelligent Edge Series Specifications

General

Switch Type	Managed
Form Factor	Rack-mountable
Layer 3 Features	Static routing, RIP, OSPF, VRRP
Model	NETGEAR M4300 Intelligent Edge Series
Ports	Varies by model
PoE	Available on some models
Stacking	Yes
Redundancy	Redundant power supplies (on some models)
Management	Web-based, CLI, SNMP
Switching Capacity	Varies by model
Forwarding Rate	Varies by model
Jumbo Frame Support	Yes
Layer 2 Features	VLAN, STP, RSTP, MSTP
Security Features	ACL, 802.1X
Dimensions	Varies by model (see documentation)
Weight	Varies by model (see documentation)
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Power Supply	Internal
Warranty	Lifetime
