Control Access to the Internet
39
VDSL Voice Gateway

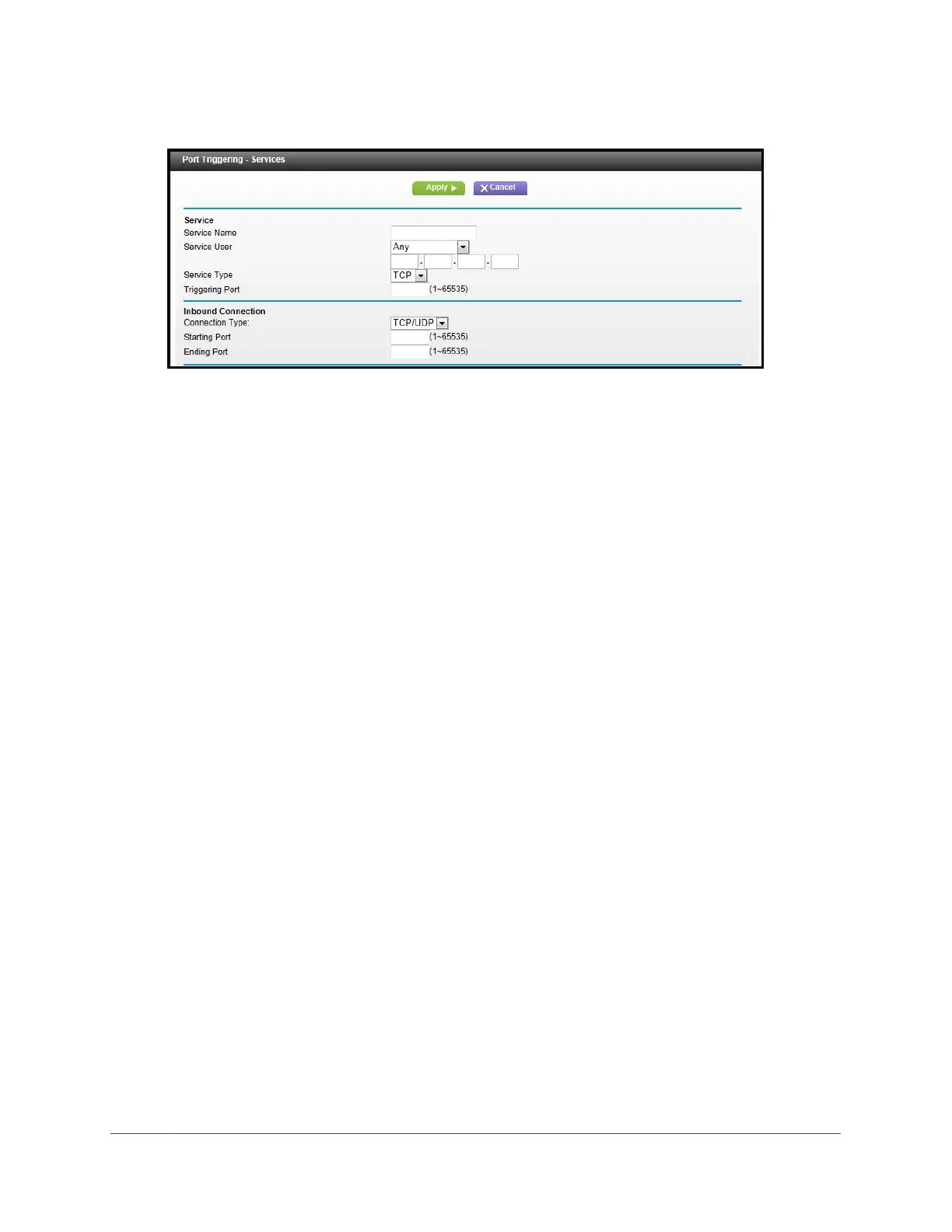

6. Click the Add Service button.
7. In the Service Name field, type a descriptive service name.
8. From the Service User list, select a user option:
• Any (the default) allows any computer on the Internet to use this service.
• Single address restricts the service to a particular computer
. You must enter the IP
address of the computer to which you want to grant access.
9. From the Service T
ype list, select a service.
If you are not sure, select TCP/UDP.
10. In the T
riggering Port field, enter the number of the outbound traffic port that will open the
inbound ports.
11. In the Connection T
ype, Starting Port, and Ending Port fields, enter the inbound
connection port information.
12. Click the Apply button.
The service is added. You must enable port triggering before the gateway uses port
triggering. For information about port triggering, see Specify the Port Triggering Time-out
on page 39.
Specify the Port Triggering Time-out
To specify the port triggering time-out:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://10.0.0.2.
A login screen displays.
3. Enter the gateway user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Advanced Setup > Port Forwarding/Port Triggering.
