Super G Wireless Router WGT624 v4 User Manual
5-10 Advanced Configuration
v1.0, July 2008
For example, the wildcard feature will cause *.yourhost.dyndns.org to be aliased to the same
IP address as yourhost.dyndns.org
8. Click Apply to save your configuration.
Using LAN IP Setup Options
The LAN IP Setup feature allows configuration of LAN IP services such as DHCP and RIP. From
the wireless router’s main menu, under Advanced, select LAN IP Setup.
The router is shipped preconfigured to use private IP addresses on the LAN side, and to act as a
DHCP server. The router’s default LAN IP configuration is:
• LAN IP address—192.168.1.1
• Subnet mask—255.255.255.0
These addresses are part of the IETF-designated private address range for use in private networks,
and should be suitable in most applications. If your network has a requirement to use a different IP
addressing scheme, you can make those changes in this menu.

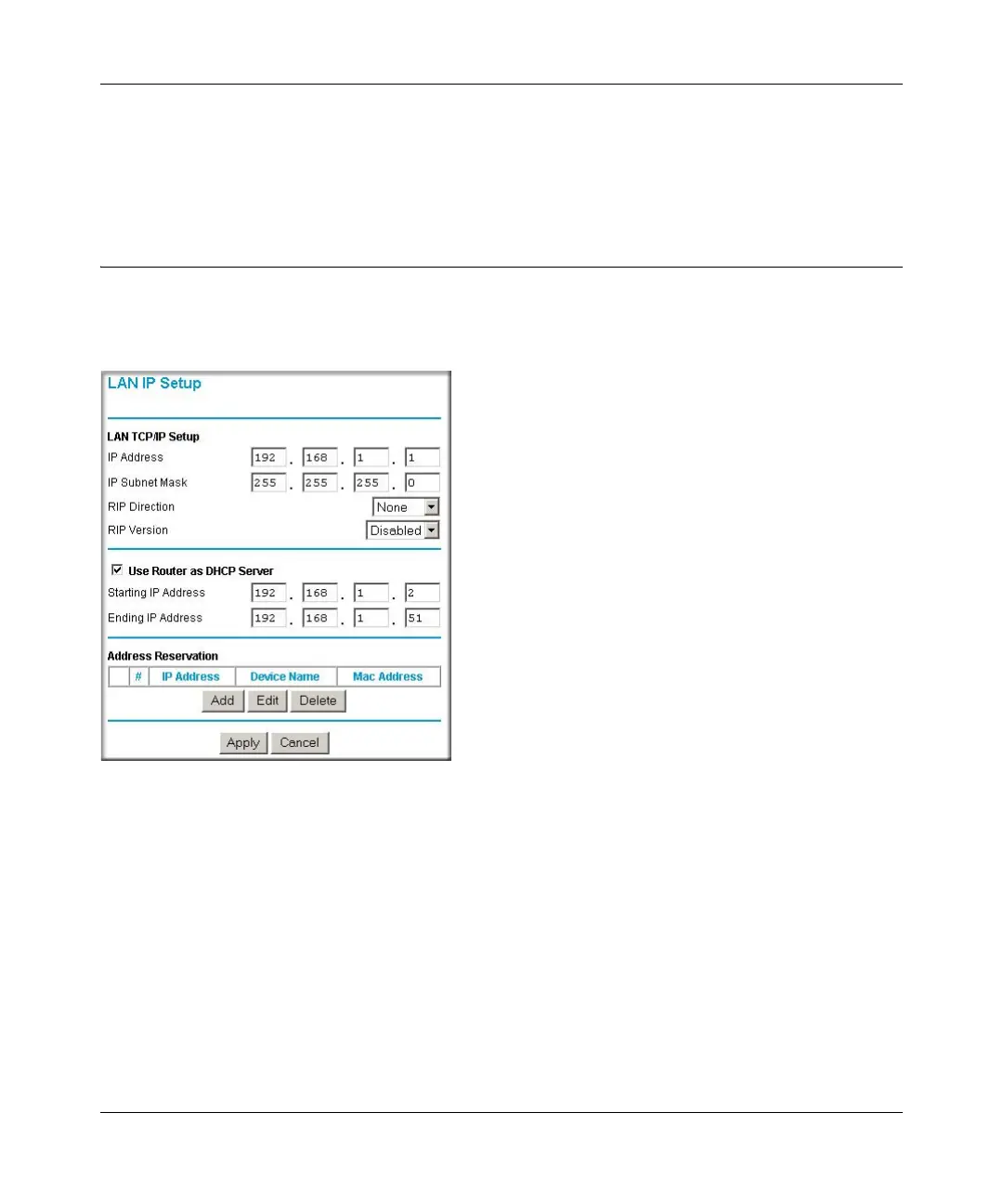

Figure 5-5
