WF-2409 User Manual
4.2.2. PPPoE

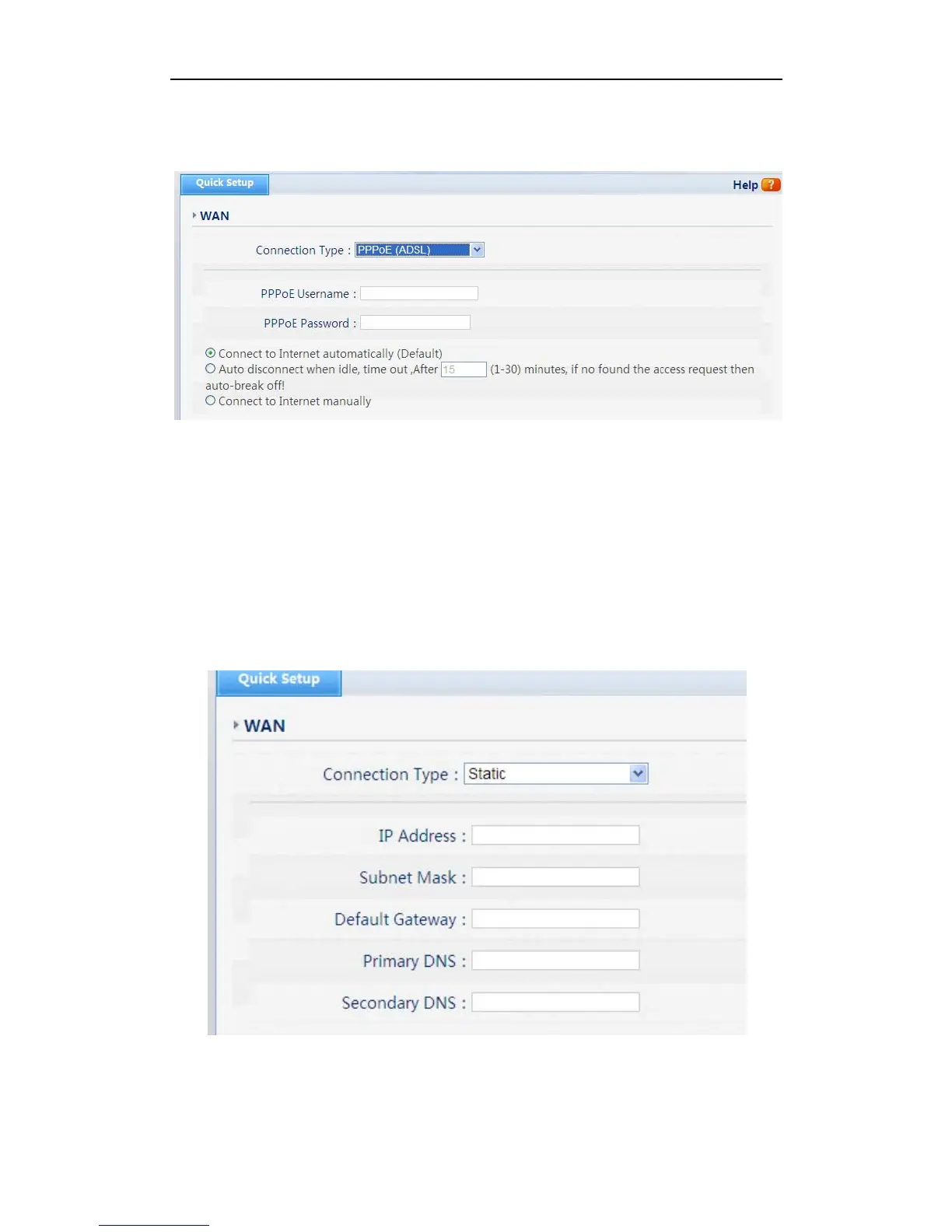

Figure 4-9
If your ISP provides you the PPPoE service (all ISP with DSL transaction will supply this
service, such as the most popular ADSL technique), please select this item. In the “Convenient
configuration” You can input your PPPoE username and password to access the Internet.
¾ PPPoE Username: Input PPPoE username provided by ISP
¾ PPPoE Password: Input PPPoE password provided by ISP.
4.2.3. Static User
Figure 4-10
This item should only be used when users use a static IP address to access Internet, you should
input your “IP address”, ”subnet mask”,” default gateway” and “DNS server (domain name
32
