Netis WF-2409 - SYSTEM TOOLS

WF-2409 User Manual

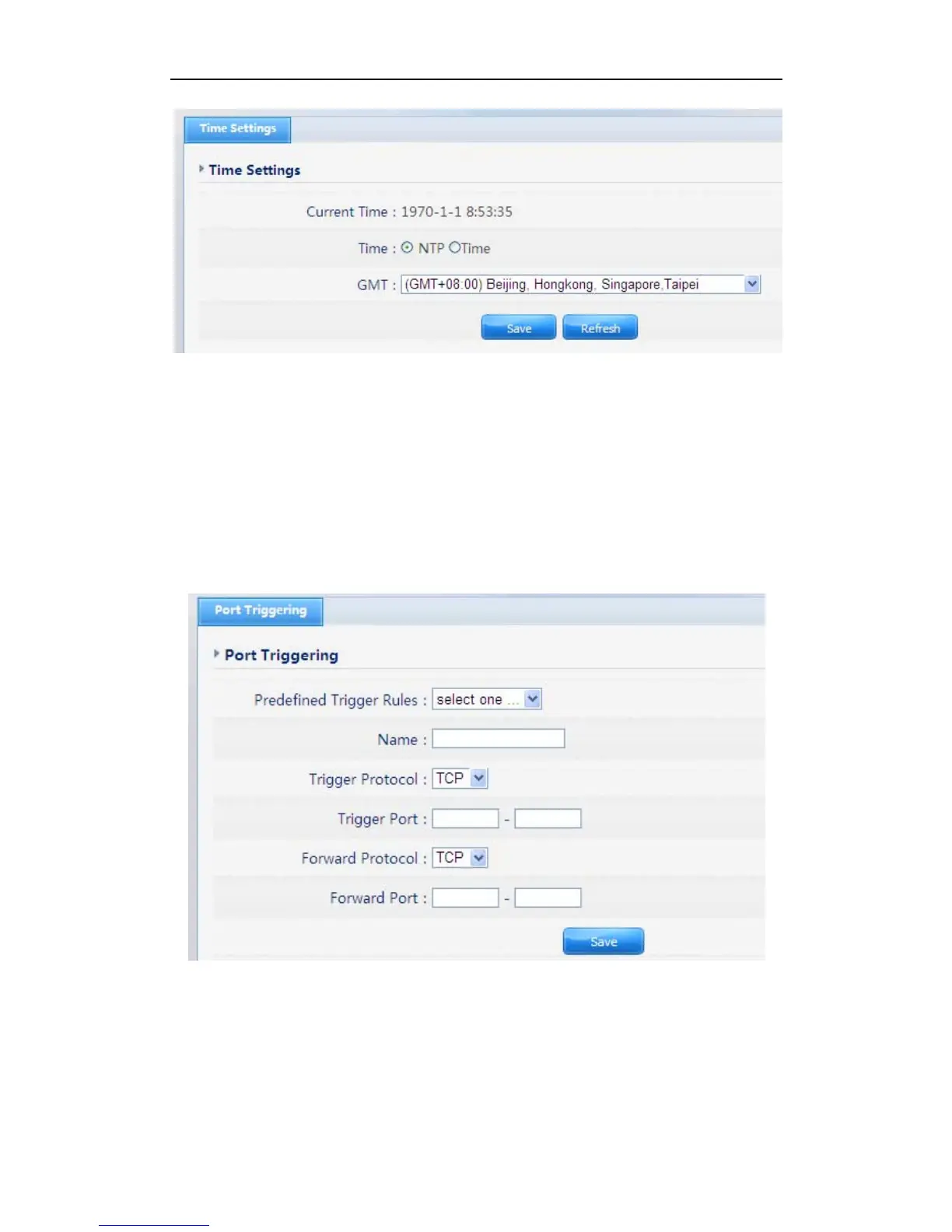

Figure 4-57
4.9.4. Port Triggering
Port trigger module dynamically registers virtual server rules when any IP host generates the
packet from the specified trigger protocol and port. Port trigger module use forward protocol
type and port number and use the IP address of host that generates the trigger packet when it
registers a rule.
Figure 4-58
¾ Predefined Trigger Rules: select one of the Predefined Rules.
¾ Name: describe one Predefined Trigger that you will configure.
¾ Trigger Protocol: you can select TCP/UDP.
67
