WF-2409 User Manual
The item allows you to encrypt your wireless communication, and you can also protect your
wireless network from unauthorized user access. It supplies “None”, “WEP”, “WPA-PSK”,
“WPA2-PSK” and “WPA/WPA2-PSK” five different encryption modes. And you can also use
WPS function and then it will be encrypted to WPA2-AES mode automatically
4.3. WPS Settings
Wi-Fi Protect Setup (WPS) function can let you create a safety network easily. You can through
‘PIN Input Config (PIN)’ or ’Push Button (PBC)’to encrypt your network. This router also
provides WPS button, you only need to push the WPS button in this router and the wireless
network card that support WPS function, then the router will be encrypted to WPA2-AES mode
automatically
Note:
If you have configured encryption mode in your router, then when you use this WPS function,
please configure the authentication type to none, and then it will be encrypted to WPA2-AES
mode automatically. If you don’t want to change your authentication type, then when you use
this function, the router will be encrypted to the mode that you have configured.

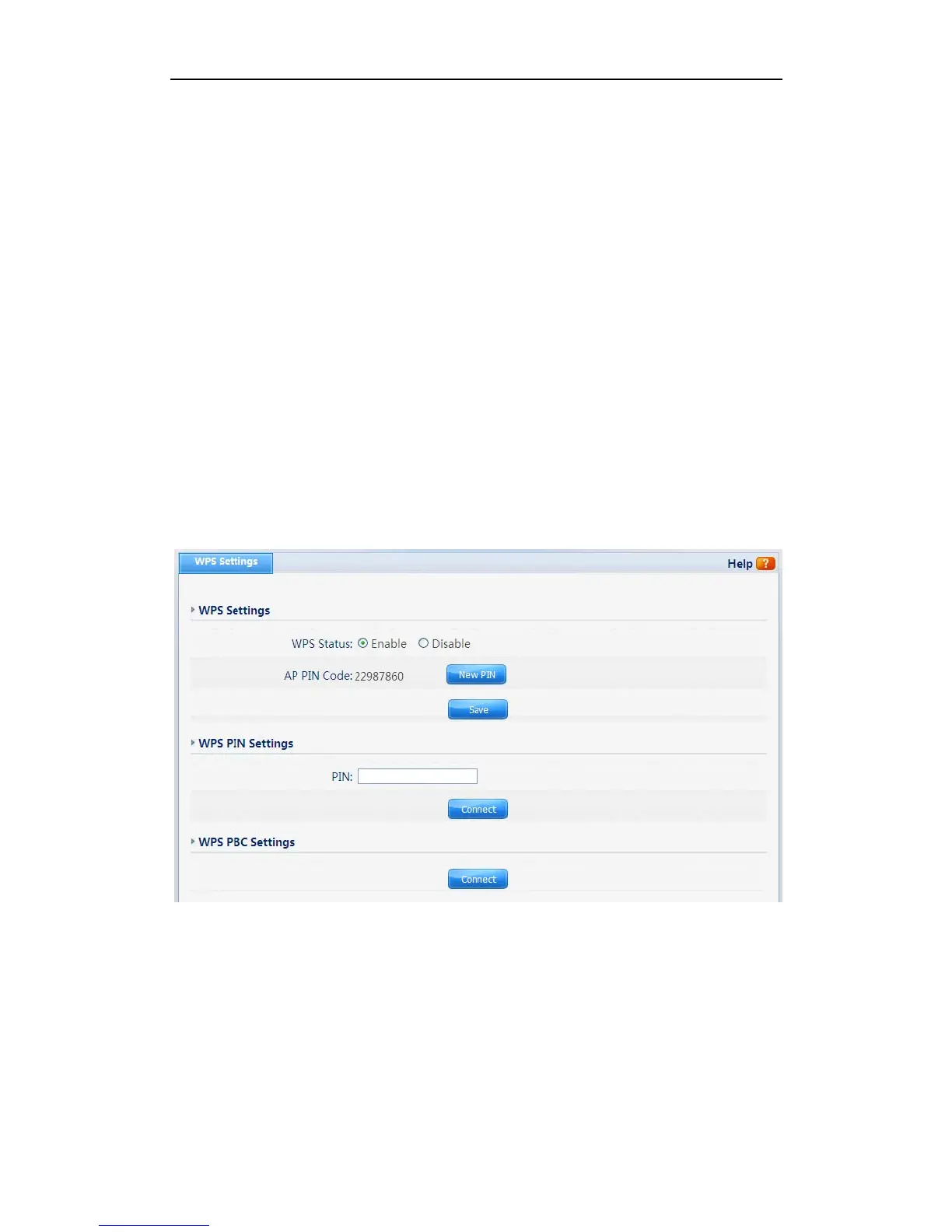

Figure 4-14
¾ WPS Status: you can use this function to setup the wireless connection between this router
and wireless network card. The default is disable.
¾ AP PIN Code: this code can mark a wireless product
¾ Wireless Host PIN Code: input the PIN of wireless network card that support WPS
function. Click connect, when it connect successfully, it will be encrypted to WPA2-PSK
¾ WPS PBC settings: Click connect, when it connect successfully, it will be encrypted to
WPA2-PSK
36
