WF-2409 User Manual
¾ WPS Configuration: display the encryption information
WPS can connect the wireless adapter and the router in a safe way. If you have a wireless
network card which has WPS button, you may set up a safe network via the following methods
Method 1:

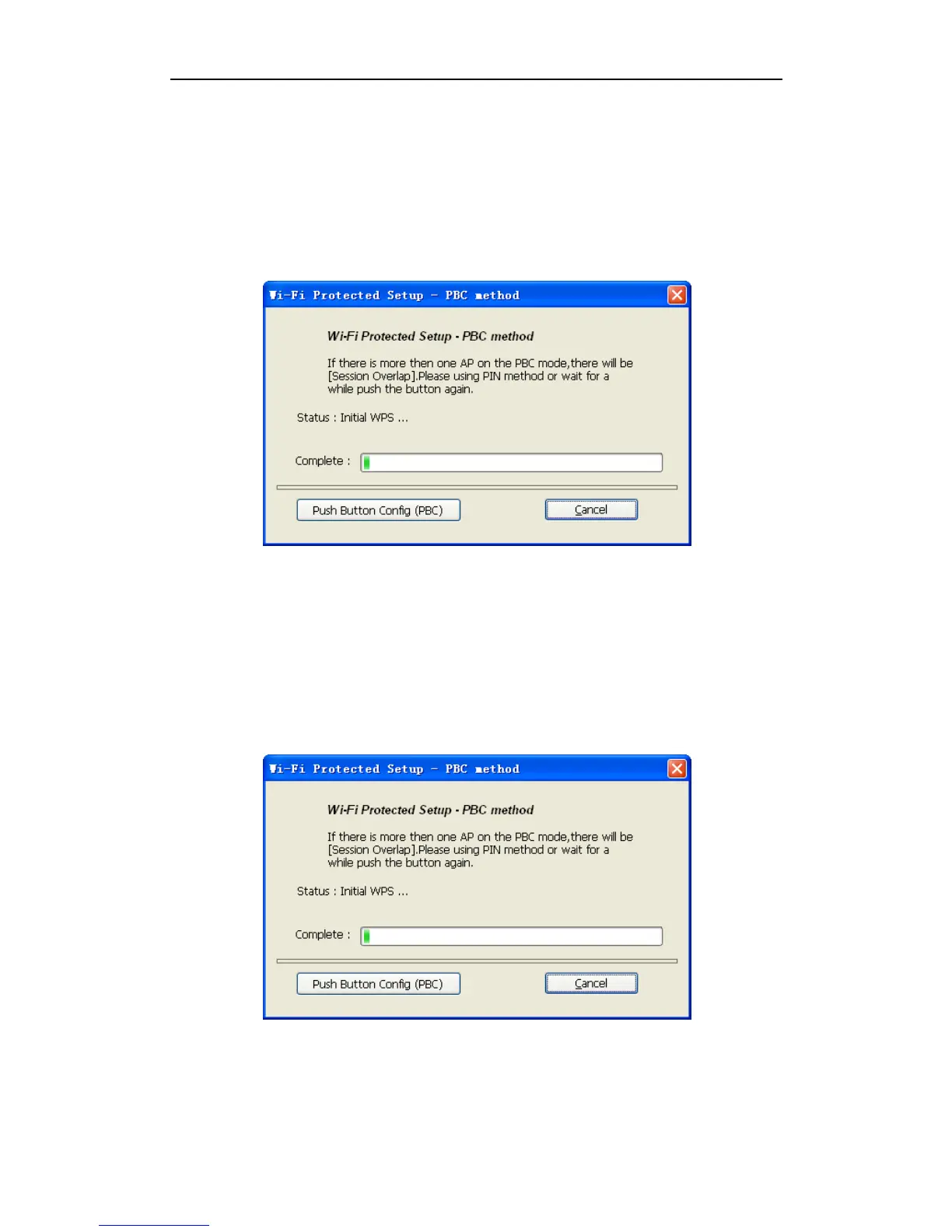

1. Push the WPS button in the Router until the LED is flashing
2. Push the WPS button in the wireless network card until the following window appears
Figure 4-15
3. The next is the safe connection between the adapter and the router, please wait
4. The connect between the adapter and the router is success
Method 2:
1. Push the WPS button in the Router until the LED is flashing
2. Push the ‘Push button Config (PBC)’ in the Wi-Fi protect setup of the adapter until the
following picture appears
Figure 4-16
3. The next is the safe connection between the adapter and the router, please wait
4. The connect between the adapter and the router is success
37
