WF-2409 User Manual
Method 3:

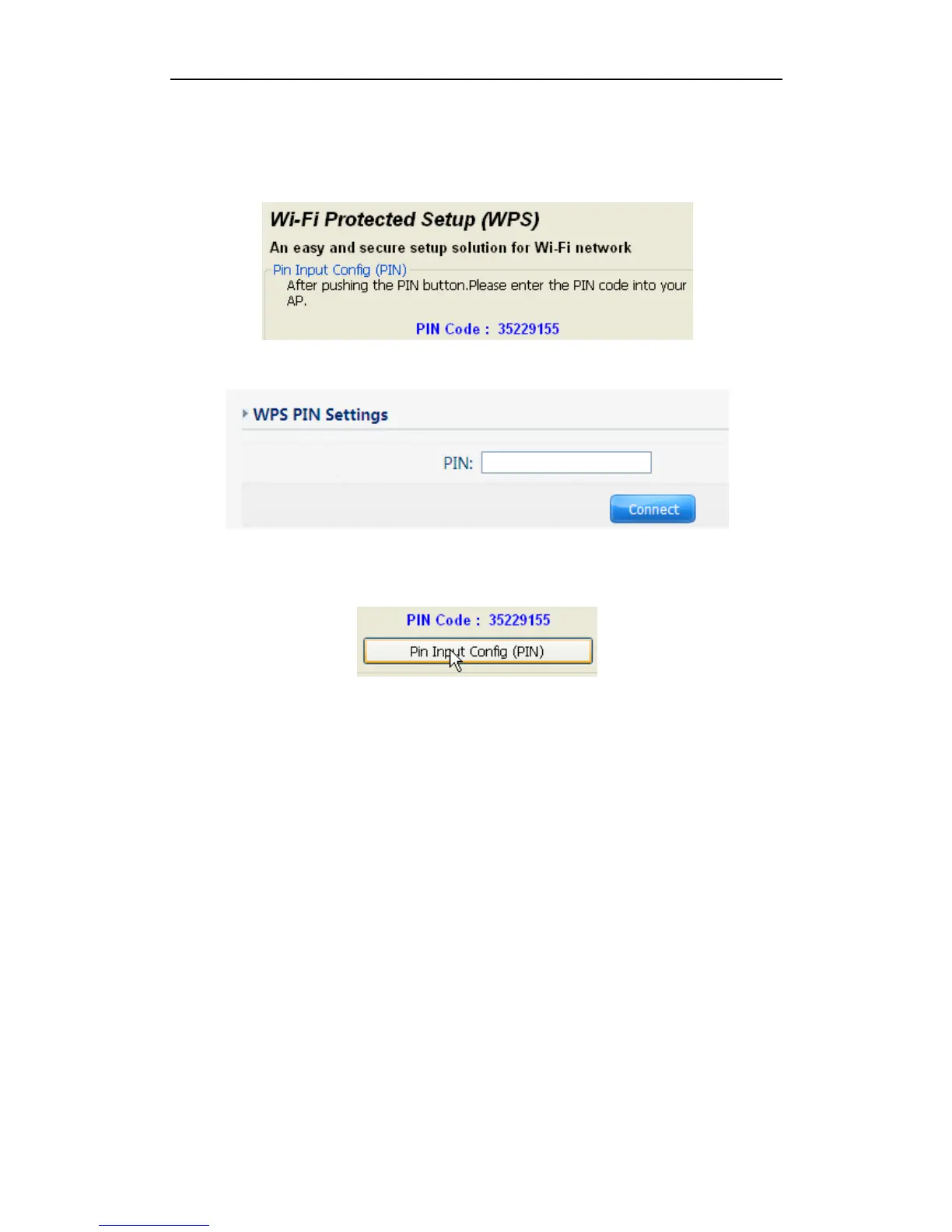

1. Input the PIN code of the adapter’s WPS page into the router’s WPS configure page, then
click ’connect’
Figure 4-1
Figure 4-17
2. Push the ‘PIN Input Config (PIN)’ in the Wi-Fi protect setup of the adapter
Figure 4-18
3. Select this router in the pop-up window, then click ‘Select’
38
