WF-2409 User Manual

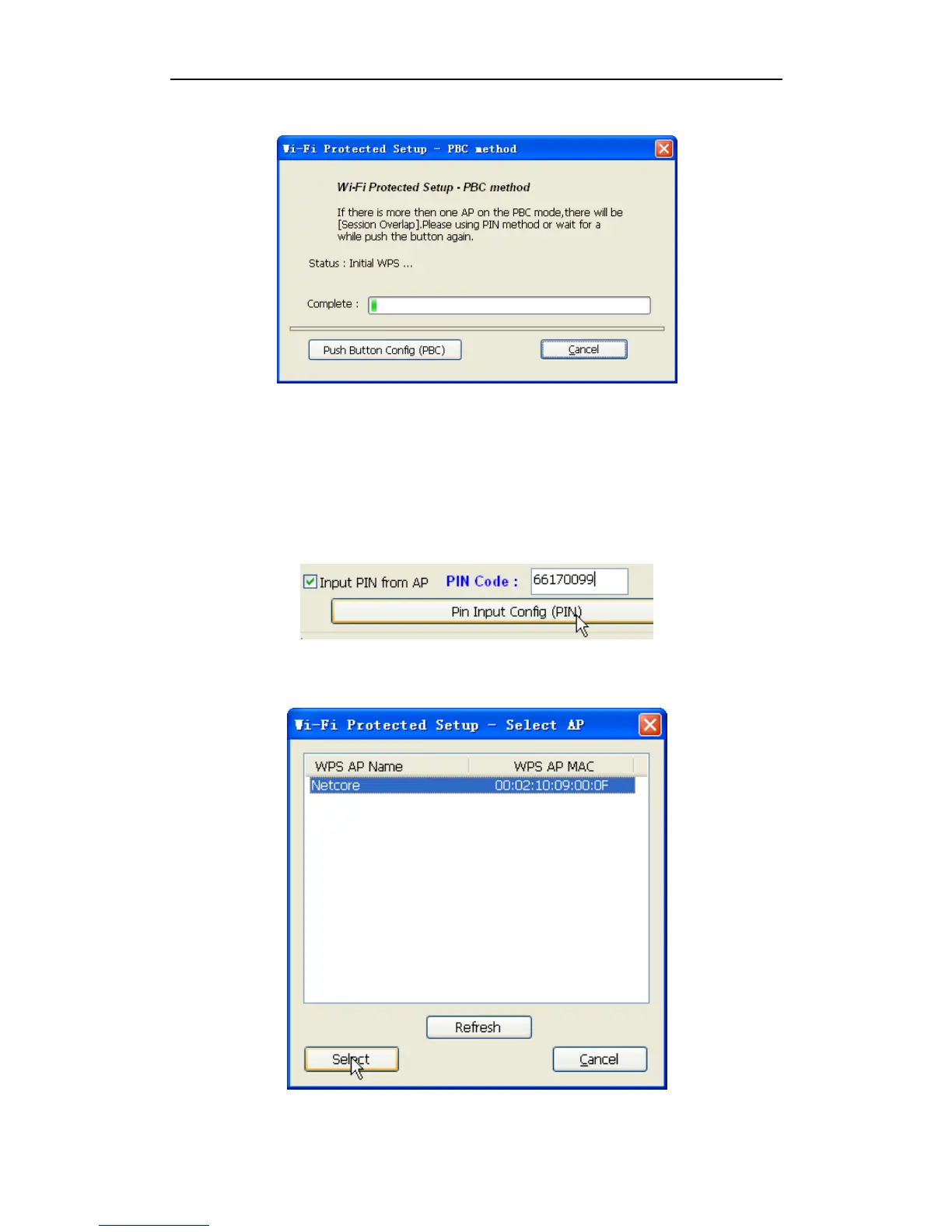

following picture appears
Figure 4-22
3. The next is the safe connection between the adapter and the router, please wait
4. The connect between the adapter and the router is success
Method 5:
1. Select ‘Input PIN from AP’ in WI-FI protect setup page, input PIN of the router, then click
‘PIN Input Config (PIN)’
Figure 4-23
2. Select this router in the pop-up window, then click ‘Select’
Figure 4-24
40
