3A.3 RUN MODE FUNCTIONS

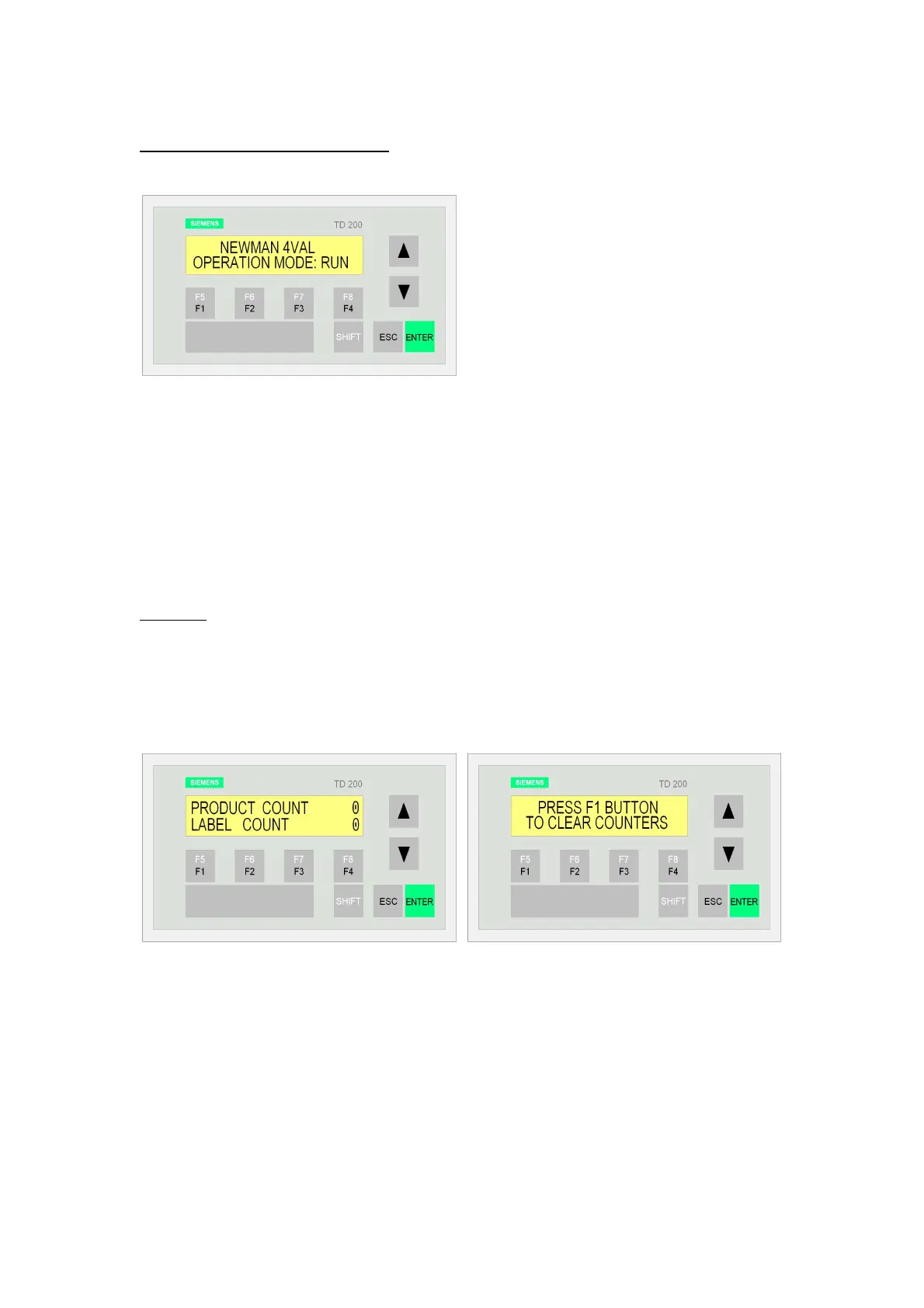

Run Mode Screen (F1, F2 & F3 buttons are inactive)
Run mode functions are limited to:
• Starting and stopping the machine.
• Adjusting the machine speed.
• Clearing alarm messages and restarting the machine.
• Viewing the counters.
• Test firing labels (F4 button)
Counters
Current counter values can be viewed by using the ‘UP’ or ‘DOWN’ arrow keys on
the keypad to scroll to the following information: -
Product Count: Total number of containers counted past the product sensor.
Label Count: Total number of labels dispensed.
NB The counters cannot be cleared in Run Mode.
Product And Label Clear Count Screen
Count Screen (F1 Button Inactive)
