4VAL Operating & Maintenance Manual Version 1.1 © Newman Labelling Systems Ltd Page 53 of 56

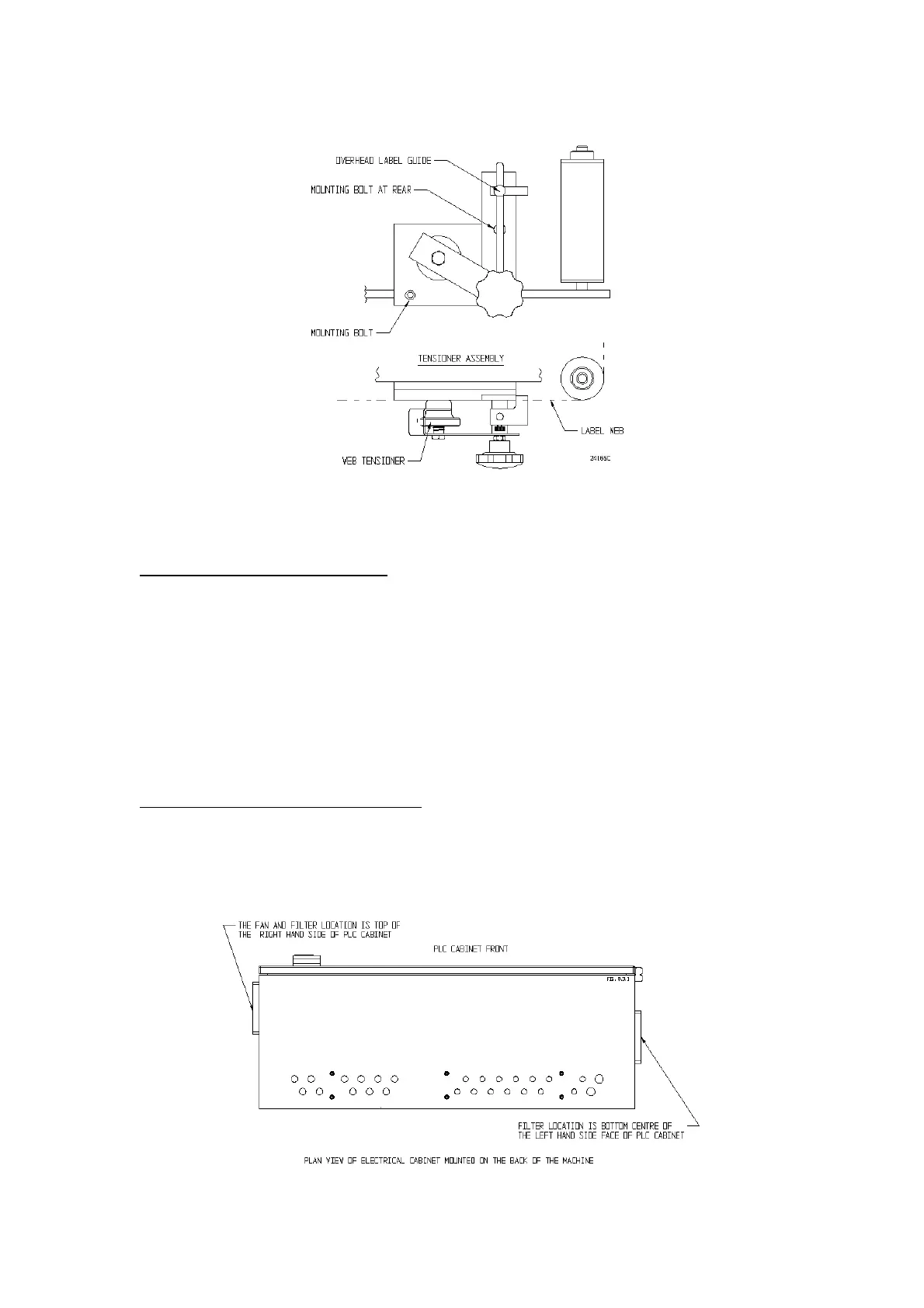

LABEL WEB TENSIONER
7.2 WEEKLY MAINTENANCE
Clear any collected water from the collecting bottle of the coder air set (if fitted) by
pressing the water drain plunger at the bottom of the bottle.
Clean conveyor belts, stripper plate, presser and presser pad, removing any dirt and
sticky deposits.
Clean the lens face of all the sensors (use a damp cloth or oil free glass cleaner).
7.3 QUARTERLY MAINTENANCE
Clean the fan air filters on the electrical enclosure at the back of machine. Remove
filter cover for access to filter. Renew filter if necessary.
