1.7 LAYOUT OF 4VAL

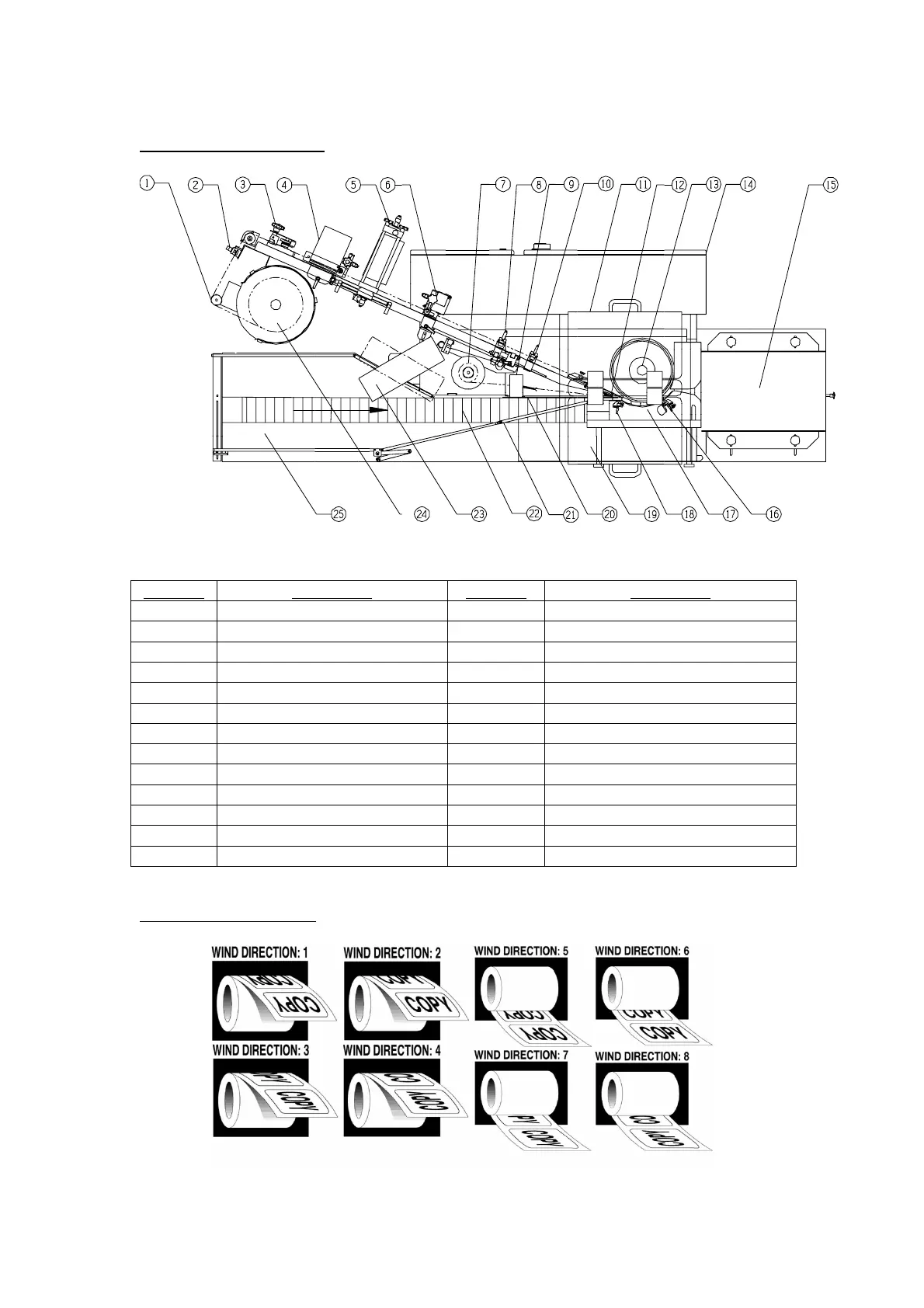

4VAL Layout Drawing (29916a)
Item No. Description Item No. Description
1 Dancing arm 2 Label runout sensor*
3 Web tensioner 4 Bar code reader*
5 Coder* 6 Overprint detector*
7 Waste web take up 8 Label sensor 1
9 Label feed rollers 10 Label sensor 2*
11 Guard rear door 12 Stripper plate
13 Applicator drum 14 Electrical cabinet
15 Outfeed tray table 16 Missing label sensor*
17 Presser pad 18 Product sensor
19 Guard front door 20 Fixed guide rail
21 Adjustable guide rail 22 Conveyor
23 Operator console 24 Label reel holder
25 Tray unload area * Optional items
1.8 LABEL WINDING
