4VAL Operating & Maintenance Manual Version 1.1 © Newman Labelling Systems Ltd Page 45 of 56
• Spiralled labelling on slightly tapered round containers can be corrected by
making a compensating adjustment to the stripper arm. This is done by tilting
the arm as described in c), but only turning the adjusting screw F about ½ turn to
tilt the arm in the desired direction.

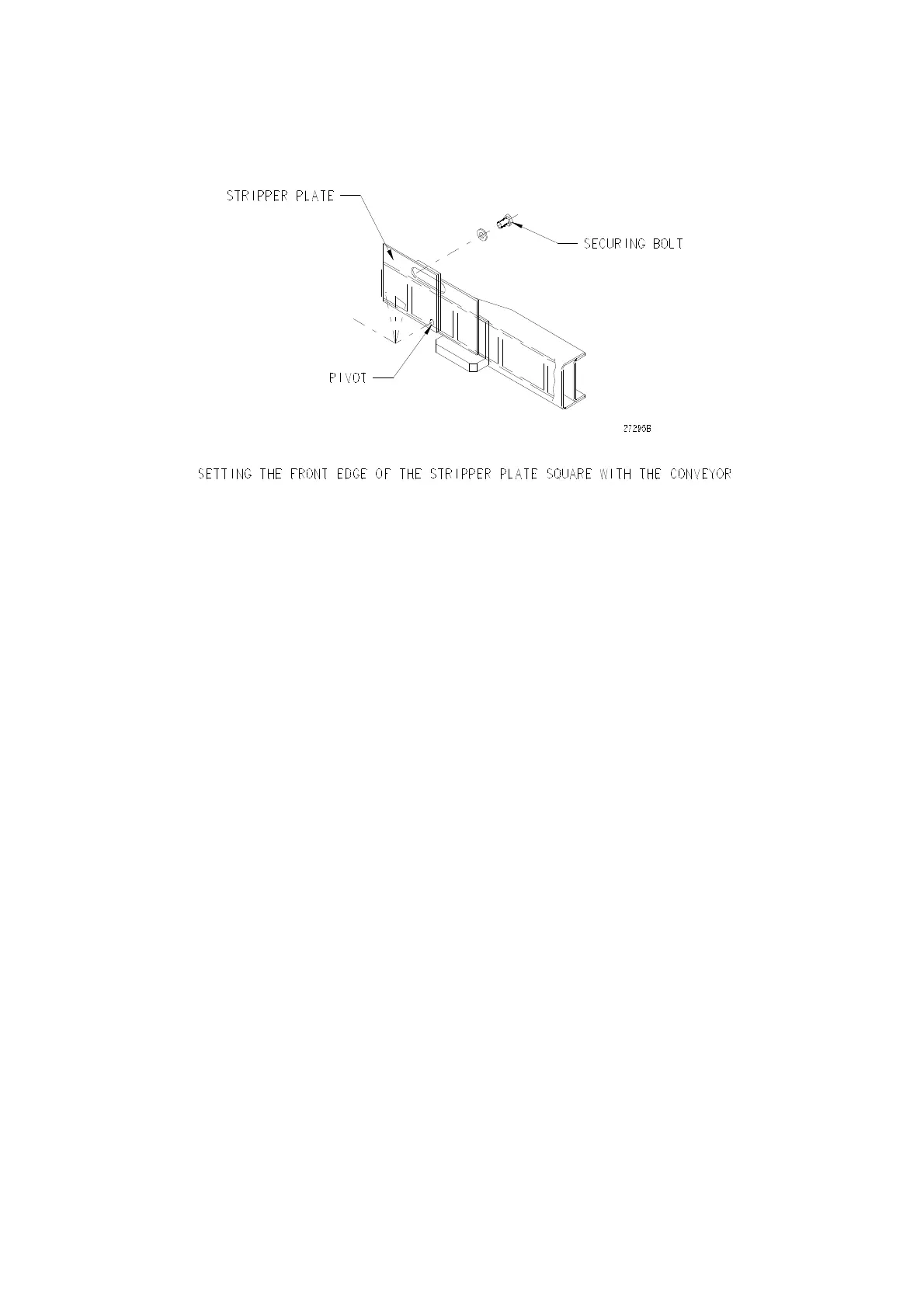

• Re-align the stripper plate at 90 degrees to conveyor as in d).
• Observe results after a few more containers are labelled and if necessary make
further similar adjustments until satisfactory results are obtained.
• Turn key-switch to "RUN". Place a few containers at the infeed and label them.
