Chapter 2: Jumpers and Connectors
NEX 605 User Manual
Connector Pin Denitions
External I/O Interfaces

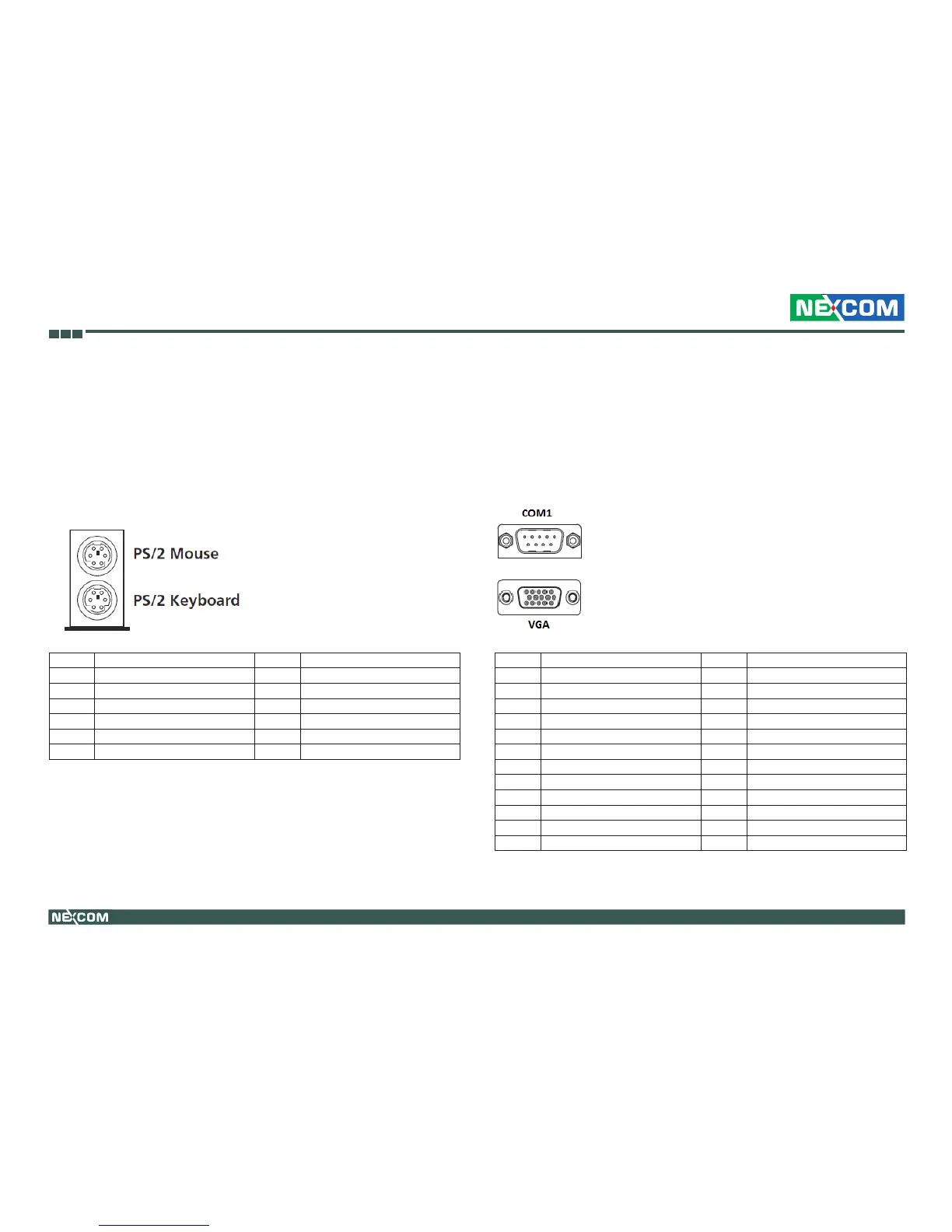

PS/2 Mouse and Keyboard Ports
Connector type: PS/2, Mini-DIN6
Connector location: CN16
Pin Definition Pin Definition
1 KB DATA 2 NC
3 GND 4 5VDUAL
5 KB CLOCK 6 NC
7 MS DATA 8 NC
9 GND 10 5VDUAL
11 MS CLOCK 12 NC
COM1 and VGA Ports
Connector type: DB-9 port, 9-pin D-Sub (COM1)
DB-15 port, 15-pin D-Sub (VGA)
Connector location: CN13
Pin Definition Pin Definition
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 +5V 10 GND
11 NC 12 DDC DATA
13 HSYNC 14 VSYNC
15 DDC CLOCK 16 DCD
17 RXD 18 TXD
19 DTR 20 GND
21 DSR 22 RTS
23 CTS 24 RI
