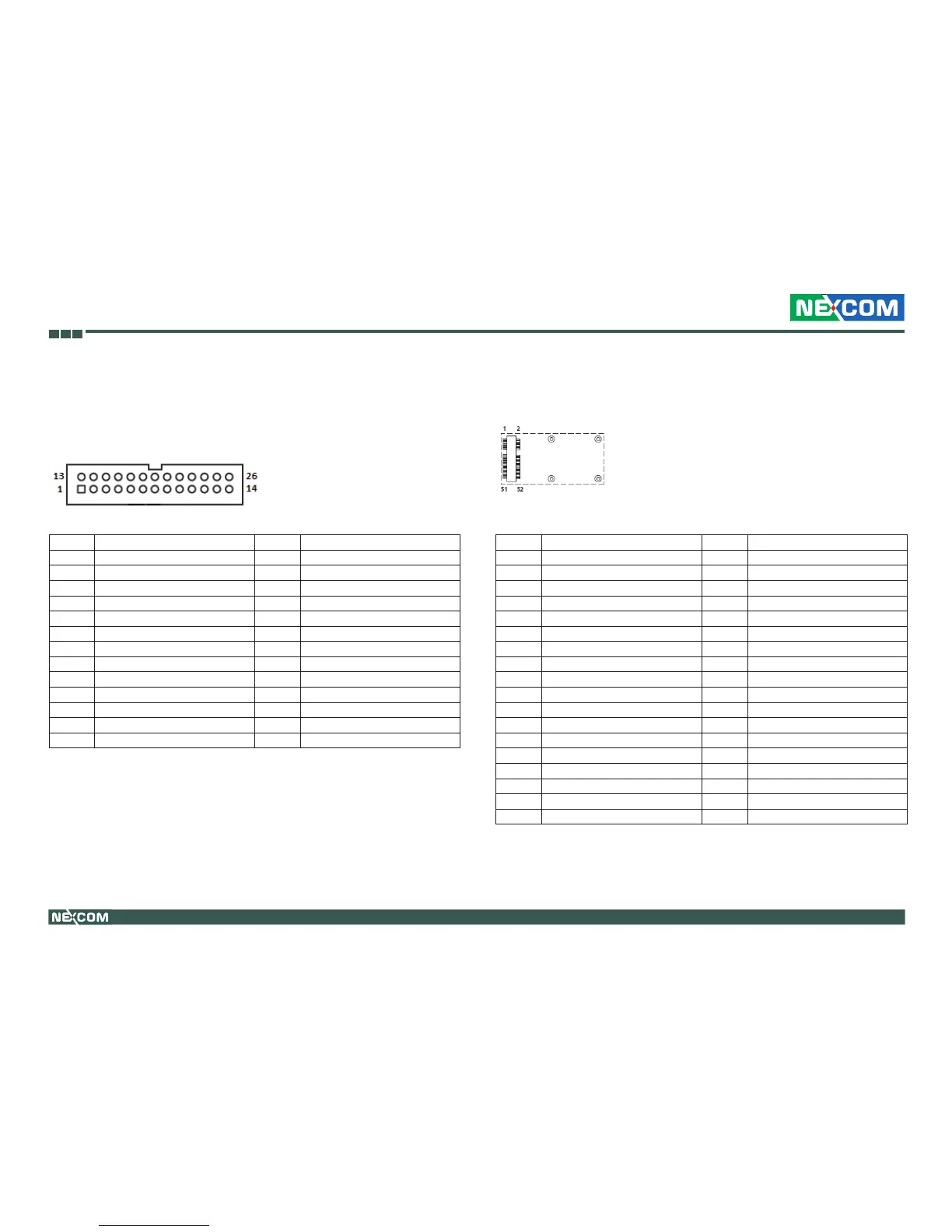

PIO Connector
Connector type: 2x13 26-pin header
Connector location: CN14
Pin Definition Pin Definition
1 STB# 2 D0
3 D1 4 D2
5 D3 6 D4
7 D5 8 D6
9 D7 10 ACK#
11 BUSY 12 PE
13 SLCT 14 AFD#
15 ERR# 16 INIT#
17 SLIN# 18 GND
19 GND 20 GND
21 GND 22 GND
23 GND 24 GND
25 GND 26 GND
Mini-PCIe Slot (3.5G)
Connector location: CN4
Pin Definition Pin Definition
1 WAKE# 2 3VSB
3 NC 4 GND
5 NC 6 1.5VSB
7 Pull high 100k to 3VSB 8 NC
9 GND 10 NC
11 REFCLK- 12 NC
13 REFCLK+ 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 Pull high 100k to 3VSB
21 GND 22 PERST#
23 PE_RX- 24 3VSB
25 PE_RX+ 26 GND
27 GND 28 1.5VSB
29 GND 30 NC
31 PE_TX- 32 NC
33 PE_TX+ 34 GND
35 GND 36 USB-
