Chapter 2: Jumpers and Connectors
NEX 605 User Manual

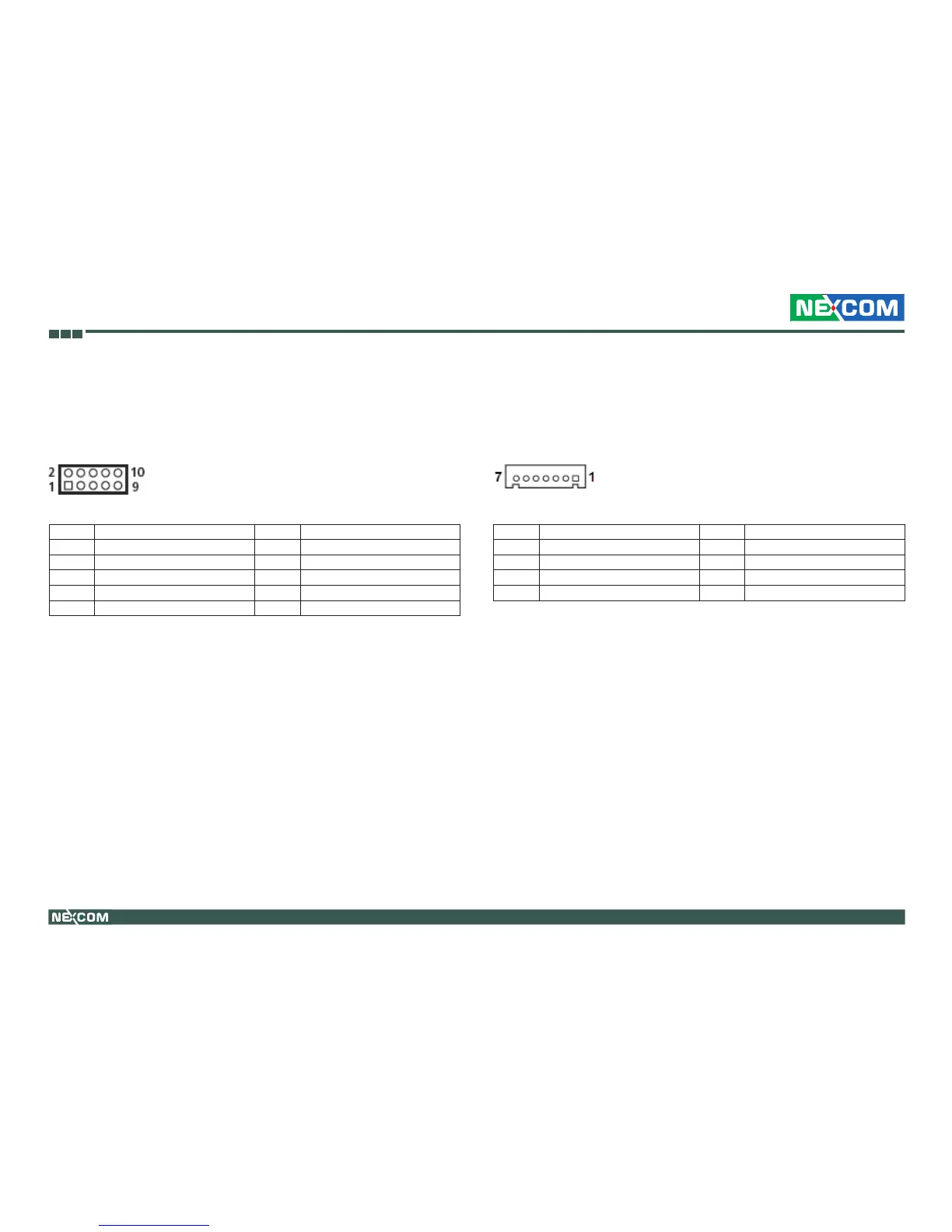

USB8/9 Connector
Connector type: 2x5 10-pin header
Connector location: J3
LVDS Backlight Connector
Connector type: 1x7 JST, 7-pin header
Connector location: J4
Pin Definition Pin Definition
1 +5V 2 Backlight power(+12V)
3 Backlight power(+12V) 4 Backlight brightness control
5 GND 6 GND
7 Backlight enable
Pin Definition Pin Definition
1 5VDUAL 2 5VDUAL
3 DATA8_N 4 DATA9_N
5 DATA8_P 6 DATA9_P
7 GND 8 GND
9 NC 10 NC
