Chapter 2: Jumpers and Connectors
NEX 605 User Manual

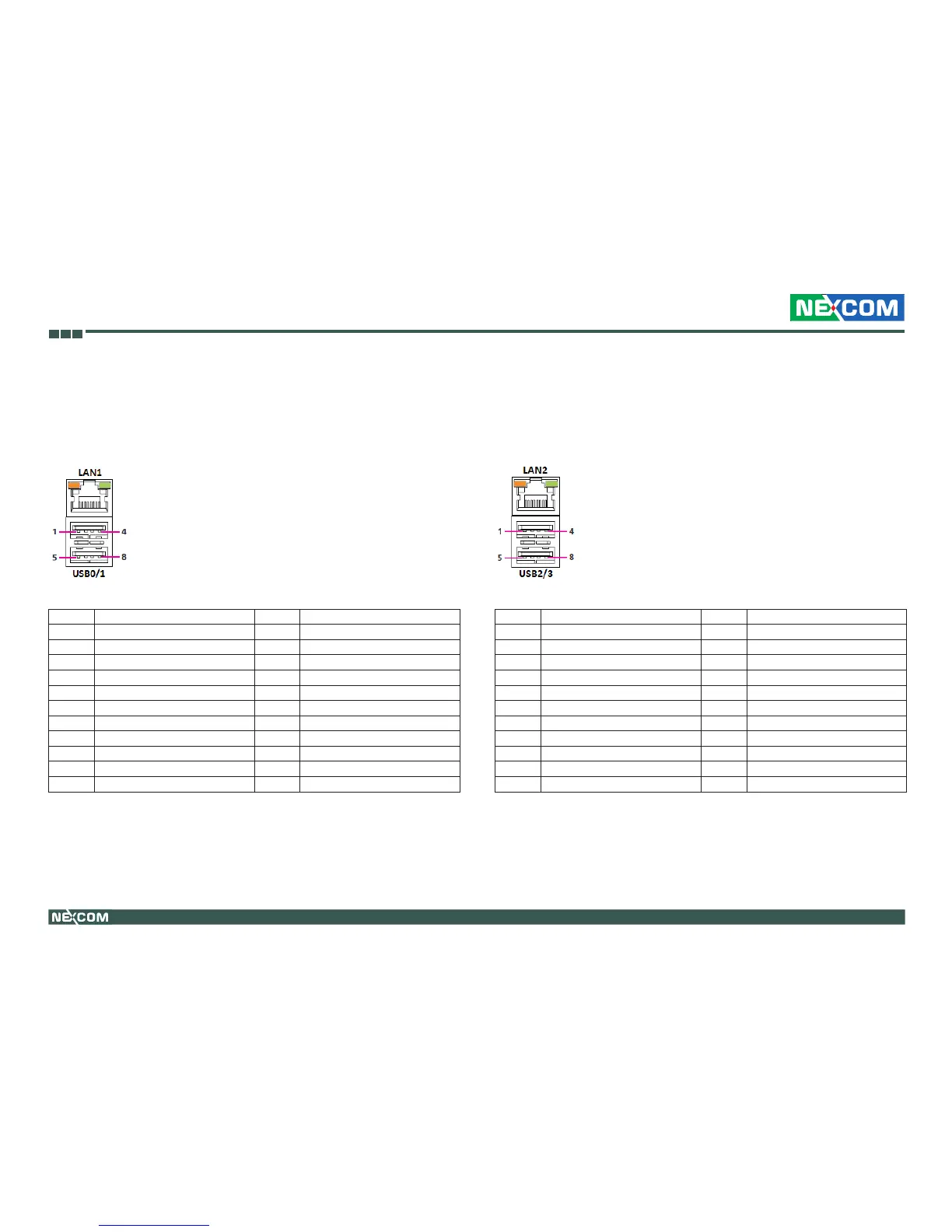

LAN1 and USB0/1 Ports
Connector type: RJ45 port with LEDS (LAN1)
Dual USB port, Type A (USB0/1)
Connector location: CN6
Pin Definition Pin Definition
1 5VDUAL 2 USB0_N
3 USB0_P 4 GND
5 5VDUAL 6 USB1_N
7 USB1_P 8 GND
9 TCT 10 LAN1_MDI0P
11 LAN1_MDI0N 12 LAN1_MDI1P
13 LAN1_MDI1N 14 LAN1_MDI2P
15 LAN1_MDI2N 16 LAN1_MDI3P
17 LAN1_MDI3N 18 GND
19 LAN1_100M# 20 LAN1_1G#
21 LAN1_ACTLED# 22 LAN1_ACTLED# POWER
LAN2 and USB2/3 Ports
Connector type: RJ45 port with LEDS (LAN2)
Dual USB port, Type A (USB2/3)
Connector location: CN3
Pin Definition Pin Definition
1 5VDUAL 2 USB2_N
3 USB2_P 4 GND
5 5VDUAL 6 USB3_N
7 USB3_P 8 GND
9 TCT 10 LAN2_MDI0P
11 LAN2_MDI0N 12 LAN2_MDI1P
13 LAN2_MDI1N 14 LAN2_MDI2P
15 LAN2_MDI2N 16 LAN2_MDI3P
17 LAN2_MDI3N 18 GND
19 LAN2_100M# 20 LAN2_1G#
21 LAN2_ACTLED# 22 LAN2_ACTLED# POWER
