Nexcom NEX 605 - COM4 Connector (RS232); IR Connector

Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
20
Chapter 2: Jumpers and Connectors
NEX 605 User Manual

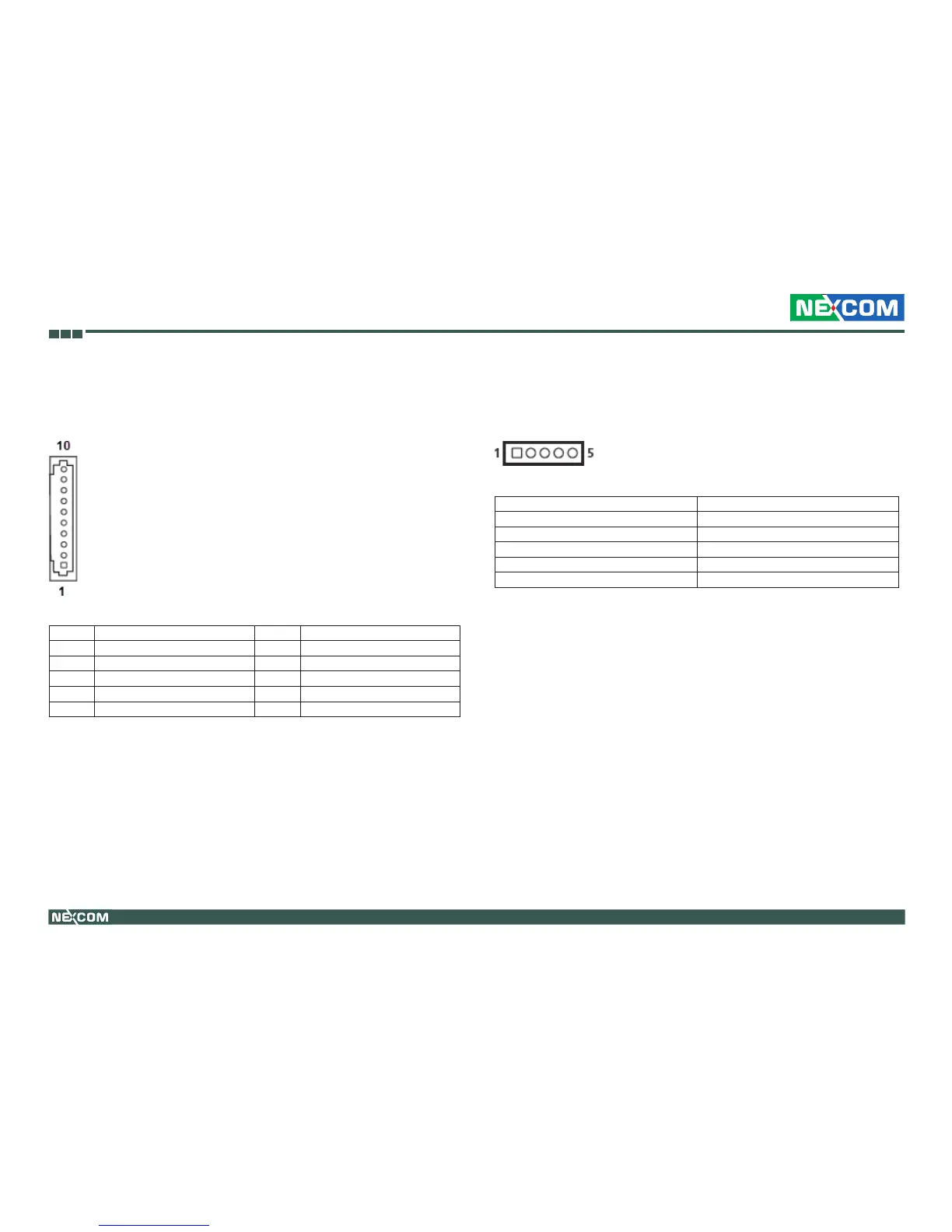

COM4 Connector (RS232)
Connector type: 1x10 10-pin header
Connector location: J9
IR Connector
Connector type: 1x5 5-pin header
Connector location: JP8
Pin Definition Pin Definition
1 DCD4 2 RXD4
3 TXD4 4 DTR4
5 GND 6 DSR4
7 RTS4 8 CTS4
9 RI4 10 GND
Pin Definition
1 +5V
2 NC
3 IRRX
4 GND
5 IRTX
