Chapter 2: Jumpers and Connectors
NEX 605 User Manual

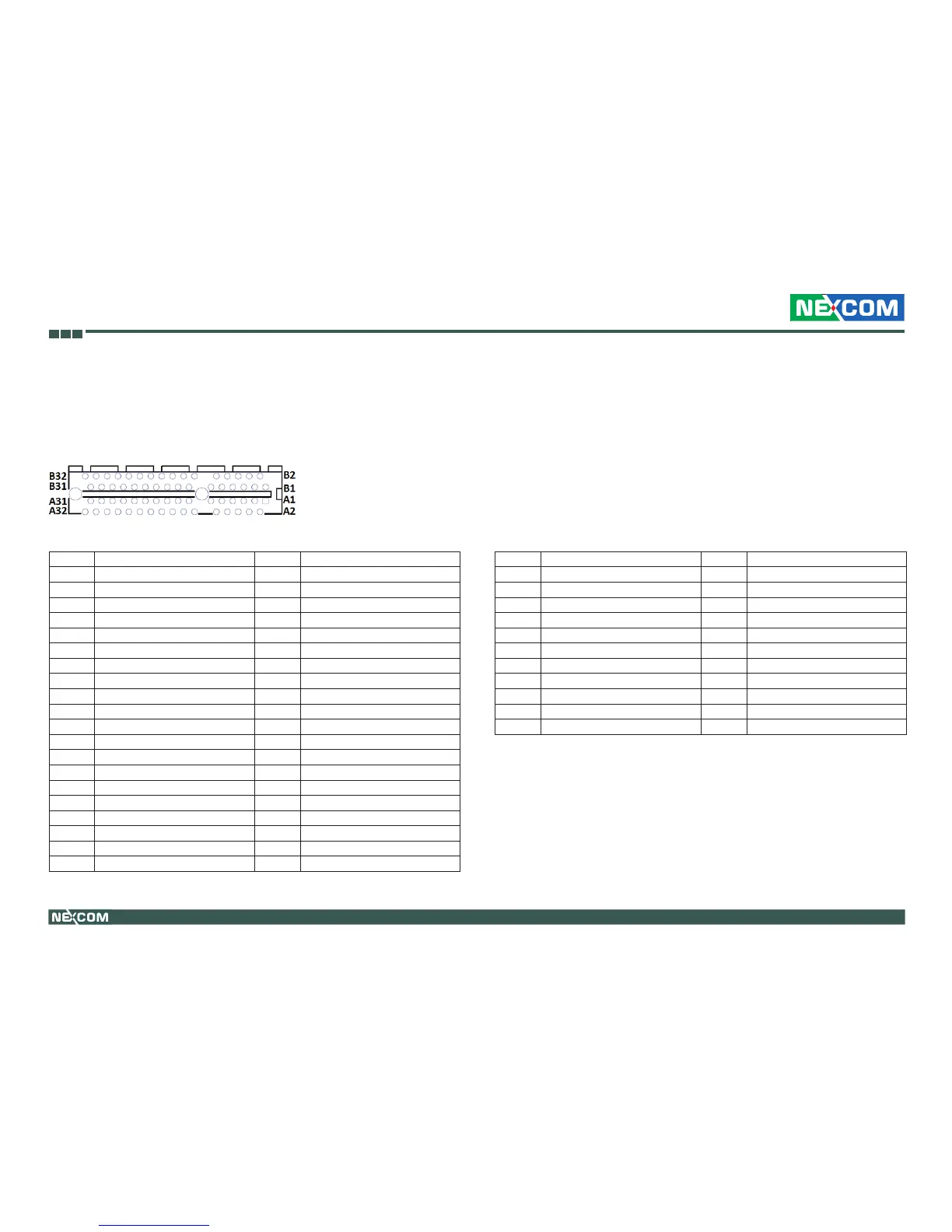

PCIe x4
Connector type: PCIe x4
Connector location: CN1
Pin Definition Pin Definition
A1 PRSNT1# B1 +12V
A2 +12V B2 +12V
A3 +12V B3 +12V
A4 GND B4 GND
A5 NC B5 SCL
A6 NC B6 SDA
A7 NC B7 GND
A8 NC B8 +3.3V
A9 +3.3V B9 NC
A10 +3.3V B10 3VSB
A11 PERST# B11 WAKE#
A12 GND B12 NC
A13 PE_CLK_P B13 GND
A14 PE_CLK_N B14 PE_TX1_P
A15 GND B15 PE_TX1_N
A16 PE_RX1_P B16 GND
A17 PE_RX1_N B17 PRSNT2#
A18 GND B18 GND
A19 NC B19 PE_TX2_P
A20 GND B20 PE_TX2_N
A21 PE_RX2_P B21 GND
A22 PE_RX2_N B22 GND
A23 GND B23 PE_TX3_P
A24 GND B24 PE_TX3_N
A25 PE_RX3_P B25 GND
A26 PE_RX3_N B26 GND
A27 GND B27 PE_TX4_P
A28 GND B28 PE_TX4_N
A29 PE_RX4_P B29 GND
A30 PE_RX4_N B30 NC
A31 GND B31 PRSNT3#
A32 NC B32 GND
