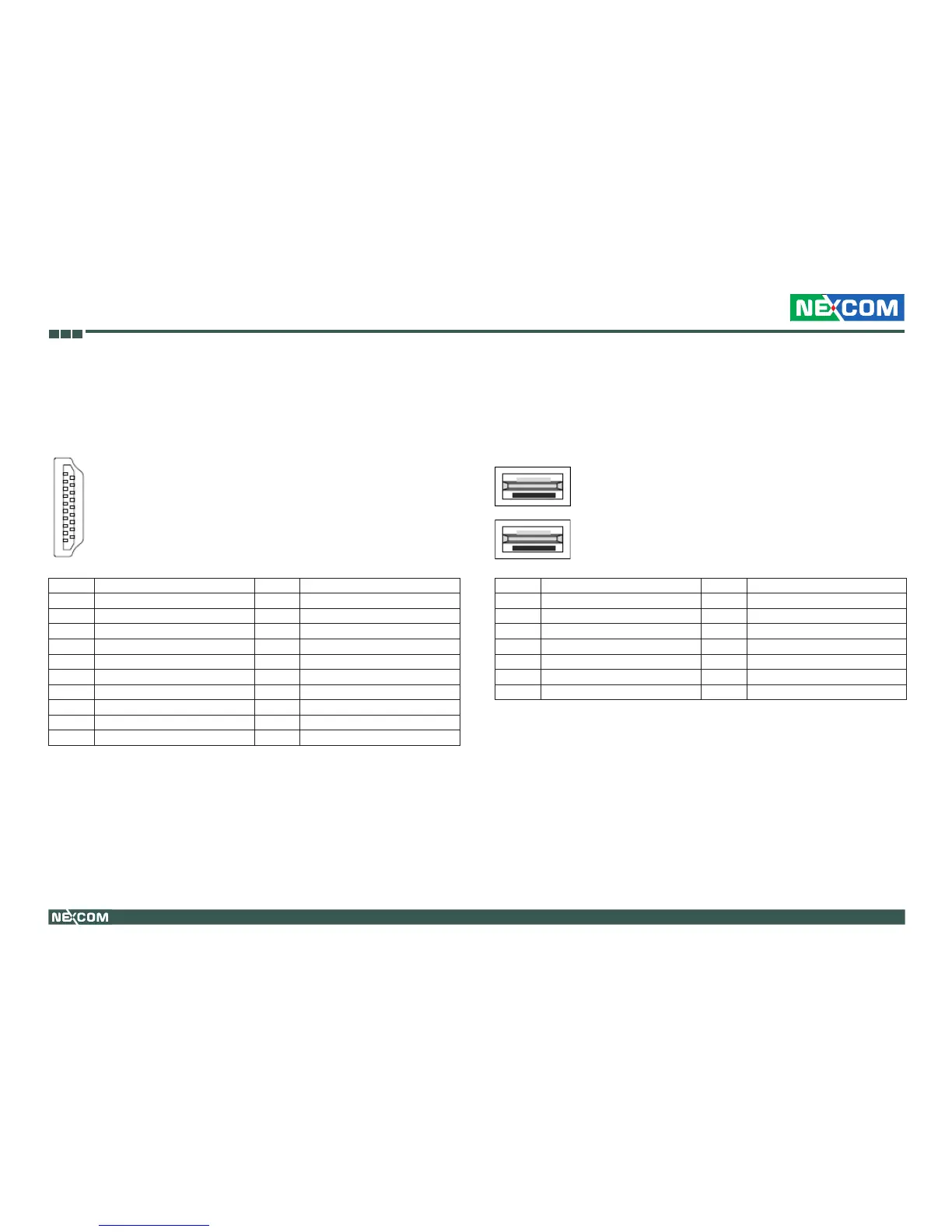

Chapter 2: Jumpers and Connectors
NEX 605 User Manual
HDMI
Connector type: HDMI port
Connector location: CN11
Dual eSata Ports
Connector type: eSATA port
Connector location: CON2
Pin Definition Pin Definition
A1 GND B1 GND
A2 SATA1_TXP B2 SATA0_TXP
A3 SATA1_TXN B3 SATA0_TXN
A4 GND B4 GND
A5 SATA1_RXN B5 SATA0_RXN
A6 SATA1_RXP B6 SATA0_RXP
A7 GND B7 GND
Pin Definition Pin Definition
1 Data2+ 2 GND
3 Data2– 4 Data1+
5 GND 6 Data1–
7 Data0+ 8 GND
9 Data0– 10 Clock+
11 GND 12 Clock-
13 NC 14 NC
15 HDMI SCL 16 HDMI SDA
17 GND 18 +5V
19 HPD 20
