Chapter 2: Jumpers and Connectors

NEX 605 User Manual

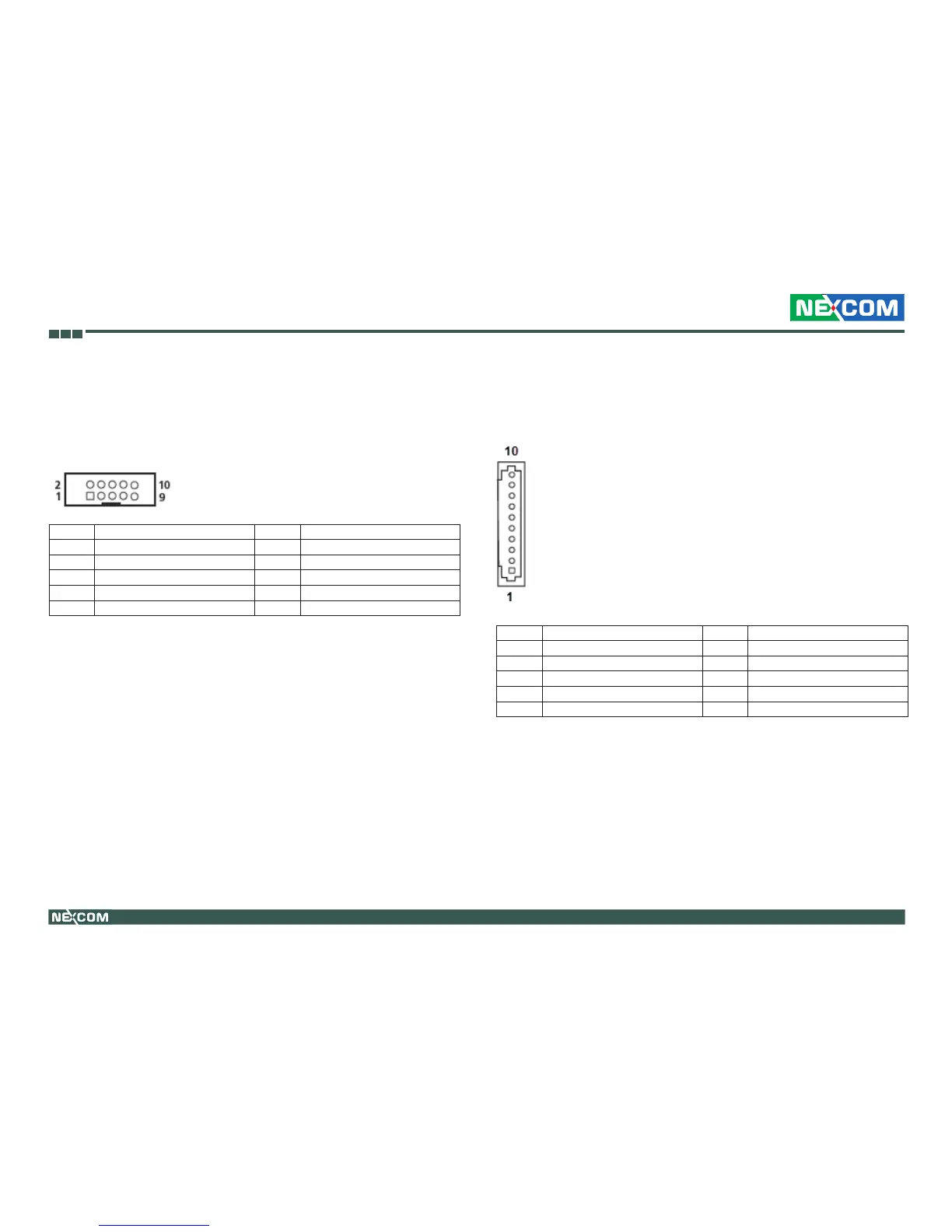

COM2 Connector (RS232)

Connector type: 2x5 10-pin header

Connector location: CN15

COM3 Connector (RS232)

Connector type: 1x10 10-pin header

Connector location: J10

Pin Definition Pin Definition

1 DCD3 2 RXD3

3 TXD3 4 DTR3

5 GND 6 DSR3

7 RTS3 8 CTS3

9 RI3 10 GND

Pin Definition Pin Definition

1 DCD2 2 RXD2

3 TXD2 4 DTR2

5 GND 6 DSR2

7 RTS2 8 CTS2

9 RI2 10 GND
