Chapter 2: Jumpers and Connectors
NEX 605 User Manual
Internal Connectors

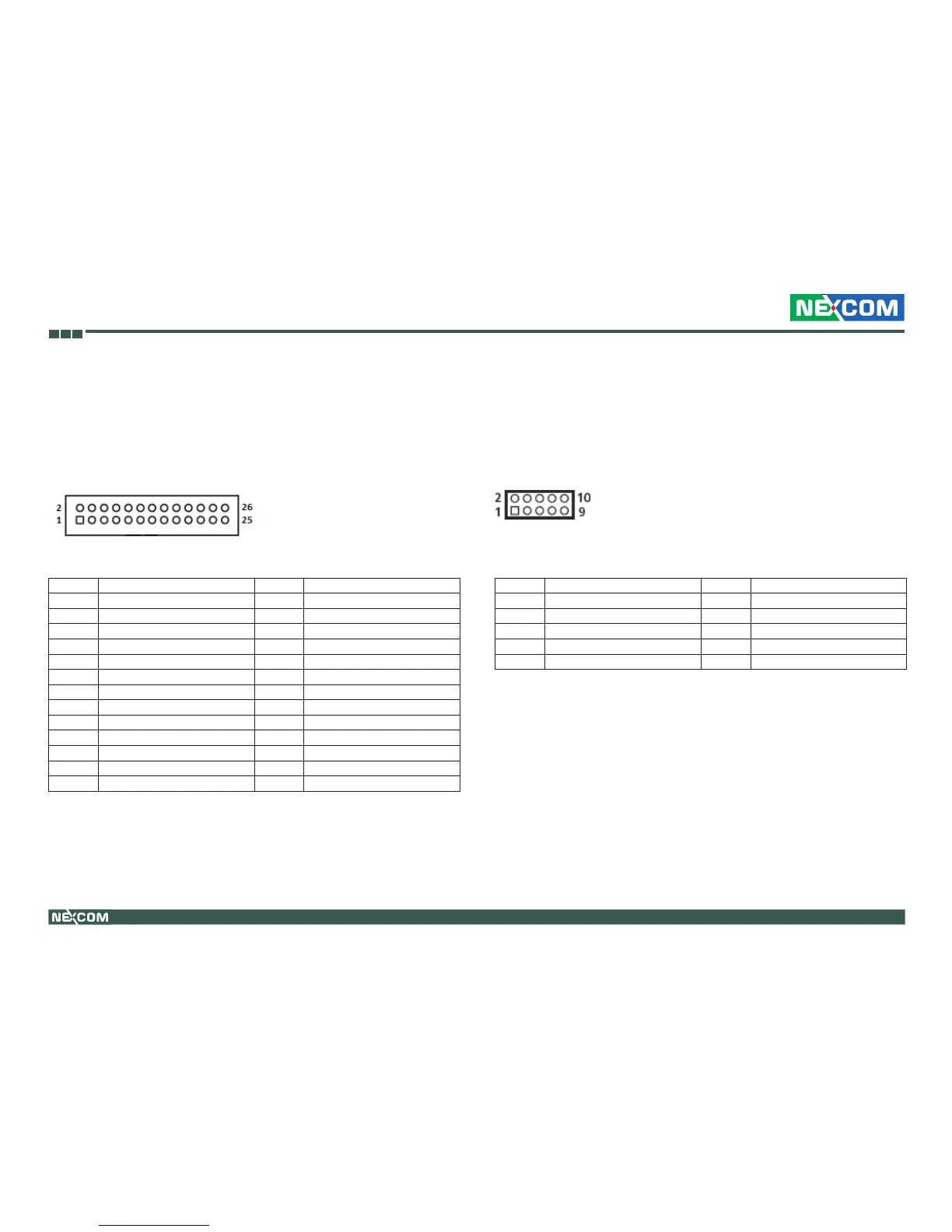

SATA and LAN LED Connectors
Connector type: 2x13 26-pin header
Connector location: JP4
Pin Definition Pin Definition
1 +3.3V 2 GND
3 SATA0_P_LED 4 SATA0_S_LED
5 SATA1_P_LED 6 SATA1_S_LED
7 SATA2_P_LED 8 SATA2_S_LED
9 SATA3_P_LED 10 SATA3_S_LED
11 SATA4_P_LED 12 SATA4_S_LED
13 SATA5_P_LED 14 SATA5_S_LED
15 SYS_P_LED 16 SYS_S_LED
17 NC 18 GND
19 +3.3V 20 SATALED_N
21 3VSB 22 LAN1_ACT_N
23 3VSB 24 LAN2_ACT_N
25 PWRBTN+ 26 PWRBTN+
FP Control Connector
Connector type: 2x5 10-pin header
Connector location: JFP1
Pin Definition Pin Definition
1 SATA_LED_P 2 PWR_LED_P
3 SATA_LED_N 4 GND
5 GND 6 PWRBT_N
7 RST_BTN_N 8 GND
9 NC
