Chapter 2: Jumpers and Connectors
NEX 605 User Manual

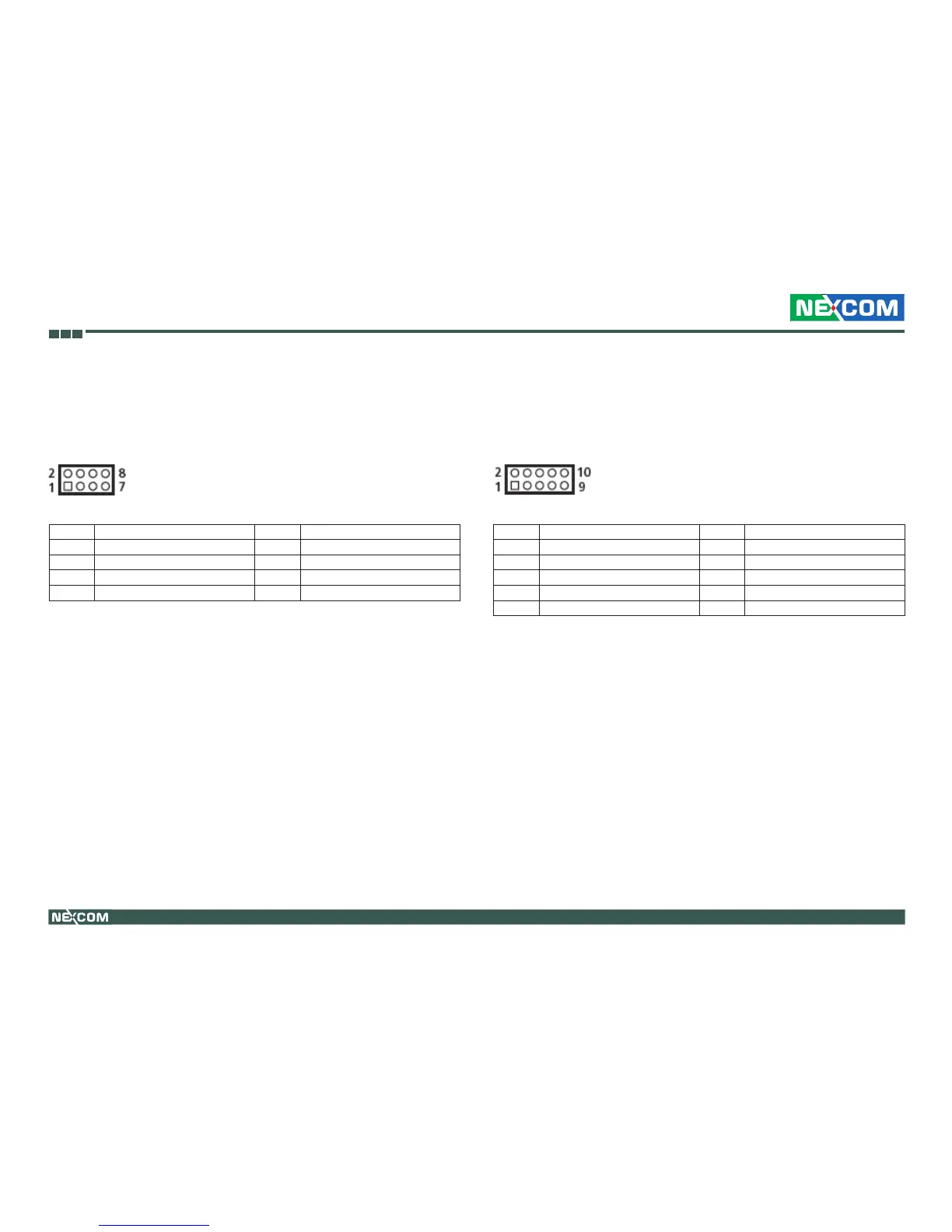

SGPIO (SFF-8485) connector
Connector type: 2x4 8-pin header
Connector location: JP6
USB6/7 Connector
Connector type: 2x5 10-pin header
Connector location: J2
Pin Definition Pin Definition
1 5VDUAL 2 5VDUAL
3 DATA6_N 4 DATA7_N
5 DATA6_P 6 DATA7_P
7 GND 8 GND
9 NC 10 NC
Pin Definition Pin Definition
1 SCLOCK 2 SDATAOUT0
3 SLOAD 4 SDATAOUT1
5 +3.3V 6 GND
7 GND 8 NC
