Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
22
Chapter 2: Jumpers and Connectors
NEX 605 User Manual

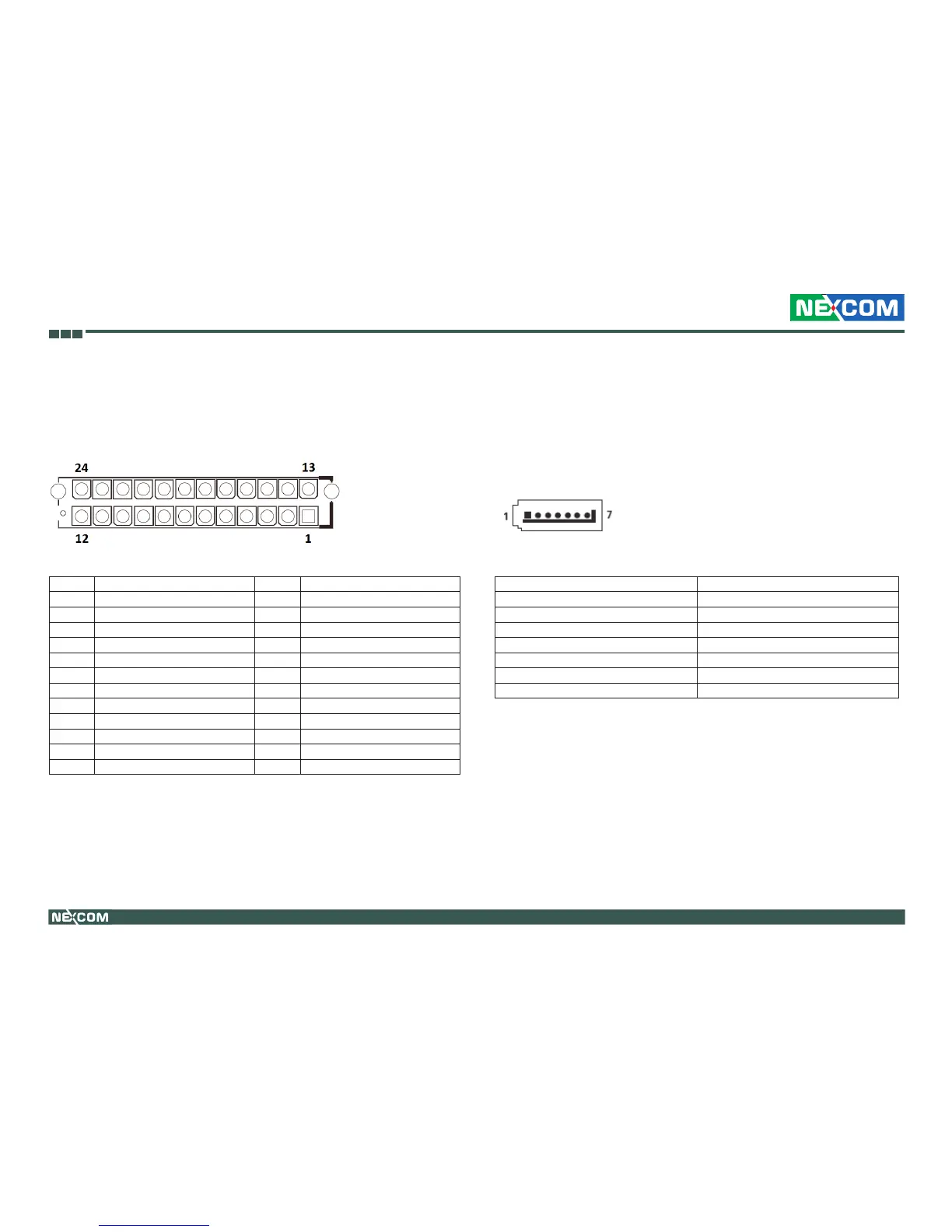

ATX Power Connector
Connector type: 2x12 24-pin header
Connector location: CON1
SATA 2.0 Connectors
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180)
Connector location: CN17 (SATA1), CN7 (SATA2), CN9 (SATA3), CN10
(SATA4), CN8 (SATA5)
Pin Definition Pin Definition
1 +3.3V 2 +3.3V
3 GND 4 +5V
5 GND 6 +5V
7 GND 8 POWEROK
9 +5VSB 10 +12V
11 +12V 12 +3.3V
13 +3.3V 14 NC
15 GND 16 PS-ON
17 GND 18 GND
19 GND 20 NC
21 +5V 22 +5V
23 +5V 24 GND
Pin Definition
1 GND
2 SATA_TX_P
3 SATA_TX_N
4 GND
5 SATA_RX_P
6 SATA_RX_N
7 GND
