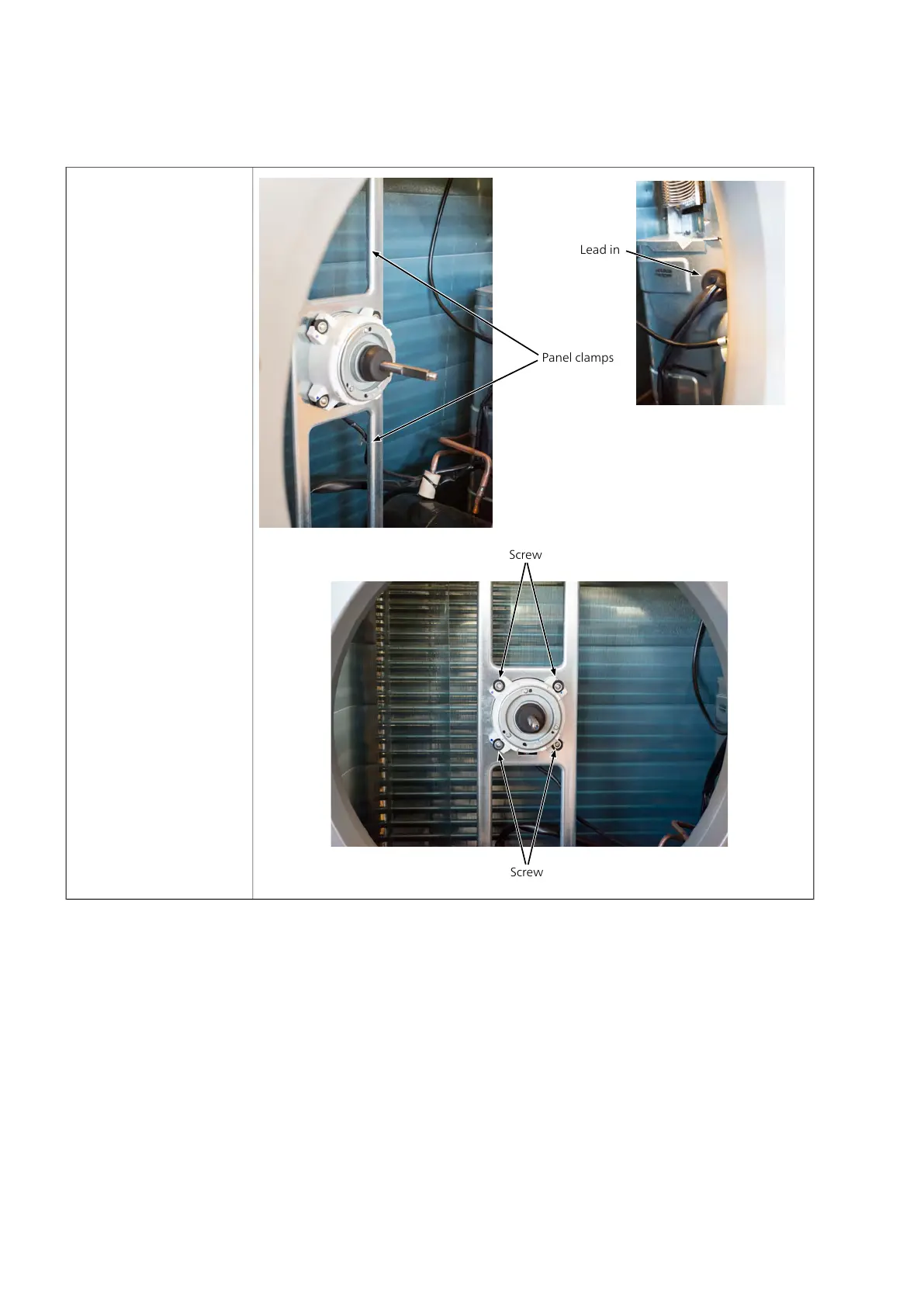

Panel clamps
Lead in
6. Bend up the panel clamps,
on the rear of the fan
mounting, that hold the
electrical cable in position.
7. Route the fan cable
through the lead-in to the
fan motor.
7. Slacken off/remove the
four screws holding the fan
motor in place and remove
it forwards.
8. Assembly takes place in
the reverse order.
Screw
Screw
85Chapter 7 | Component replacementNIBE™ F2040
