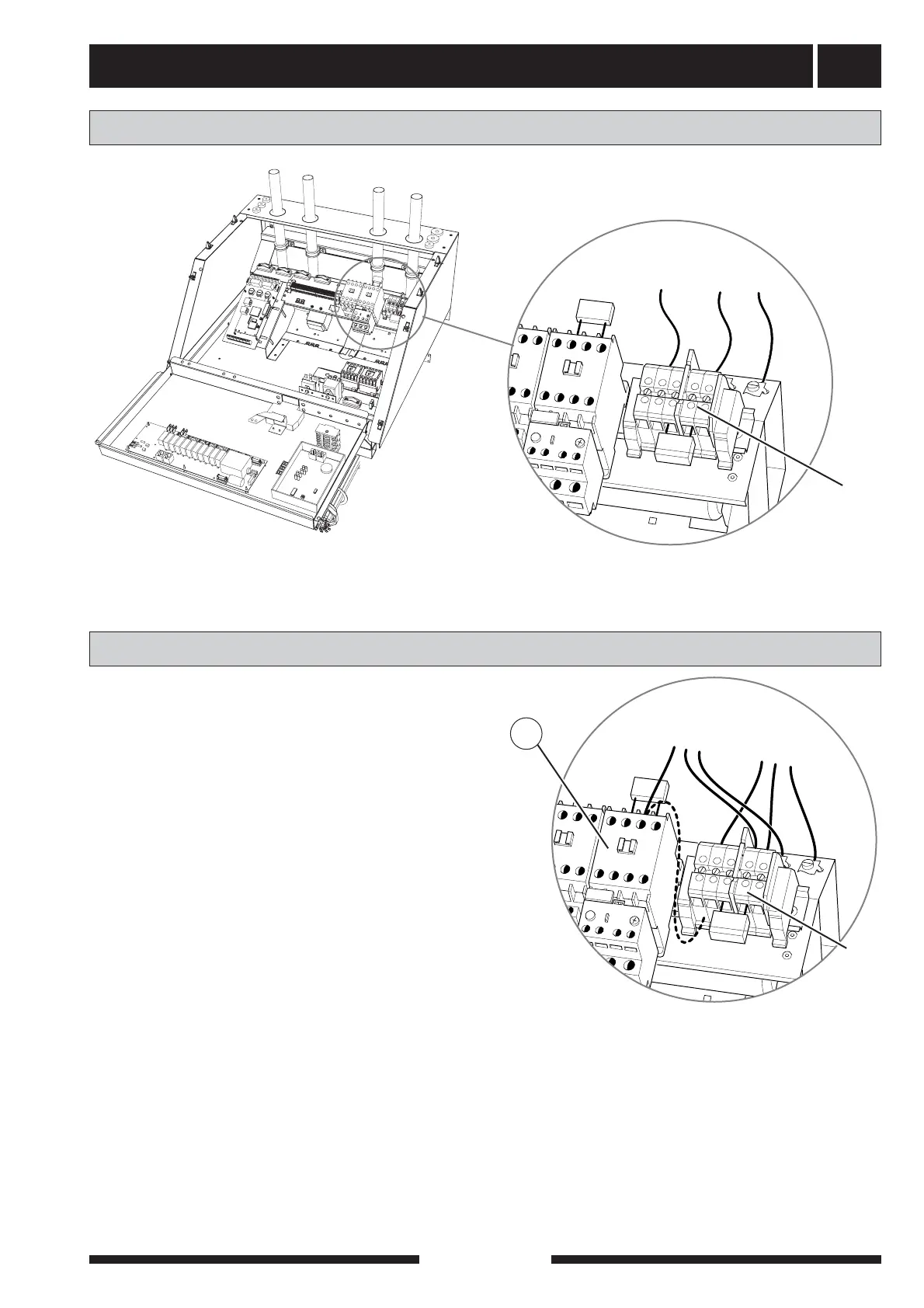

Connection on delivery 230 V -5
-X9
230 V: The heat pump is connected on terminal block
-X9 to 230 V + PE via the junction box with fuses.
When a separate supply to the compressor and immer-
sion heater is required, to give them separate tariff con-
trol, the following should be done:
■ Remove the cable (the dotted line) between the
terminal block -X9 and the compressor contactor
(69). Connect the supply directly to the contactor
according to the picture.
Tariff connection 230 V -5
69
compressor
immersion
heater
-X9
