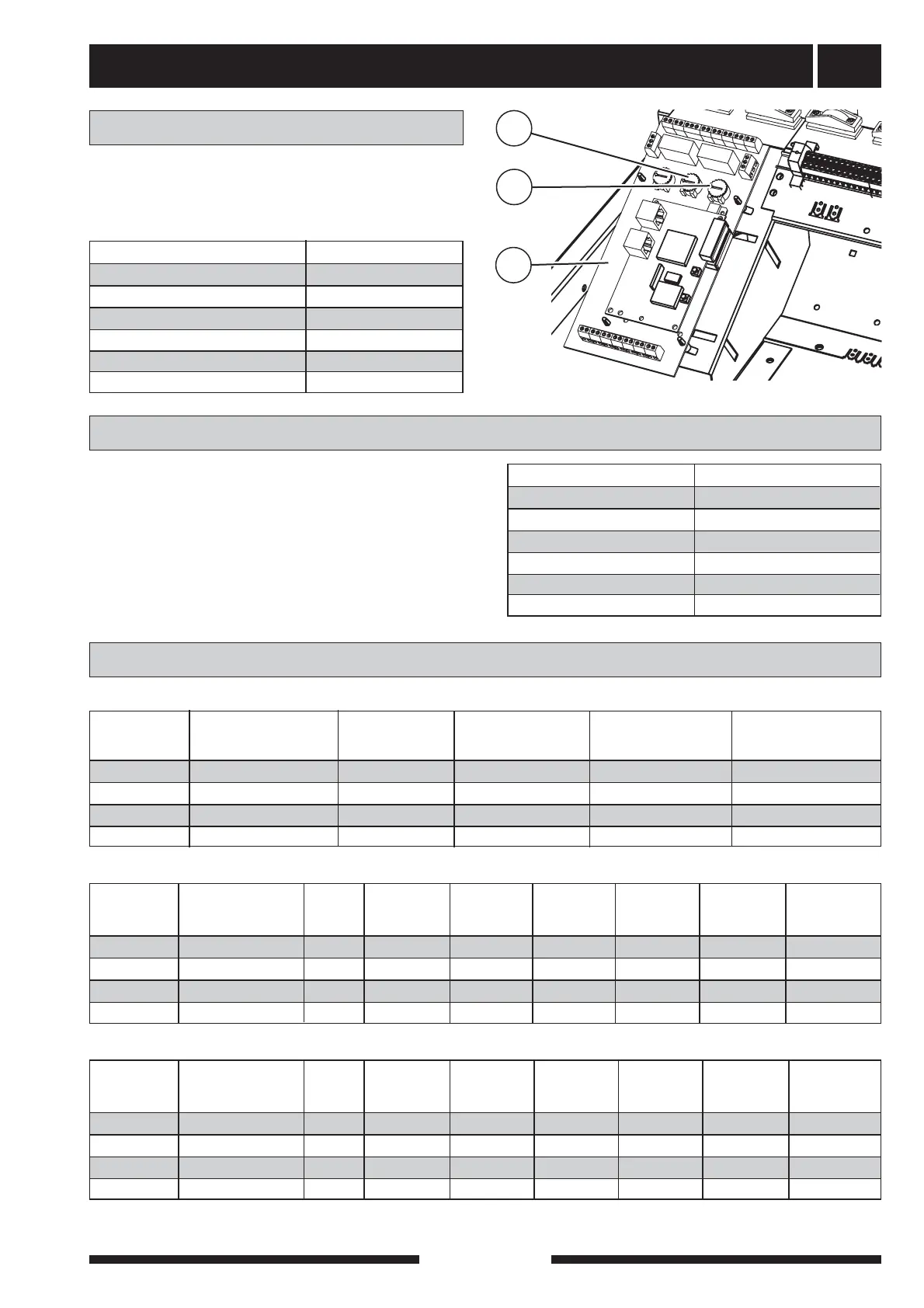

Nibe FIGHTER 1120 - Max Hot Water Temperature; Max. Electrical Addition; Max Phase Current Including Electrical Addition, Binary 3 Steps

Electrical connection
19
FIGHTER 1120
The setting of the different maximum hot water tem-
peratures is done using the knob (102) on the load
monitor card (2). The setting can be checked in the
menu 9.2.1.
The setting of the different max outputs is done using
the knob (101) on the load monitor card (2). The set-
ting can be checked in the menu 8.3.5.
The immersion heater is set in the menu 9.2.13.2.
Possible settings are: “Binary 3 steps”, “Linear 3
steps”, “Binary 7 steps” and “Off”.
“Binary 3 steps” should be selected when ETS
12/ETS 121 is connected.
65 C*
75 E
50 A
Boiler temperature Knob position
55 B
70 D
80 F
101
102
2
Max. electrical addition
2C
5E
0A
No. of steps Knob position
1 B
3D
7F
Max phase current including electrical addition, binary 3 steps
Max hot water temperature
*Factory setting.
9 6 C* 13,6 15,5 16,7 18,6 21,7 23,4
9 0 A 4,9 6,8 8,0 10 13,1 14,8
Max electrical Immersion heater, Knob Max phase (A) Max phase (A) Max phase (A) Max phase (A) Max phase (A) Max phase (A)
output output (kW) position Type 6 Type 8 Type 10 Type 12 Type 15 Type 17
9 3 B 9,2 11,1 12,3 14,3 17,4 19,1
9 9 D 17,9 19,8 21,0 22,9 26,0 27,7
6 4 C* 26,7 34,0 40,9
6 0 A 9,0 16,3 23,5
Max electrical Immersion heater, Knob position Max. phase (A) Max phase (A) Max phase (A)
output output (kW) Type 5 Type 8 Type 12
6 2 B 18,0 25,3 32,2
6 6 D 35,4 42,7 49,6
3 x 230 V for FIGHTER 1120 with ETS 12
3 x 400 V for FIGHTER 1120 with ETS 12
6 4 C* 27,3 29,3 31,3 34,9 37,9 41,9
6 0 A 12,3 14,3 16,3 19,9 22,9 26,9
Max electrical Immersion heater, Knob Max phase (A) Max phase (A) Max phase (A) Max phase (A) Max phase (A) Max phase (A)
output output (kW) position Type 6 Type 8 Type 10 Type 12 Type 15 Type 17
6 2 B 19,8 21,8 23,8 27,4 30,4 34,4
6 6 D 31,3 33,3 35,3 38,9 41,9 45,9
230 V for FIGHTER 1120 with ETS 121
