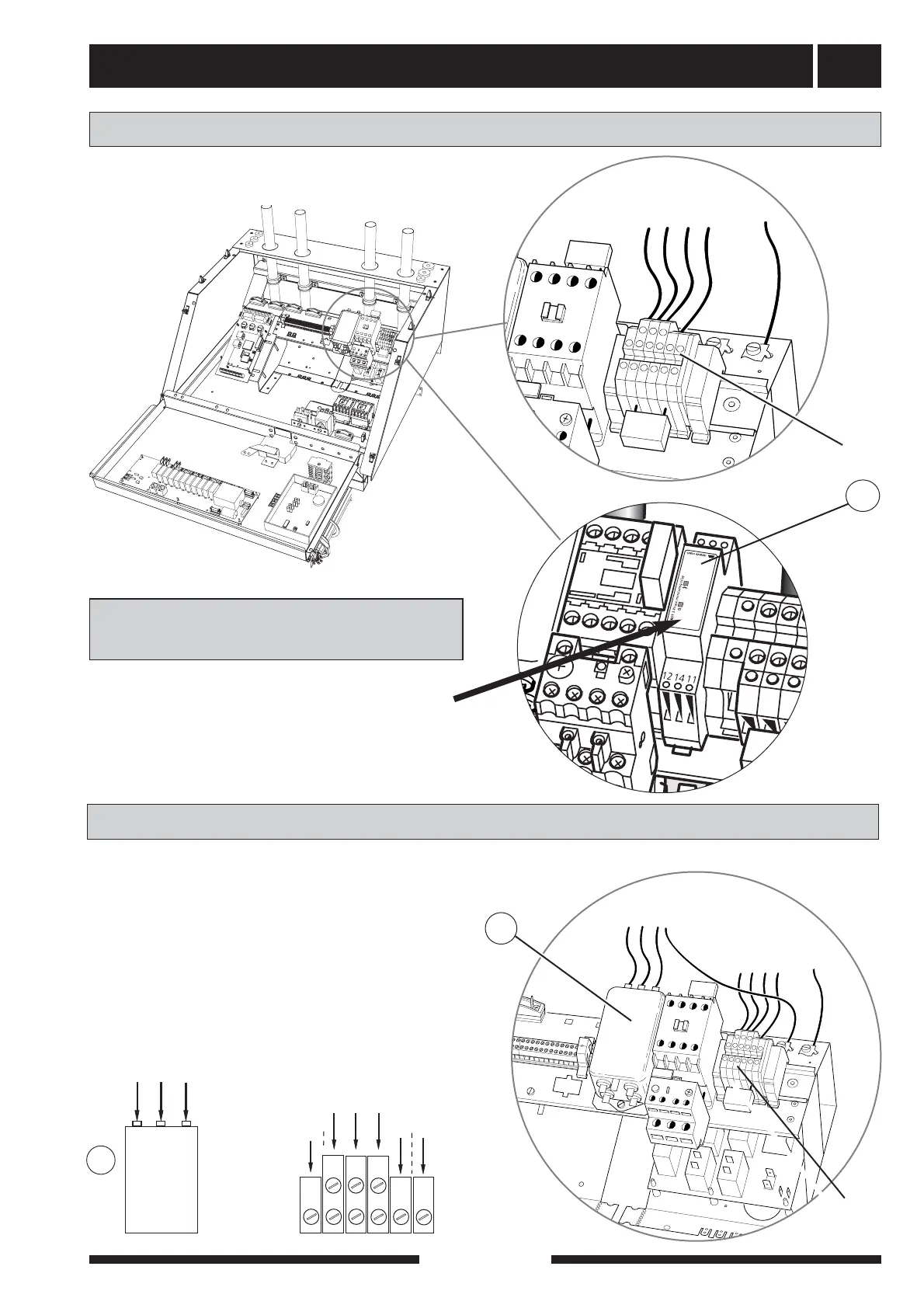

Nibe FIGHTER 1120 - Connection on Delivery 3 X 400 V; Tariff Connection 3 X 400 V

L1
L2
L3
60
Line
Load
L
L1
L2
L3
N
O
-X9
PEN
L
1
L
2
L
3
PE
L
1
L
2
L
3
Electrical connection 17
FIGHTER 1120
PEN
L
1
L
2
L
3
When a separate supply to the compressor, immersion
heater and the control system is required, to give them
separate tariff control, the following should be done:
■ Remove the 3 cables between terminal block -X9
and the EMC filter (60). Connect the supply directly
to the EMC filter.
■ Remove the 2 orange straps on terminal block -X9
and connect the control voltage to the outermost
terminals marked L and N on the wiring diagram.
Tariff connection 3 x 400 V + N + PE
Separate supply
additional heat
Separate supply
control system
Separate supply
compressor
-X9
-X9
Connection on delivery 3 x 400 V + N + PE
The heat pump is connected on terminal block -X9 to
3 x 400 V + N + PE via the junction box with fuses.
compressor
immersion
heater
60
Separate supply
control system
Phase sequence monitor
FIGHTER 1120- 15, 17 3x400V
■ Orange LED is lit at correct phase
sequence.
■ Green LED is lit when there is power.
