Nibe FIGHTER 1120 - Page 29

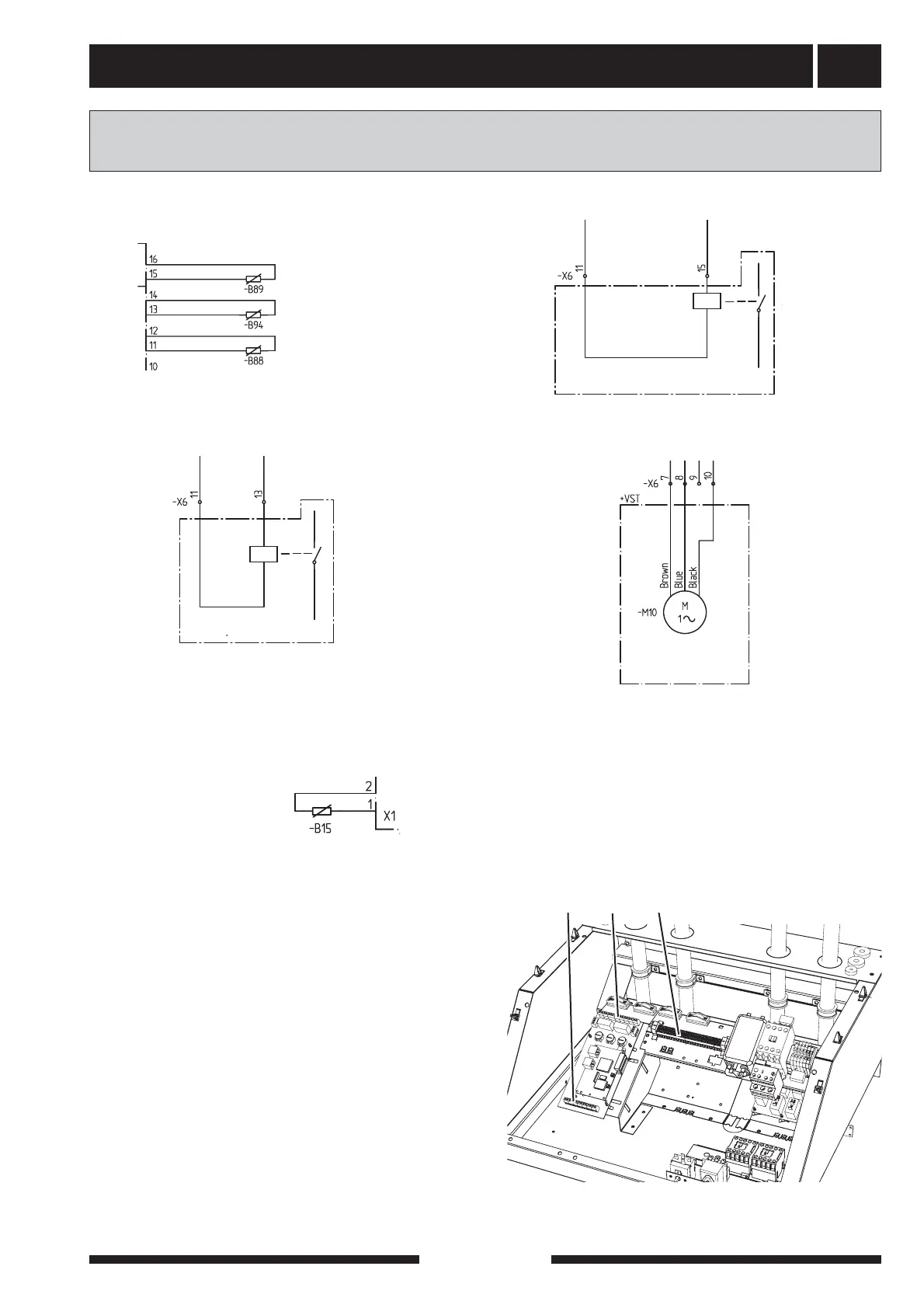

Connection VST 11*
Immersion heater connection for XHW
Gas boiler connection
Docking
27
FIGHTER 1120
Option 2 - FIGHTER 1120 docked to a gas boiler
(floating condensing)
* Accessories. The figures show how the connection
should appear when completed. For full information
about the connections see respective “Installation
instructions”
X4
Gaspanna
Elpatron för XVV
Hot water, jacket (VVG)
Return sensor 1 (RG)
Flow line sensor 1 (FG)
Sensor connection
X4
X1
-X6
Connection of the outside temperature
sensor
Outside temperature
sensor (UG)
Gas boiler
Immersion heater for XXV
Shuttle valve
