Nice Filo

English – 10
English

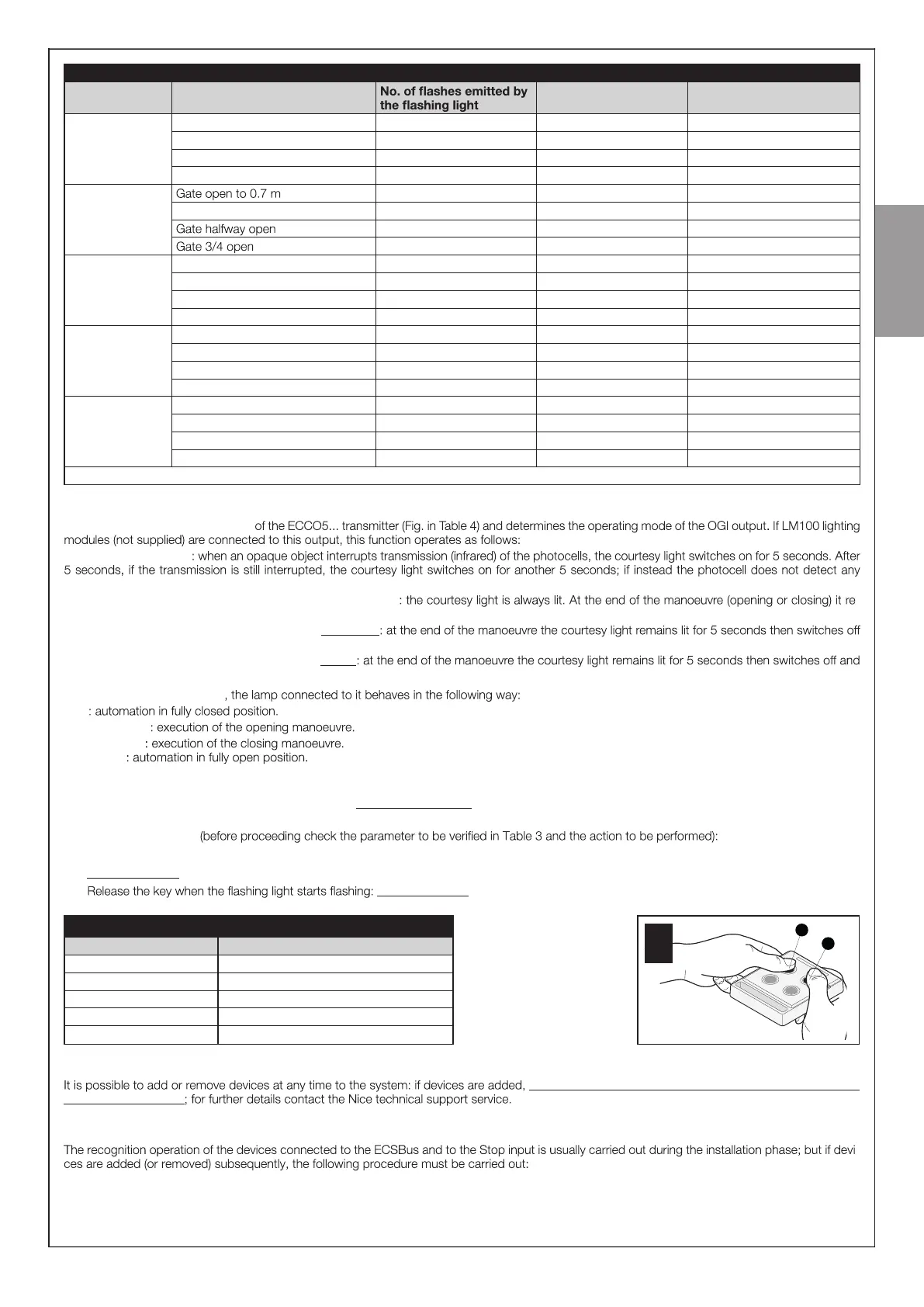

TABLE 2
Parameters Value Transmitter key to be
used
Actions to be performed
Pause time 10 sec 1 T1 Press T1 once
20 sec * 2 T1 Press T1 twice
40 sec 3 T1 Press T1 three times
60 sec 4 T1 Press T1 four times
Pedestrian
opening
1 T2 Press T2 once
Gate open to 1 m * 2 T2 Press T2 twice
3 T2 Press T2 three times
4 T2 Press T2 four times
Motor force Low 1 T3 Press T3 once
Medium-low * 2 T3 Press T3 twice
Medium-high 3 T3 Press T3 three times
High 4 T3 Press T3 four times
Step-by-Step
(SbS)
function
Open - Stop - Close - Stop 1 T4 Press T4 once
Open - Stop - Close - Open * 2 T4 Press T4 twice
Open - Close - Open - Close 3 T4 Press T4 three times
Opening only 4 T4 Press T4 four times
OGI (Open Gate
Indicator)
function
OGI * 1 T5 Press T5 once
30 sec courtesy light 2 T5 Press T5 twice
60 sec courtesy light 3 T5 Press T5 three times
Presence function 4 T5 Press T5 four times
* Factory value
9.1.2 - Presence function
This function is regulated by key T5
- with the gate closed
object, the courtesy light switches o.
- with the gate moving (opening and closing manoeuvre) -
mains lit for a further 5 seconds.
- with the gate open and automatic closing not active
and follows the gate’s behaviour when closed.
- with the gate open and automatic closing active
follows the gate’s behaviour when closed.
If the OGI function is active
- o
- slow ashing
- fast ashing
- steady lit
9.1.3 - Verifying the values set for each parameter (using the transmitter memorised in mode 1)
The check can be eected by means of any transmitter memorised in Mode 1 (as those supplied, see Paragraph 9.3.1). If there is no transmitter memo -
rised in Mode 1, it is possible to memorise one solely for programming purposes then cancelling it (see Paragraph 9.4).
Adjustment procedure
01. On the transmitter (Fig. 24 ) simultaneously press and hold buttons T1 and T2 for 5 seconds then release them.
02. Within 3 seconds from releasing them, perform the action specied in Table 3 to verify the desired parameter.
03. count the ashes . Check in Table 2 the value corresponding to the number of ashes.
TABLE 3
24
1
2
Parameters Actions to be performed
Pause time Press and hold key T1
Pedestrian opening Press and hold key T2
Motor force Press and hold key T3
S bS function Press and hold key T4
OGI function Press and hold key T5
9.2 - ADDING OR REMOVING DEVICES
it is important to verify that these are perfectly compatible with
FILO 400C/FILO 600C
9.2.1 - Memorising additional devices
-
