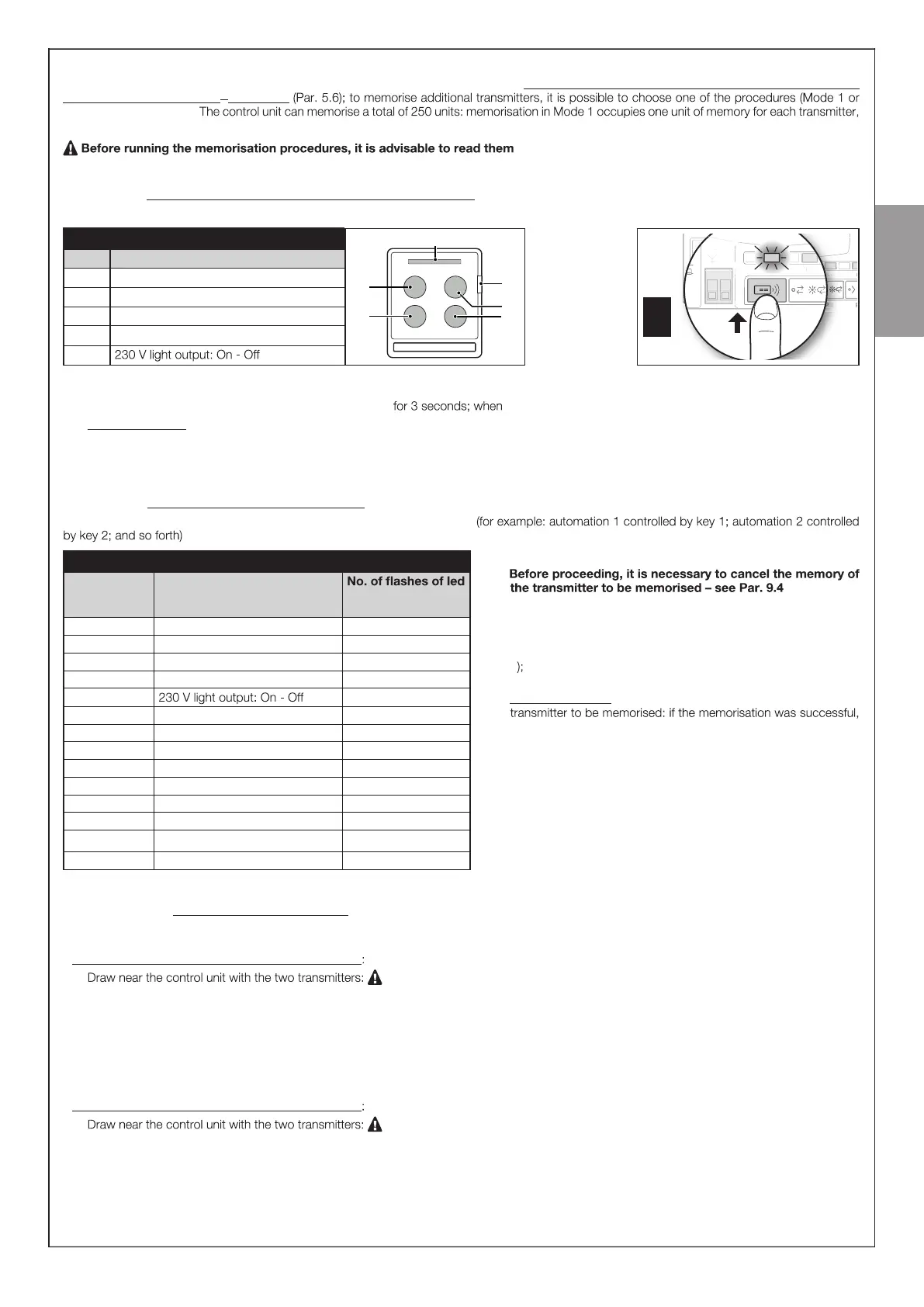

9.3 - MEMORISING ADDITIONAL TRANSMITTERS
The control unit incorporates a radio receiver for ECCO5 transmitters (various models). The transmitters supplied are not memorised, therefore it is rst
necessary to memorise the 1
st
transmitter
Mode 2) indicated below.
while the Mode 2 procedure occupies one unit of memory for each transmitter key.
and observe the indicated times.
9.3.1 - Mode 1 memorisation procedure (factory memorisation of the supplied transmitters)
This procedure allows for simultaneously memorising all the transmitter keys , by automatically pairing them to the commands shown in Table 5.
A transmitter memorised in Mode 1 can control only a single automation.
TABLE 5
LED
T5
T2
T4
T3
T1
Fuse 1.6A T
Flash
ECSbus
Stop
Aerial
Sb S
OGI
Fuse 15A
P4
L4 L3
L2
P3
P2
Sb S
L1
P1
F
use 1.
6A
T
Flas
h
E
CS
bu
s
S
top
S
b
S
OGI
u
se 1
5A
L2
P
2
S
b
S
L
1
P
1
Fu
L
L3
3
P
P3
3
3
P4
L4 L3
P3
P4
L4
L3
P3
Keys Paired command
T1 Step-by-step
T2 Partial open
T3 Open only
T4 Close only
T5
Memorisation procedure
01. On the control unit (Fig. 28) press and hold button P4 led L4 switches on, release the button.
02. Within 10 seconds from releasing it, press and hold for 3 seconds any button of the transmitter to be memorised.
If the memorisation procedure is successful, led L4 (on the control unit) will ash 3 times.
03. To memorise o ther transmitters, repeat step 02 within the next 10 seconds otherwise the memorisation phase will terminate automatically.
9.3.2 - Mode 2 memorisation procedure
This procedure allows for memorising one key at a time , by pairing one of the desired commands shown in Table 6.
A transmitter memorised in Mode 2 can control multiple automations
TABLE 6
Memorisation procedure
01.
.
02. In Table 6, choose the command and the number of press-down
actions to be eected on the desired transmitter key.
03. On the control unit (Fig. 29) press and release button P4 for a
number of times corresponding to the chosen command (Table
6 led L4 must emit a number of fast ashes corresponding to the
chosen command.
04. Within 10 seconds , press and hold for 2 seconds the key of the
led L4 (on the control unit) will ash 3 times.
05. To memorise other transmitters, with the same command, repeat
step 03 within 10 seconds, otherwise the memorisation phase will
terminate automatically.
No. of key
presses
Paired command
L4 on the control
unit
once Step-by-step 1
twice Pedestrian opening 2
3 times Open only 3
4 times Close only 4
5 times
5
6 times Stop 6
7 times Condominium open 7
8 times High priority open 8
9 times Pedestrian opening 2 9
10 times Pedestrian opening 3 10
11 times Open + lock automation 11
12 times Close + lock automation 12
13 times Lock automation 13
14 times Release automation 14
9.3.3 - Memorisation procedure near the control unit with two transmitters (without using the control unit keys)
With this procedure a NEW transmitter is memorised using a second transmitter (OLD) already memorised and operating, without using the keys of
the control unit but drawing close to the latter.
During the procedure the NEW transmitter is memorised in the same way that the OLD transmitter was memorised (Mode 1 or Mode 2).
• Procedure with OLD transmitter memorised in Mode 1
01.
Wait 1 second between one step and the next .
02. On the NEW transmitter press and hold any key for at least 8 seconds then release it.
03. On the OLD transmitter press and hold any key to be copied for at least 2 seconds then release it.
04. On the OLD transmitter press and hold any key to be copied for at least 2 seconds then release it.
05. On the OLD transmitter press and hold any key to be copied for at least 2 seconds then release it.
06.
On the NEW transmitter press and hold a key to be memorised for at least 5 seconds then release it.
Repeat the procedure for each transmitter to be memorised.
• Procedure with OLD transmitter memorised in Mode 2
01.
Wait 1 second between one step and the next .
02. On the NEW transmitter press and hold the key to be memorised for at least 8 seconds then release it.
03. On the OLD transmitter press and hold the key to be copied for at least 2 seconds then release it.
04. On the OLD transmitter press and hold the key to be copied for at least 2 seconds then release it.
05. On the OLD transmitter press and hold the key to be copied for at least 2 seconds then release it.
06. On the NEW transmitter press and hold the key to be memorised for at least 5 seconds then release it.
Repeat the procedure for each transmitter to be memorised.
