6 – English
English
5
PROGRAMMING
Step D
5.1 - CONTROL UNIT KEYS
The control unit has four programming keys with their respective LEDs:
keys P1, P2, P3, P4 and LEDs L1, L2, L3, L4 (Fig. 12)
P1 = Step-by-Step command
P2 = slow/fast movement speed selection (Par. 5.6.1)
P3 = semi-automatic/automatic operating cycle selection (Par.
5.6.2)
P4 = radio transmitter memorisation
5.2 - PRELIMINARY CHECKS
After powering up the control unit, a few straightforward checks should be carried out:

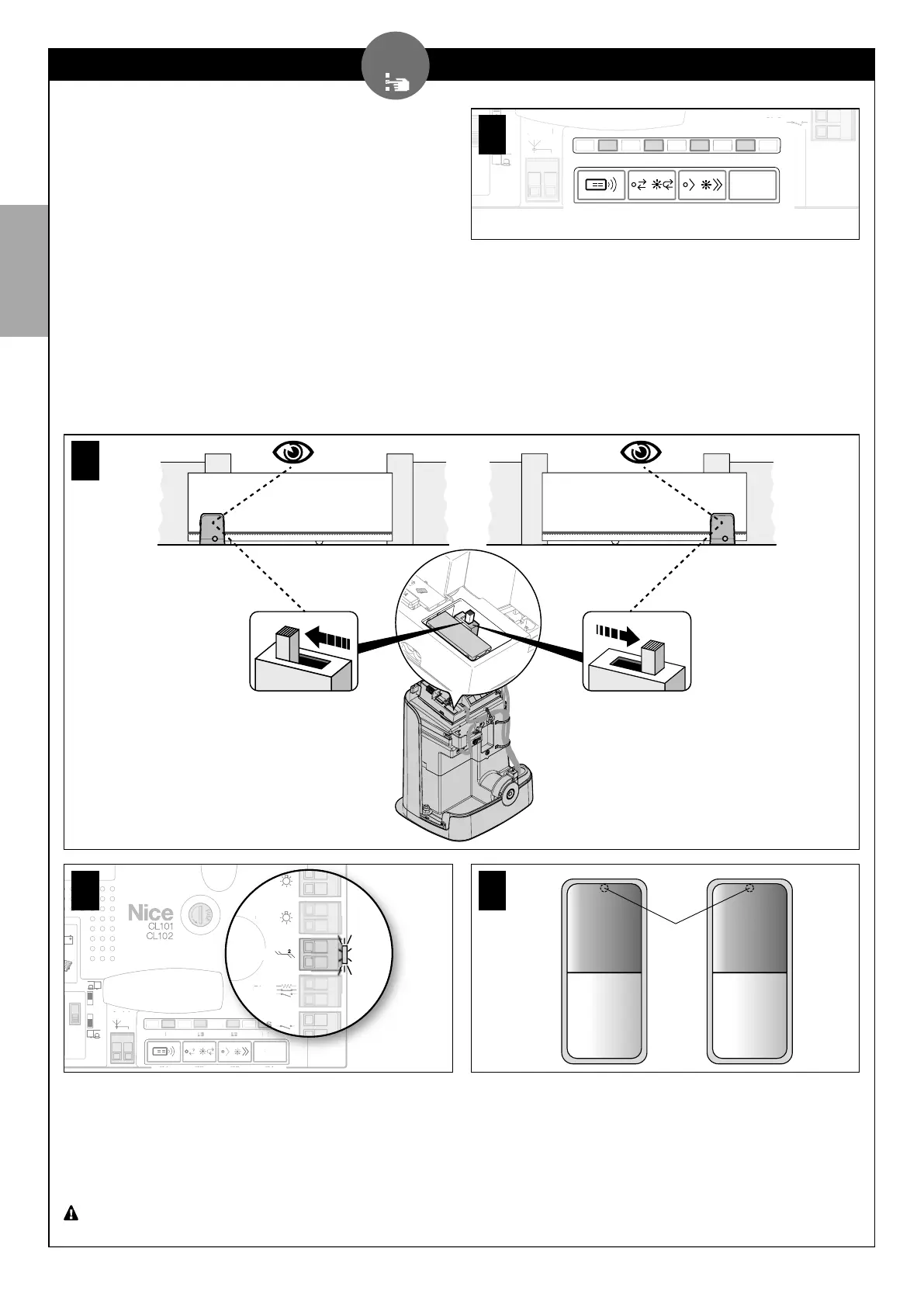

01. Depending on the gearmotor’s installation position ( to the right or left of the gate), shift the selector as shown in Fig. 13 to determine the gate’s
opening direction.
02. Check on the control unit (Fig. 14) that the ECSBus led ashes normally (roughly one ash each second).
02. On the Tx and Rx photocells (Fig. 15) check that the SAFE led ashes: the type of ash is unimportant as it depends on other factors; however,
it is important that the led is not always off or always lit.
03. If all these checks are non-conforming, disconnect the power supply to the control unit and check the relevant connections of the cables. Other
useful information is contained in Chapters 9.9 and 10.
13
Fuse 1.6A T
Flash
ECSbus
Stop
Aerial
SbS
OGI
L4
SbS
L1
eria
4
b
14
led
SAFE
TX RX
15
5.3 - MEMORISATION OF CONNECTED DEVICES
On completion of the preliminary checks (Par. 5.2), the control unit must be made to recognise the devices connected on the ECSBus and Stop
terminals.
01. On the control unit (Fig. 16) press and hold button P2 for at least 3 seconds then release it.
02. Wait a few seconds for the control unit to complete the device learning phase.
03. On the control unit (Fig. 17), at the end of the recognition procedure, the Stop led must remain lit and led L2 must turn off. The ECSBus led
must ash once each second. If led L2 ashes = error (see Chapter 10).
Whenever a photocell is added to or removed from the system, the recognition procedure for the connected devices must be repeated.
Fuse 1.6A T
Flash
ECSbus
Stop
Aerial
SbS
P4
L4 L3 L2
P3 P2
SbS
L1
P1
er
a
b
12
