10 – ENGLISH

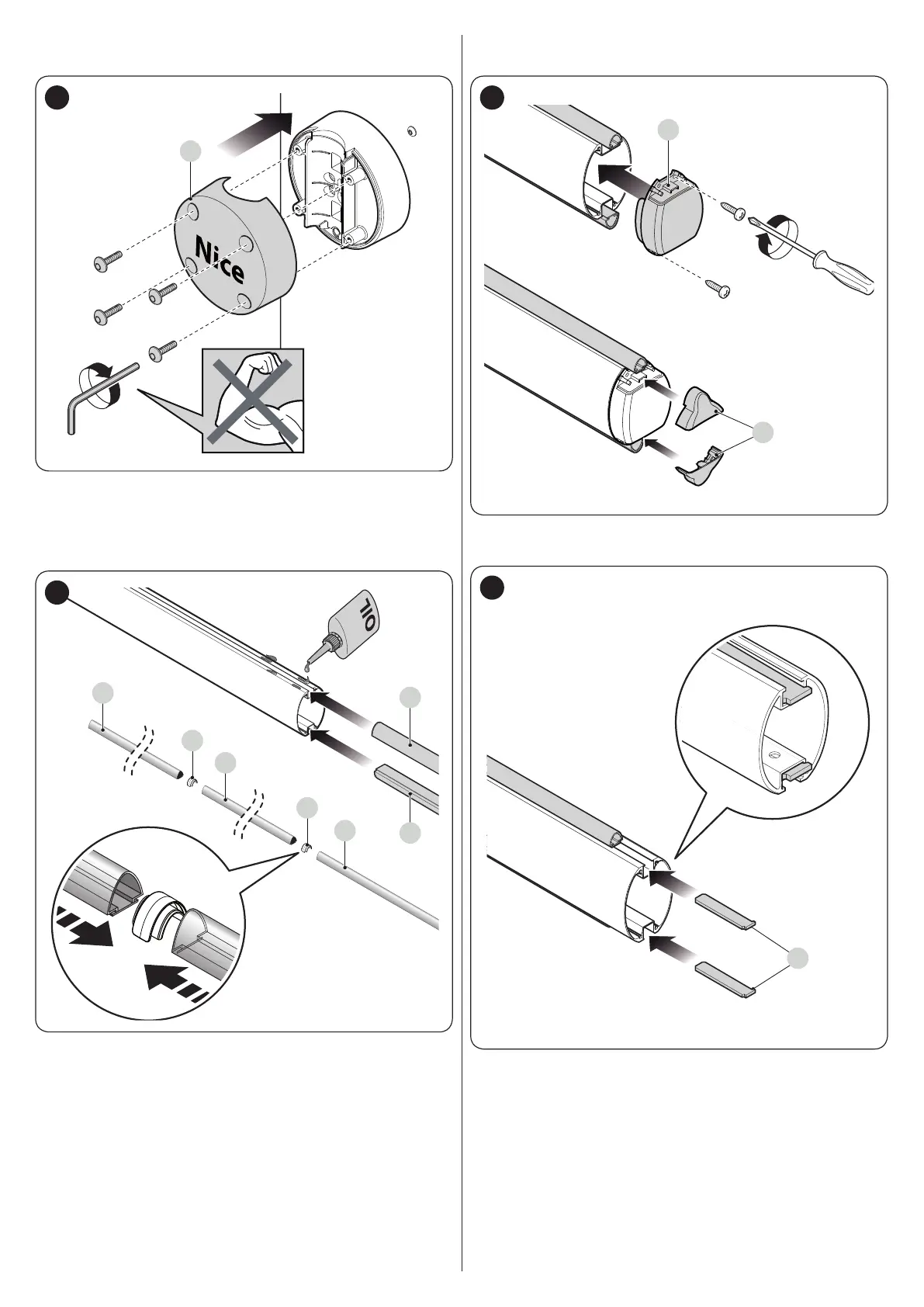

4. position the cover (C) of the support and fasten it with the
6 screws provided; leave the screws loose
C
18
5. lightly oil the aluminium rail on both sides
6. along the entire length of the boom, insert the rubber im-
pact protectors through the slots (D) alternating them with
the relevant joints (E); the rubber protector can protrude
roughly 1 cm from the end of the boom
D
D
D
E
E
D
D
19
7. put on the boom cap (F) and secure it with the two screws
8. position and t together the two rubber protector caps (G)
F
G
20
9. insert, through the opposite end with respect to the cap,
the boom supporting plates (H)
H
21
