4 Electrical installation
This chapter covers information relevant to the electrical installation of the product. This includes but is not limited to:
• Supply, motor and ground connections
• Torque settings
• Cable sizes
• Fuse & MCB selection
• Supply requirements and optional line reactor selection
• Ground leakage, touch currents and RCDs
• Electromagnetic compatibility (EMC)
• Control connections
4.1 Power connections
4.1.1 Single phase supply connections

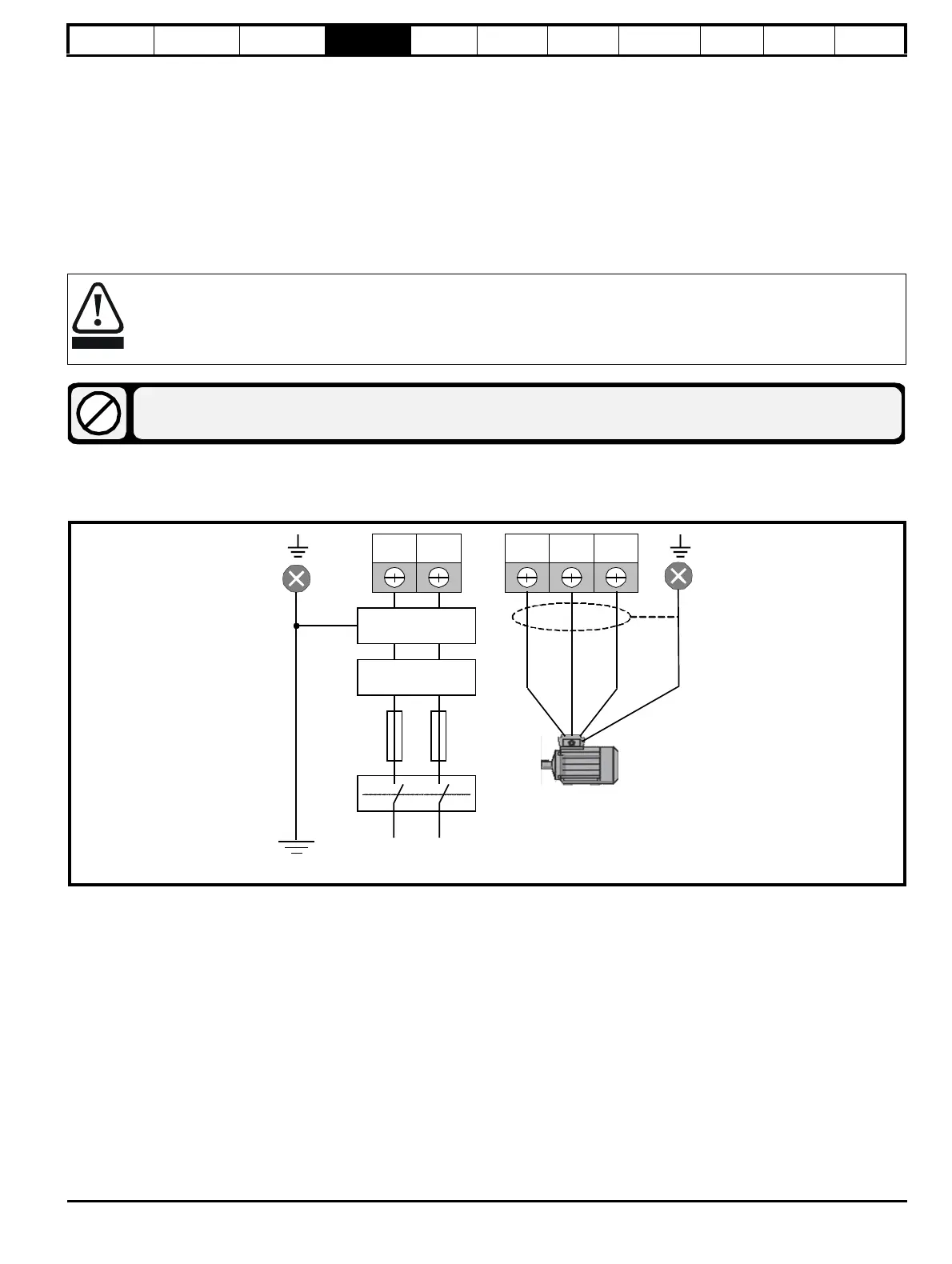

Figure 4-1 Single phase power connections
For dual-rated drives (S100-xxDxx), single phase connections should be made to L1 and L2.
Before proceeding ensure all of the warnings in section 1 Safety information. have been read and are understood.
WARNING
Tool Tip: A 3 mm (1/8 in) flat-blade screwdriver can be used on all terminals.
L1 L2 U V W
Op onal EMC Filterti
Op onal Line Reactorti
Live Neutral
Ground
Fuses /
MCB
Supply
