14 Commander S100 User Guide

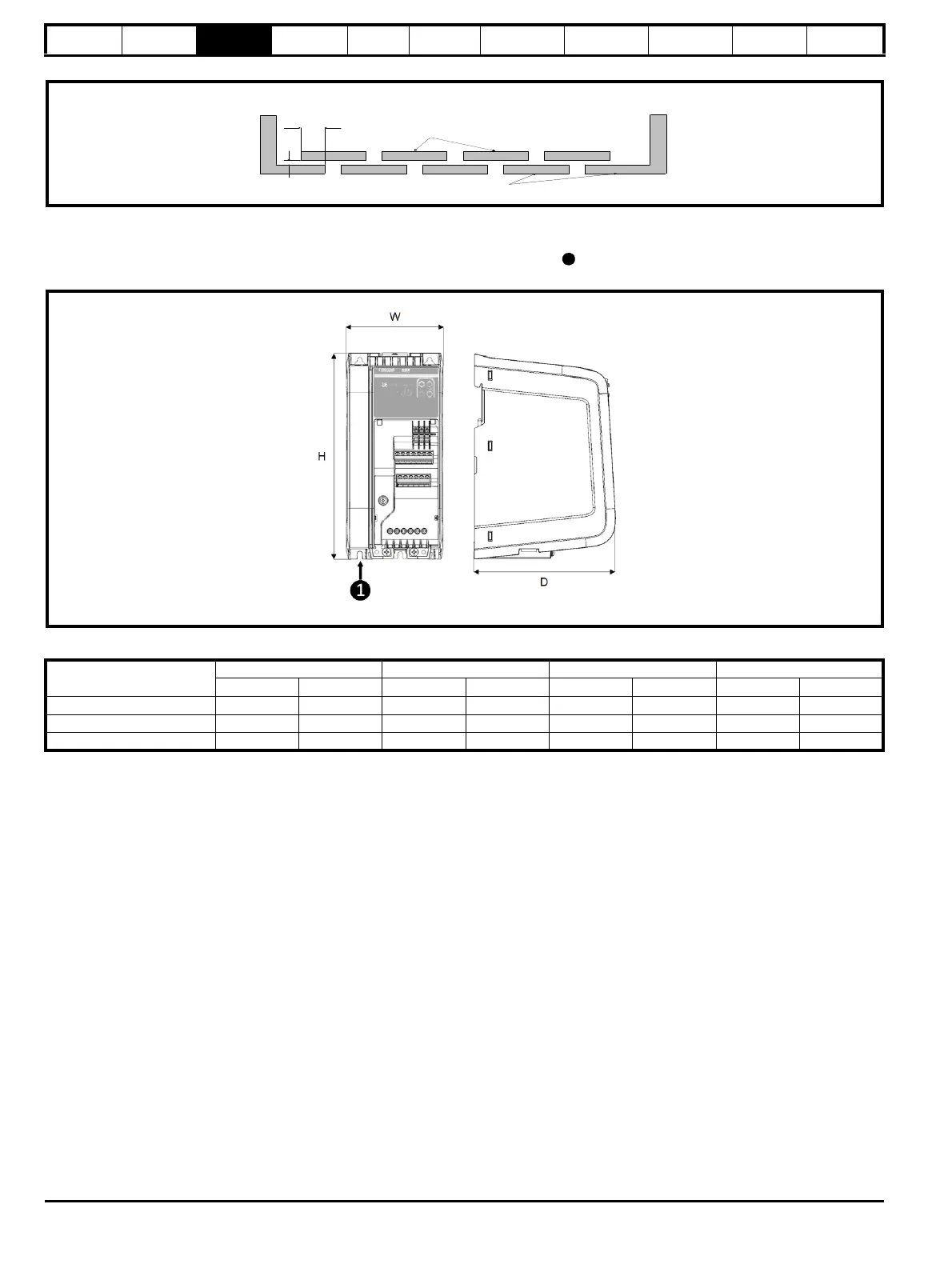

Figure 3-2 Fire enclosure baffle construction
3.2 Drive dimensions and mounting
Figure 3-3 below shows the overall dimensions of the drive. The mounting location marked is only found on S100-03 drive.
Figure 3-3 Overall dimensions
Table 3-1 Overall dimensions
Not less
th a n 2 X
B a ffle p la te s (m ay b e
a b o v e o r b e lo w b o tto m
of enclosure)
X
B o tto m o f fire
enclosure
Not less
than 2
times ‘X’
Baffle plates (may be above or
below bottom of enclosure)
Bottom of fire enclosure
X
1
Model Number
HWDWeight
mm in mm in mm in kg lb
S100-01 156 6.14 68 2.70 130 5.12 0.55 1.21
S100-02 192 7.56 68 2.70 132 5.20 0.73 1.61
S100-03 192 7.56 90 3.54 132 5.20 0.84 1.85
