NE200/300 Series Drive User Manual
146 Chapter 6 Parameter description
2: AI2
All the parameters from F6.11 to F6.25 are nonlinear setting points for
the AI2 channel, as shown in Fig.6-17. The AI2 filter time F6.20 is
taken. And AI1 setting points F6.16~6.20 are taken as 0.00~10.00V
input and its corresponding 0.00~100.00%.setup value. And pulse
input setting points are taken as 0.00~50.00 kHz and its
corresponding 0.00~100.00% setup value.
3: Pulse input
All the parameters from F6.11 to F6.25 are nonlinear setting points for
the PULSE input channel, as shown in Fig.6-17. The pulse filter time
F6.25 is taken. And AI1 setting points F6.16~6.20 are taken as
0.00~10.00V input and its corresponding 0.00~100.00%.setup value.
AI2 setting points F6.16~6.20 are taken as 0.00~10.00V input and its
corresponding 0.00~100.00%.setup value.

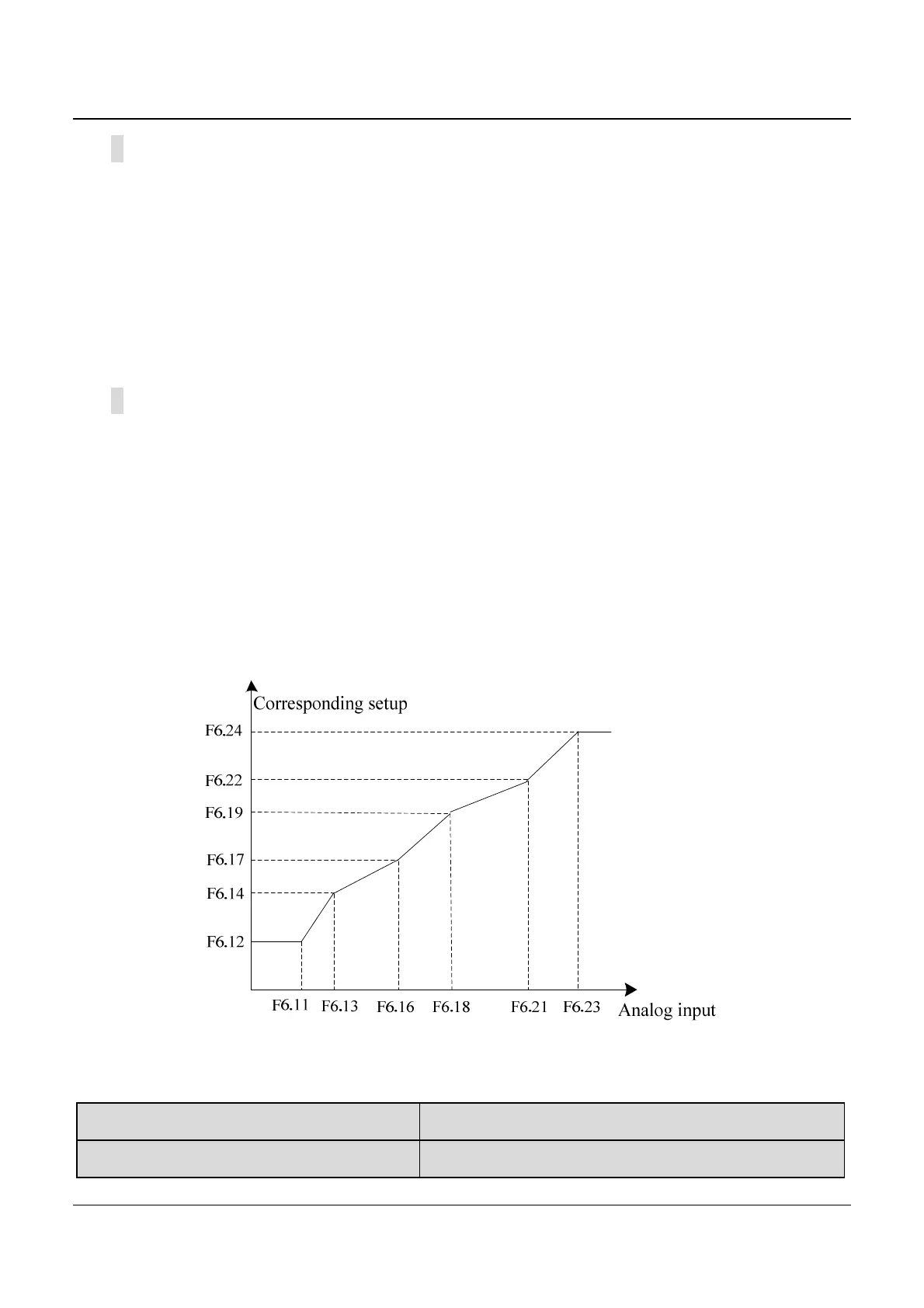

Fig.6-17 Analog input non-linear curve
F6.11 AI1 minimum input Range: 0.0~F6.13【0.00V】
F6.12 AI1 minimum Input Range: -200%~ 200.0%【0.0%】
