Nikon D60 - SB Lower Case Unit; SB Release Plate Unit

- Ｄ 11 ･ -
logo_Q0650_forGraphic
071004_Gdesign_ito
VBA21001-R.3753.A
・

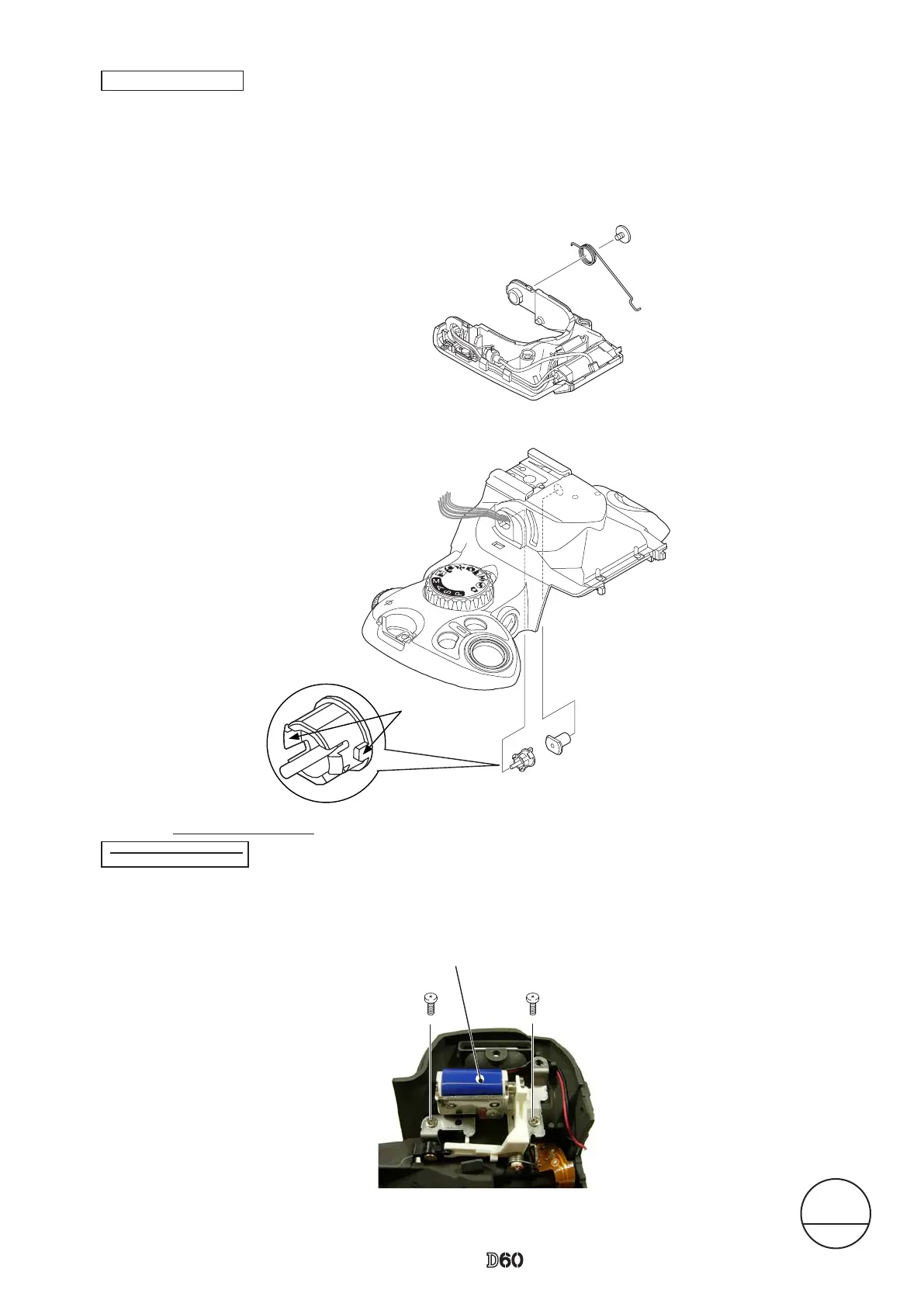

Remove [#308], while releasing the two hooks.
・
While pressing the SB case rotating shaft (#306), take out the screw (#733) and remove the SB-up spring (#305).
・
While watching the wires, remove the SB lower case unit (#B2302).
AUT
O
Hook×2
#308
#306
#733
#305
#B2302
・
Take out the two screws (#607), and remove the SB release base unit (#B2455).
#607×2
#B2455
SB lower case unit
SB lower case unit
△
(Revision)SB release plate unit
